2008 Kawasaki KX™250F Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 2008 Kawasaki KX™250F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

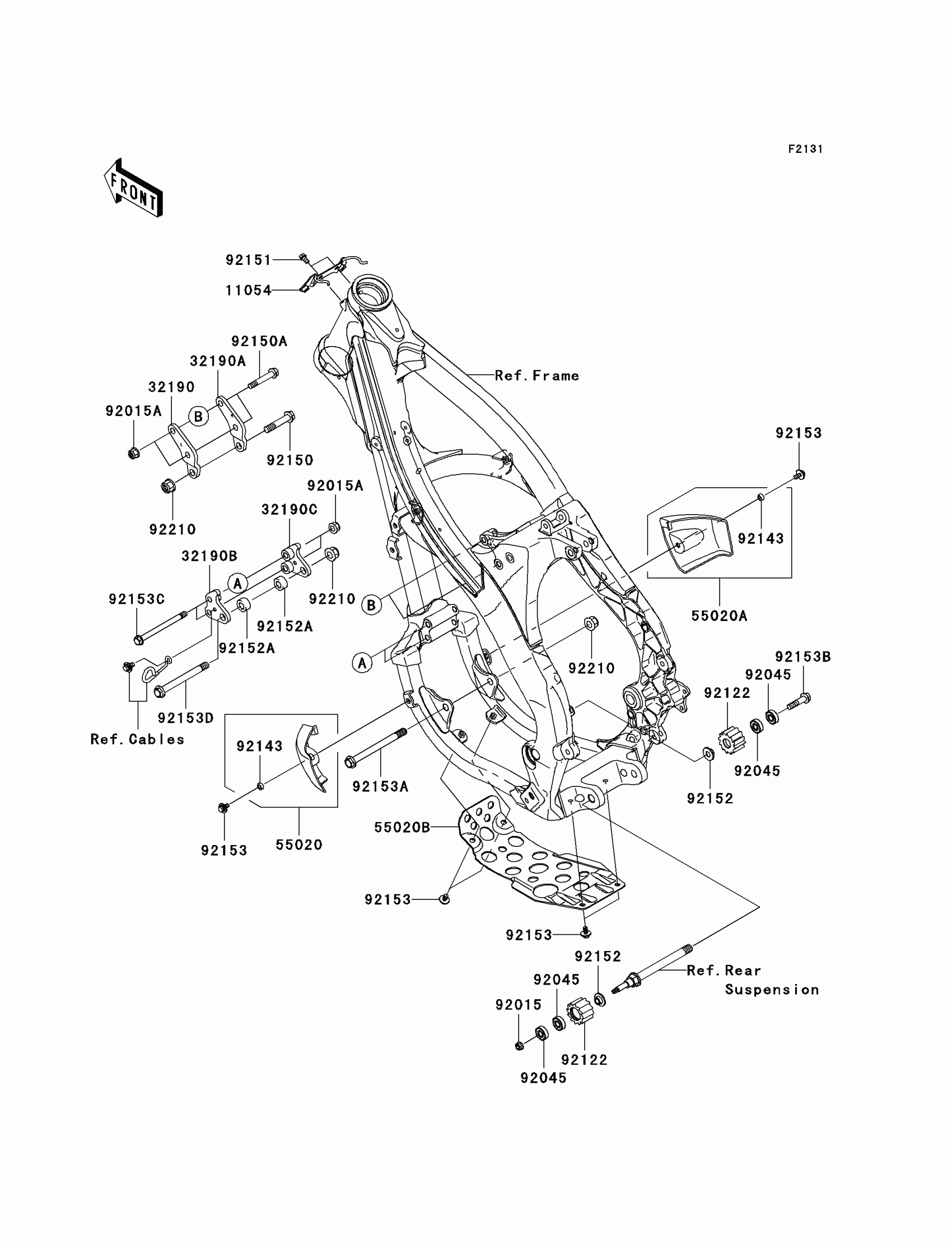

2008 Kawasaki KX™250F Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11054

BRACKET,IGNITER

11054-0241

1

$21.69

In stock

32190

BRACKET-ENGINE,UPP,LH

32190-0172

1
Out of stock

32190A

BRACKET-ENGINE,UPP,RH

32190-0173

1
Out of stock

32190B

BRACKET-ENGINE,FR,LH

32190-0363

1
Out of stock

32190C

BRACKET-ENGINE,FR,RH

32190-0364

1
Out of stock

55020

GUARD,ENGINE,FR,LH

55020-0175

1

$34.09

In stock

55020A

GUARD,ENGINE,FR,RH

55020-0176

1

$34.09

In stock

55020B

GUARD,ENGINE,LWR

55020-0257

1

$36.26

In stock

92015

NUT,LOCK,FLANGED,6MM

92015-1339

1
Out of stock

92015A

NUT,8MM

92015-1432

1
Out of stock

92045

BEARING-BALL,608LLU/2A

92045-0060

1
Out of stock

92122

ROLLER,CHAIN GUIDE

92122-0016

1
Out of stock

92143

COLLAR

92143-1307

1
Out of stock

92150

BOLT,FLANGED,10X49

92150-1170

1
Out of stock

92150A

BOLT,FLANGED,8X50

92150-1214

1
Out of stock

92151

BOLT,FLANGED,6X10

92151-1233

1
Out of stock

92152

COLLAR

92152-0459

1
Out of stock

92152A

COLLAR,10.2X20X10

92152-0595

1
Out of stock

92153

BOLT,6X12

92153-0503

1
Out of stock

92153A

BOLT,FLANGED,10X120

92153-1359

1
Out of stock

92153B

BOLT,FLANGED,8X35

92153-1652

1
Out of stock

92153C

BOLT,FLANGED,8X102

92153-1916

1
Out of stock

92153D

BOLT,FLANGED,10X104

92153-1917

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1080

1
Out of stock
