2017 Kawasaki KX™250F Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 2017 Kawasaki KX™250F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

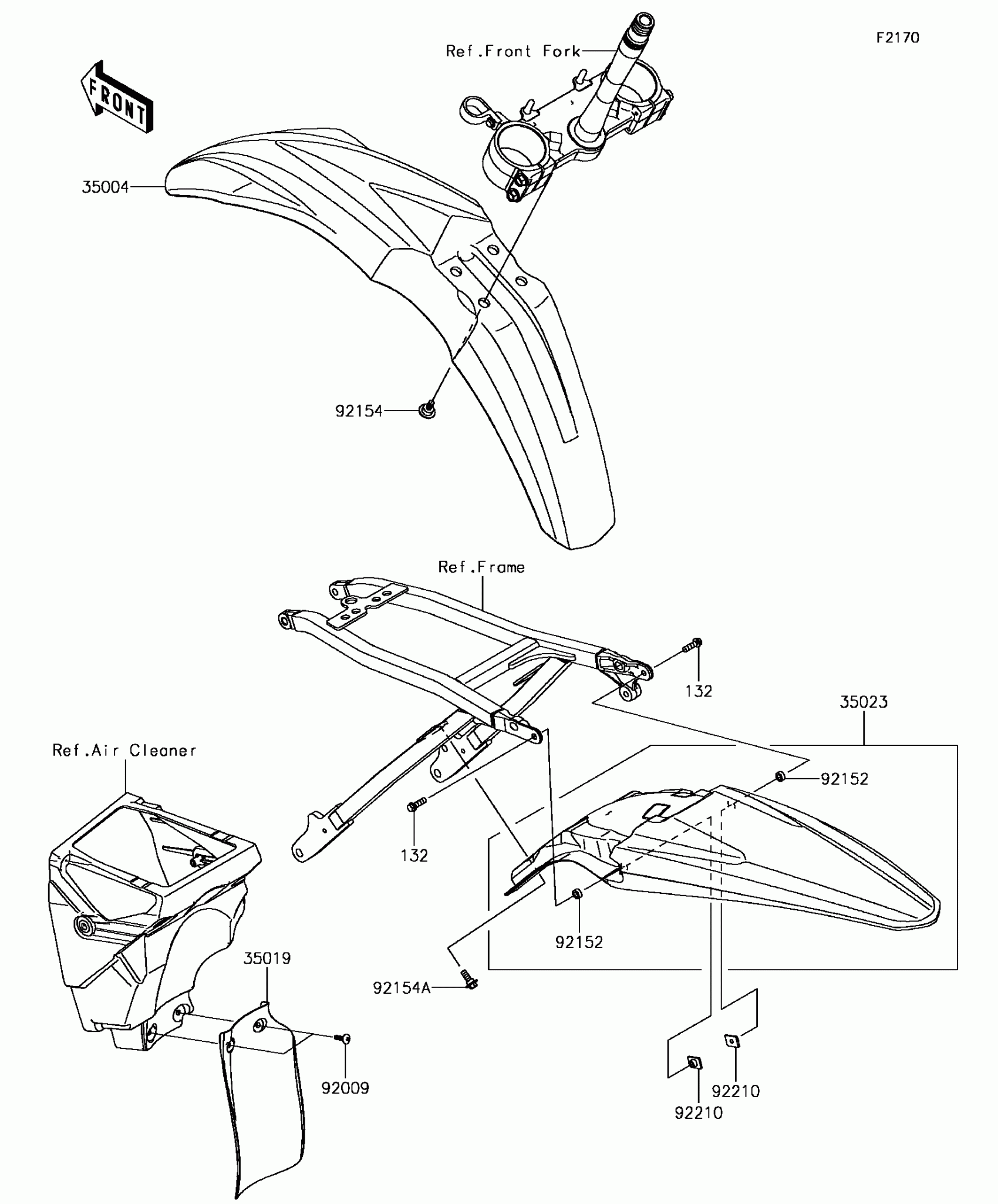

2017 Kawasaki KX™250F Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$2.05

In stock

35004

FENDER-FRONT,L.GREEN

35004-0350-290

1
Out of stock

35019

FLAP

35019-0602

1
Out of stock

35023

FENDER-REAR,L.GREEN

35023-0415-290

1
Out of stock

92009

SCREW,TAPPING,5X20

92009-1993

1
Out of stock

92152

COLLAR,6.5X11X5

92152-2223

1
Out of stock

92154

BOLT,6X18.5

92154-0972

1
Out of stock

92154A

BOLT,FLANGED,6X28

92154-1739

1
Out of stock

92210

NUT,PLATE,6MM

92210-1352

1
Out of stock
