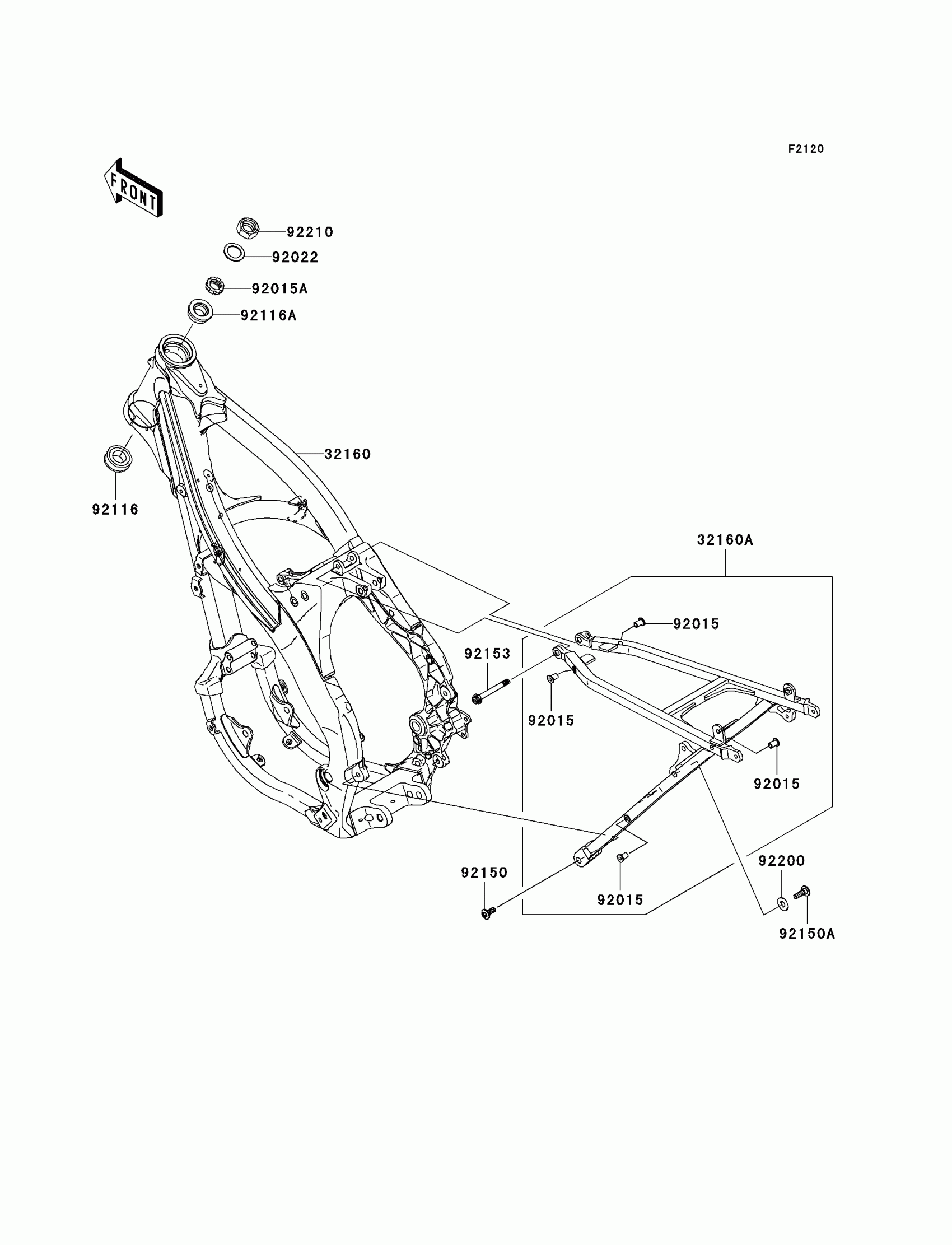

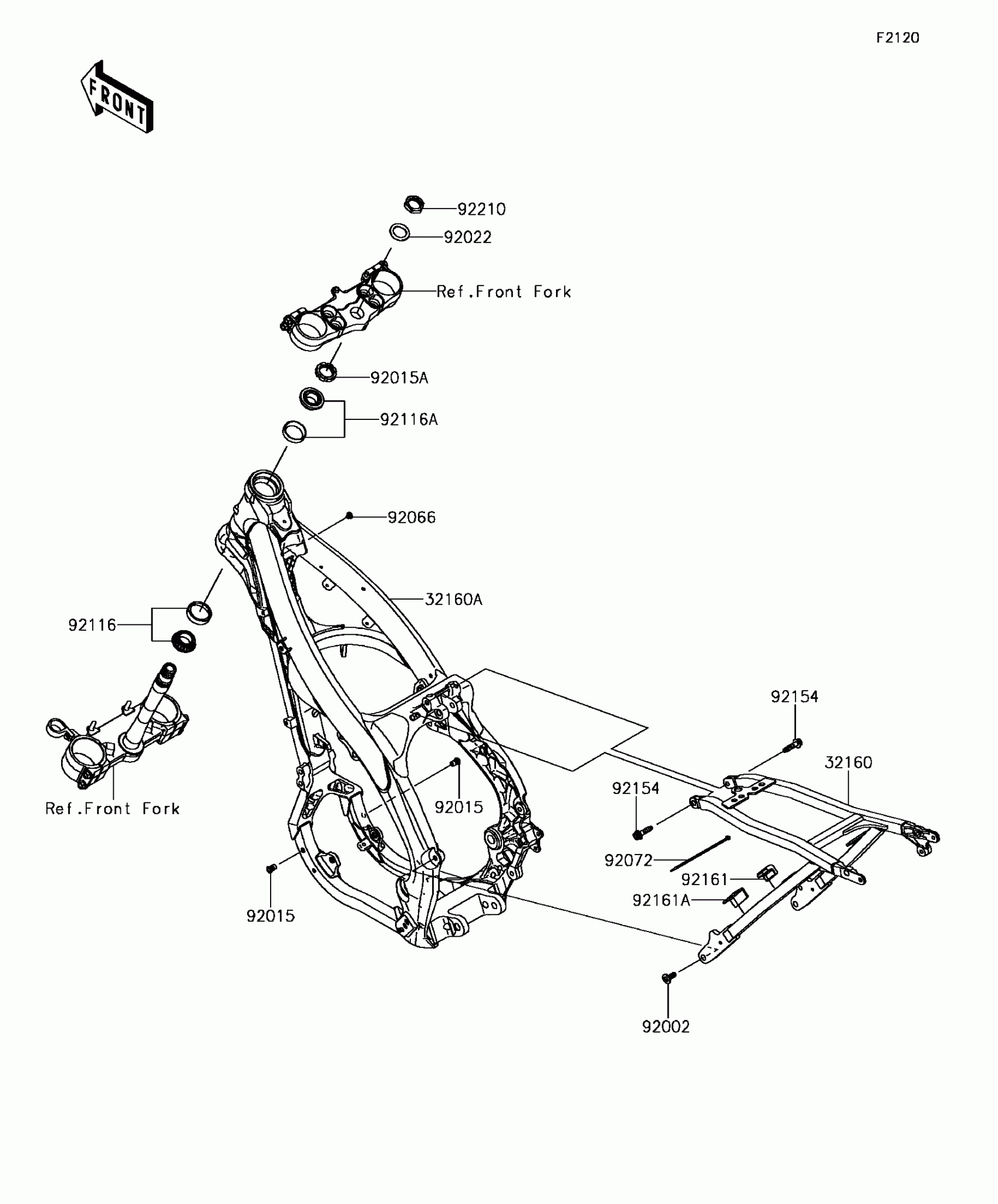

Kawasaki KX™250F Frame Diagram

Description

Price

32160

FRAME-COMP,RR

32160-0779

$666.12

32160A

FRAME-COMP,MAIN

32160-0824

$2,540.78

92002

BOLT,SOCKET,8X20

92002-1736

$6.57

92015

NUT,POP,6MM,L=16.5

92015-1792

$4.69

92015A

NUT,STEERING STEM,28MM

92015-1861

$18.15

92022

WASHER,25X36X2.3

92022-250

$5.00

92066

PLUG

92066-1547

$3.62

92072

BAND,L=148

92072-3768

$3.92

92116

BEARING-ROLLER,HI-CAP32006JRRS

92116-1069

$64.45

92116A

BEARING-ROLLER,HI-CAP320/28JRR

92116-1076

$51.63

92154

BOLT,SOCKET,8X32

92154-0024

$5.59

92161

DAMPER

92161-1882

$9.76

92161A

DAMPER,L=50

92161-1904

$19.64

92210

NUT,24MM

92210-0066

$11.77
