Description

Price

120

BOLT-SOCKET,6X12

120P0612

$1.60

120A

BOLT-SOCKET,6X25

120P0625

$1.92

132

BOLT-FLANGED-SMALL,6X12

132L0612

$1.92

11004

GASKET-HEAD

11004-0066

Unavailable

11008

HEAD-COMP-CYLINDER

11008-0116

$948.58

13234

SHAFT-COMP,DECOMP

13234-0009

$31.98

13271

PLATE

13271-0675

$3.39

13280

HOLDER,DECOMP

13280-0038

$7.60

16065

HOLDER-CARBURETOR

16065-0049

$19.72

49002

GUIDE-VALVE

49002-0003

Unavailable

49002A

GUIDE-VALVE

49002-0016

Unavailable

92004

STUD,8X22

92004-0025

$3.87

92037

CLAMP

92037-1523

$12.35

92042

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92043

PIN,10.1X12X14

92043-4009

$6.22

92049

SEAL-OIL

92049-1196

$6.22

92066

PLUG,4X18

92066-0024

$4.52

92066A

PLUG,OIL LINE,7.2X8

92066-1012

$6.51

92066B

PLUG,10X16.6

92066-3777

$5.54

92145

SPRING

92145-0048

$3.69

92153

BOLT,6X38

92153-0338

$3.32

92153A

BOLT,6X45

92153-0339

$3.32

92153B

BOLT,10X122

92153-0341

$14.34

92170

CLAMP

92170-1514

$4.31

92171

CLAMP

92171-0925

$5.70

92200

WASHER,10.5X19X2.3

92200-1339

$4.13

99999

KIT.,MANUAL DECOMP

99999-0023

$44.39

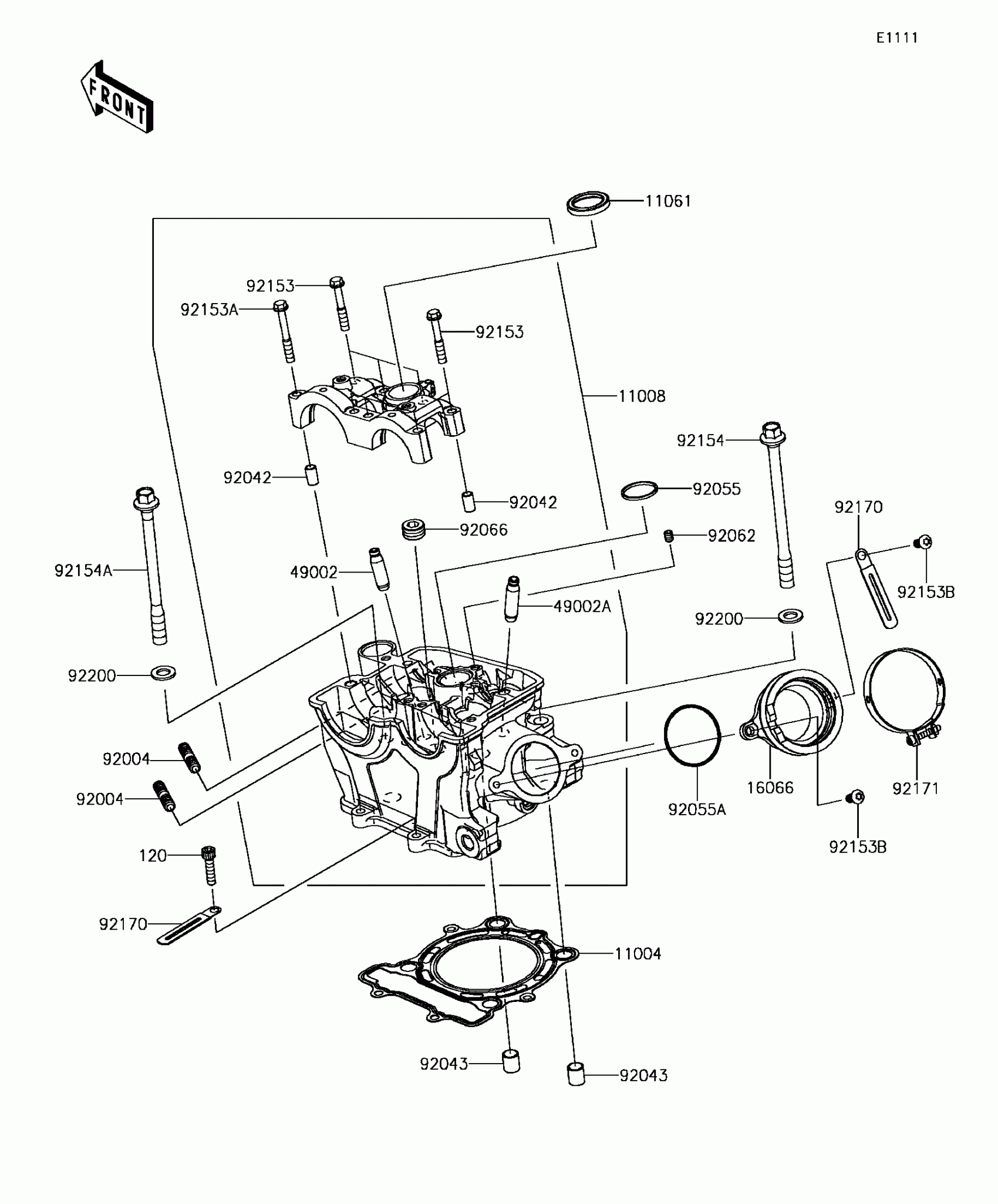

Kawasaki KX™250F Cylinder Head Diagram

BOLT-SOCKET,6X12

BOLT-SOCKET,6X25

BOLT-FLANGED-SMALL,6X12

GASKET-HEAD

HEAD-COMP-CYLINDER

SHAFT-COMP,DECOMP

PLATE

HOLDER,DECOMP

HOLDER-CARBURETOR

GUIDE-VALVE

GUIDE-VALVE

STUD,8X22

CLAMP

PIN,DOWEL,6.3X8X14

PIN,10.1X12X14

SEAL-OIL

PLUG,4X18

PLUG,OIL LINE,7.2X8

PLUG,10X16.6

SPRING

BOLT,6X38

BOLT,6X45

BOLT,10X122

CLAMP

CLAMP

WASHER,10.5X19X2.3

KIT.,MANUAL DECOMP
