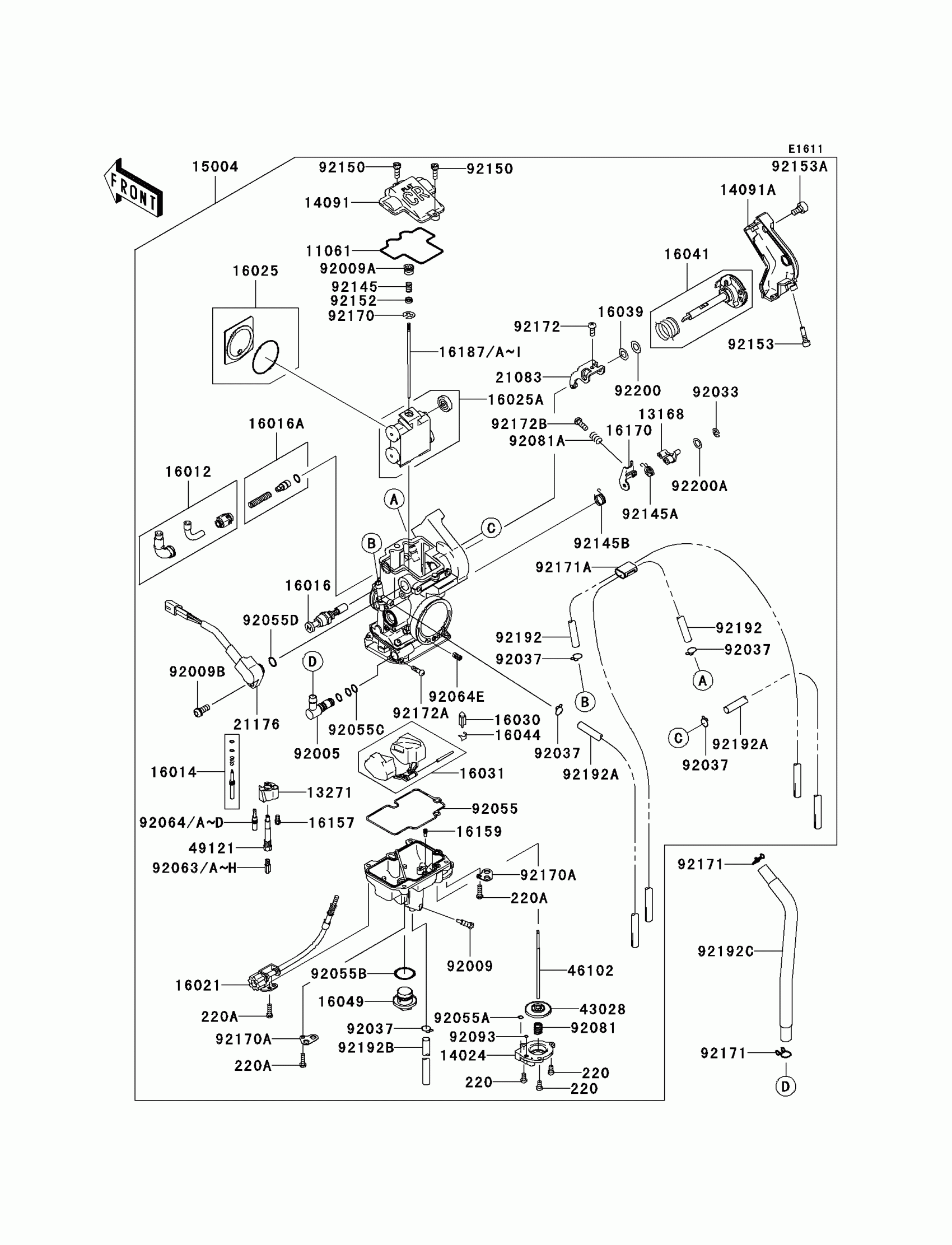

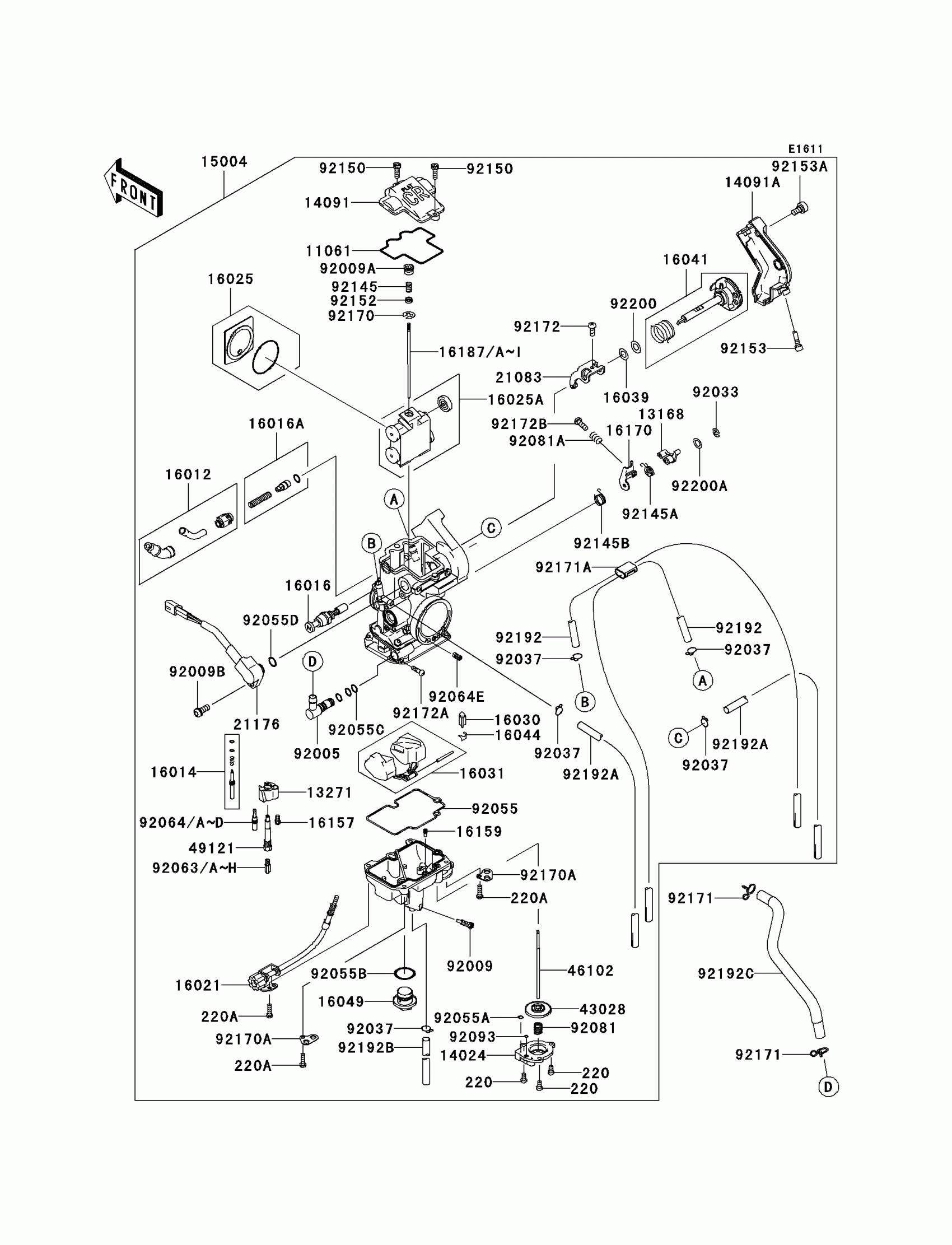

Kawasaki KX™250F Carburetor Diagram

#

Description
Price

11061

GASKET

11061-0077

$11.66

13168

LEVER

13168-0051

$23.08

13271

PLATE

13271-0241

$16.59

14024

COVER

14024-1971

$55.25

14091

COVER,TOP

14091-0208

$34.08

14091A

COVER

14091-0209

$54.42

15004

CARBURETOR-ASSY,FCR-37

15004-0010

$1,103.24

16012

CAP-STARTER PLUNGER

16012-0002

$21.49

16014

SCREW-PILOT AIR

16014-0004

$17.80

16016

PLUNGER

16016-0009

$41.61

16016A

PLUNGER

16016-0017

$16.72

16021

SCREW-THROTTLE STOP

16021-0005

$18.88

16025

VALVE-THROTTLE

16025-0009

$73.50

16025A

VALVE-THROTTLE

16025-0013

$298.94

16030

VALVE-FLOAT

16030-1057

$47.13

16031

FLOAT

16031-1100

$58.03

16039

WASHER

16039-0230

$2.12

16041

SHAFT-CARBURETOR

16041-0004

$160.32

16044

CLAMP,FLOAT VALVE

16044-007

$7.91

16049

COVER-MAIN JET

16049-1051

$33.28

16157

JET-STARTER,#68

16157-0001

$24.89

16159

JET-POWER,#55

16159-1054

$15.66

16170

LINK-ASSY

16170-0003

$16.44

16187

NEEDLE-JET,NHJR

16187-0238

Unavailable

16187A

NEEDLE-JET,NHJS

16187-0239

Unavailable

16187B

NEEDLE-JET,NHJT

16187-0240

$41.24

16187C

NEEDLE-JET,NHJU

16187-0241

Unavailable

16187D

NEEDLE-JET,NHJV

16187-0242

Unavailable

16187E

NEEDLE-JET,NHKR

16187-0262

Unavailable

16187F

NEEDLE-JET,NHKS

16187-0263

Unavailable

16187G

NEEDLE-JET,NHKT

16187-0264

Unavailable

16187H

NEEDLE-JET,NHKU

16187-0265

Unavailable

16187I

NEEDLE-JET,NHKV

16187-0266

Unavailable

21083

ARM

21083-0035

$42.34

21176

SENSOR,THROTTLE

21176-0016

$95.16

43028

DIAPHRAGM

43028-0001

$22.29

46102

ROD

46102-0033

$25.16

49121

NOZZLE-MAIN

49121-0001

$37.58

92005

FITTING

92005-0016

$24.93

92009

SCREW,DRAIN,M6X0.75

92009-1551

$9.91

92009A

SCREW

92009-1876

$11.39

92009B

SCREW,THROTTLE SENSOR

92009-1981

$2.41

92033

RING-SNAP

92033-0018

$2.92

92037

CLAMP,TUBE

92037-1396

$5.52

92055

RING-O,FLOAT CHAMBER

92055-0066

$18.29

92055A

RING-O

92055-1004

$4.31

92055B

RING-O,MAIN JET COVER

92055-1167

$9.51

92055C

RING-O

92055-1223

$5.52

92055D

RING-O

92055-1671

$3.73

92063

JET-MAIN,#172

92063-1373

Unavailable

92063A

JET-MAIN,#175

92063-1374

Unavailable

92063B

JET-MAIN,#178

92063-1375

Unavailable

92063C

JET-MAIN,#180

92063-1376

Unavailable

92063D

JET-MAIN,#182

92063-1377

$16.07

92063E

JET-MAIN,#185

92063-1378

Unavailable

92063F

JET-MAIN,#188

92063-1379

Unavailable

92063G

JET-MAIN,#190

92063-1380

Unavailable

92063H

JET-MAIN,#192

92063-1381

Unavailable

92064

JET-PILOT,#35

92064-1138

Unavailable

92064A

JET-PILOT,#38

92064-1139

Unavailable

92064B

JET-PILOT,#40

92064-1140

$17.03

92064C

JET-PILOT,#42

92064-1141

Unavailable

92064D

JET-PILOT,#45

92064-1142

Unavailable

220

SCREW-PAN-CROS,4X8

220D0408

$0.68

220A

SCREW-PAN-CROS,4X14

220D0414

$4.60

92064E

JET-PILOT,#100

92064-1160

$14.92

92081

SPRING,DIAPHRAGM

92081-1092

$11.61

92081A

SPRING

92081-1620

$4.96

92093

SEAL-"U"RING

92093-1046

$6.51

92145

SPRING

92145-0164

$17.22

92145A

SPRING

92145-0166

$17.22

92145B

SPRING

92145-0167

$17.22

92150

BOLT,SOCKET,4X12

92150-1426

$6.22

92152

COLLAR

92152-0141

$9.51

92153

BOLT

92153-0638

$6.27

92153A

BOLT

92153-0639

$5.59

92170

CLAMP,JET NEEDLE

92170-1204

$3.94

92170A

CLAMP

92170-1582

$4.18

92171

CLAMP

92171-0149

$3.73

92171A

CLAMP

92171-0246

$6.26

92172

SCREW

92172-0127

$5.59

92172A

SCREW

92172-0128

$5.59

92172B

SCREW

92172-0129

$5.59

92192

TUBE

92192-0083

$7.60

92192A

TUBE

92192-0084

$7.60

92192B

TUBE

92192-0085

$7.60

92192C

TUBE,FUEL,L=235

92192-0332

$22.55

92200

WASHER

92200-0107

$2.95

92200A

WASHER,LINK ARM,STAINLESS

92200-1434

$2.41
