Description

Price

11065

CAP

11065-0087

$18.40

13107

SHAFT,WATER PUMP

13107-0916

$33.36

16142

COVER-PUMP,WATER

16142-0786

$121.95

59051

GEAR-SPUR,WATER PUMP

59051-0061

$48.58

59256

IMPELLER

59256-0024

$35.06

59256A

IMPELLER

59256-1065

$36.12

92005

FITTING,WATER PUMP

92005-1498

$64.66

92022

WASHER,5.2X13X1

92022-1380

$4.31

92022A

WASHER,6X12.8X1.2

92022-1827

$4.69

92022B

WASHER,6.2X11X1

92022-304

$3.65

92043

PIN,DOWEL,8X10

92043-1302

$1.03

92055

RING-O,18.8X2.4

92055-1308

$5.52

92055A

RING-O,WATER PUMP COVER

92055-1770

$7.11

92055B

RING-O,35.2X1.9

92055-520

$5.31

92154

BOLT,FLANGED,6X8

92154-2962

$0.64

92154A

BOLT,FLANGED,6X14

92154-2964

$0.64

92154B

BOLT,FLANGED,6X18

92154-2976

$0.64

92154C

BOLT,FLANGED,6X30

92154-2977

$0.90

92154D

BOLT,FLANGED,6X65

92154-2980

$1.42

92200

WASHER,6.1X10.0X1.0

92200-0190

$2.61

120

BOLT-SOCKET,6X30

120CA0630

$5.77

130

BOLT-FLANGED,5X14

130CD0514

$2.02

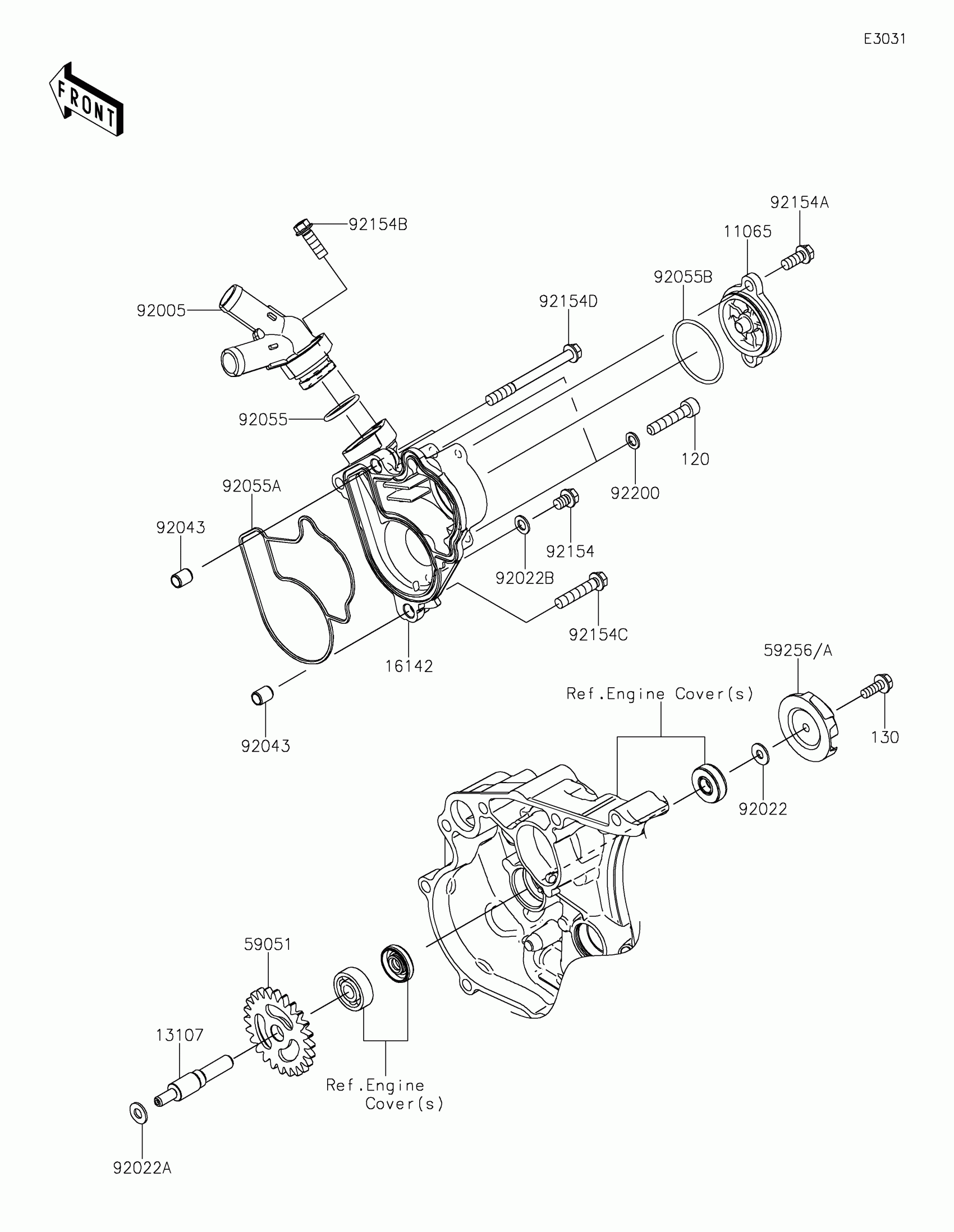

Kawasaki KX™250 Water Pump Diagram

CAP

SHAFT,WATER PUMP

COVER-PUMP,WATER

GEAR-SPUR,WATER PUMP

IMPELLER

IMPELLER

FITTING,WATER PUMP

WASHER,5.2X13X1

WASHER,6X12.8X1.2

WASHER,6.2X11X1

PIN,DOWEL,8X10

RING-O,18.8X2.4

RING-O,WATER PUMP COVER

RING-O,35.2X1.9

BOLT,FLANGED,6X8

BOLT,FLANGED,6X14

BOLT,FLANGED,6X18

BOLT,FLANGED,6X30

BOLT,FLANGED,6X65

WASHER,6.1X10.0X1.0

BOLT-SOCKET,6X30

BOLT-FLANGED,5X14
