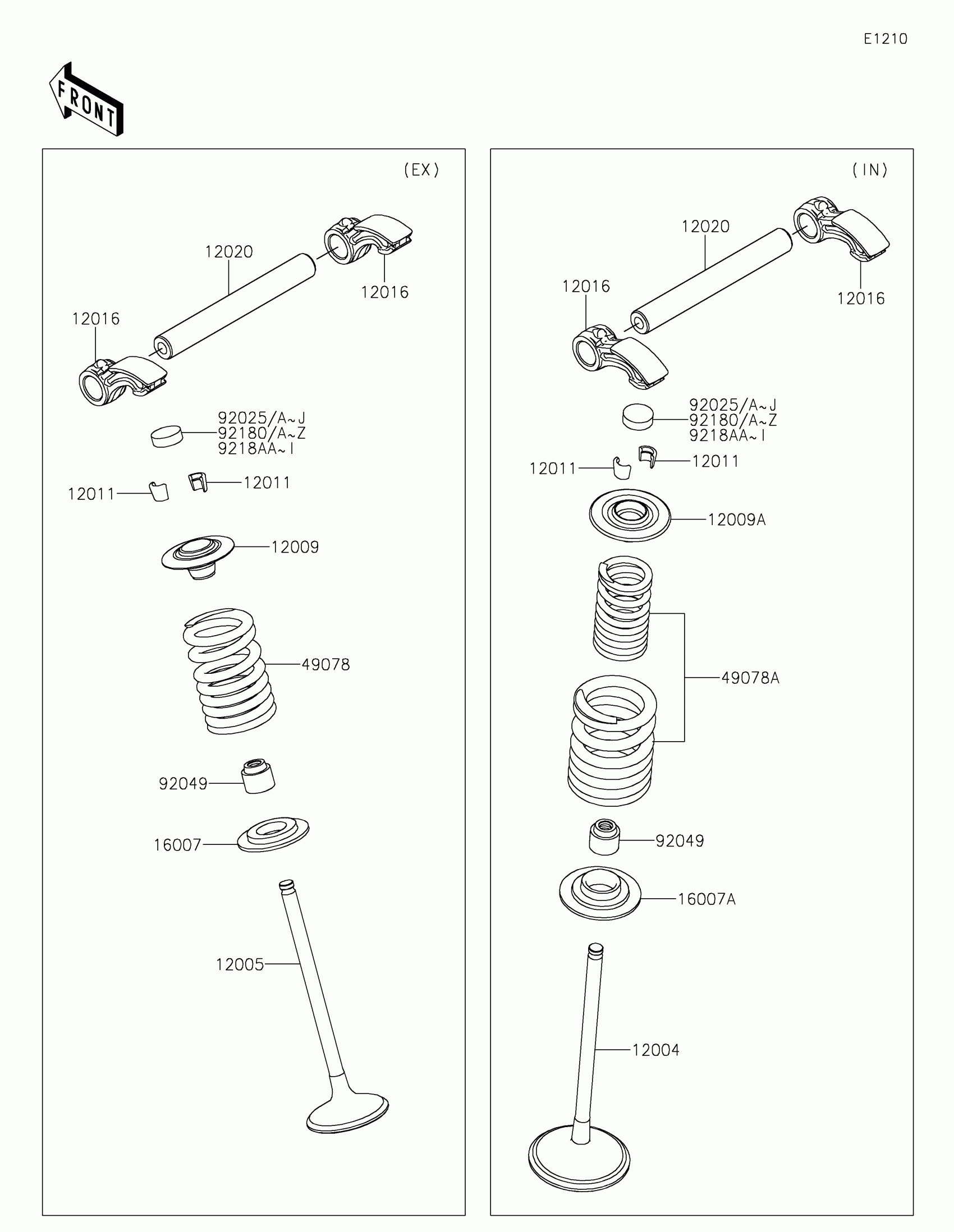

Kawasaki KX™250 Valve(s) Diagram
#
12004
VALVE-INTAKE
12004-0783
$131.99
12005
VALVE-EXHAUST
12005-0807
$144.28
12009
RETAINER-VALVE SPRING
12009-0040
$23.51
12009A
RETAINER-VALVE SPRING
12009-0047
$16.25
12011
COLLET
12011-1053
$5.46
12016
ARM-ROCKER
12016-0726
$101.92
12020
SHAFT-ROCKER,EXHAUST
12020-0025
$25.37
16007
SEAT-SPRING
16007-0029
$3.35
16007A
SEAT-SPRING
16007-0760
$8.44
49078
SPRING-ENGINE VALVE,EXHAUST
49078-0729
$17.14
49078A
SPRING-ENGINE VALVE,INTAKE
49078-0830
$14.57
92025
SHIM,T=2.50
92025-1880
Unavailable
92025A
SHIM,T=2.55
92025-1881
Unavailable
92025B
SHIM,T=2.60
92025-1882
Unavailable
92025C
SHIM,T=2.65
92025-1883
Unavailable
92025D
SHIM,T=2.70
92025-1884
Unavailable
92025E
SHIM,T=2.75
92025-1885
Unavailable
92025F
SHIM,T=2.80
92025-1886
Unavailable
92025G
SHIM,T=2.85
92025-1887
Unavailable
92025H
SHIM,T=2.90
92025-1888
Unavailable
92025I
SHIM,T=2.95
92025-1889
Unavailable
92025J
SHIM,T=3.00
92025-1890
$15.60
92049
SEAL-OIL,VSB 4.3 7.5 5.3 8.3
92049-1349
$11.53
92180
SHIM,T=2.825
92180-0216
Unavailable
92180A
SHIM,T=2.875
92180-0217
Unavailable
92180B
SHIM,T=2.925
92180-0218
Unavailable
92180C
SHIM,T=2.975
92180-0219
Unavailable
92180D
SHIM,T=2.775
92180-1196
Unavailable
92180E
SHIM,T=3.025
92180-1523
Unavailable
92180F
SHIM,T=3.050
92180-1524
Unavailable
92180G
SHIM,T=3.075
92180-1525
Unavailable
92180H
SHIM,T=3.100
92180-1526
Unavailable
92180I
SHIM,T=3.125
92180-1527
Unavailable
92180J
SHIM,T=3.150
92180-1528
Unavailable
92180K
SHIM,T=3.175
92180-1529
Unavailable
92180L
SHIM,T=3.200
92180-1530
Unavailable
92180M
SHIM,T=3.225
92180-1531
Unavailable
92180N
SHIM,T=3.250
92180-1532
Unavailable
92180O
SHIM,T=3.300
92180-1533
Unavailable
92180P
SHIM,T=3.350
92180-1534
Unavailable
92180Q
SHIM,T=3.400
92180-1535
Unavailable
92180R
SHIM,T=3.450
92180-1536
Unavailable
92180S
SHIM,T=3.500
92180-1537
Unavailable
92180T
SHIM,T=2.8125
92180-1566
Unavailable
92180U
SHIM,T=2.8375
92180-1567
Unavailable
92180V
SHIM,T=2.8625
92180-1569
Unavailable
92180W
SHIM,T=2.8875
92180-1570
Unavailable
92180X
SHIM,T=2.9125
92180-1572
Unavailable
92180Y
SHIM,T=2.9375
92180-1573
Unavailable
92180Z
SHIM,T=2.9625
92180-1575
Unavailable
9218AA
SHIM,T=2.9875
92180-1576
Unavailable
9218AB
SHIM,T=3.0125
92180-1578
Unavailable
9218AC
SHIM,T=3.0375
92180-1579
Unavailable
9218AD
SHIM,T=3.0625
92180-1580
Unavailable
9218AE
SHIM,T=3.0875
92180-1581
Unavailable
9218AF
SHIM,T=3.1125
92180-1582
Unavailable
9218AG
SHIM,T=3.1375
92180-1583
Unavailable
9218AH
SHIM,T=3.1625
92180-1584
Unavailable
9218AI
SHIM,T=3.1875
92180-1585
Unavailable
