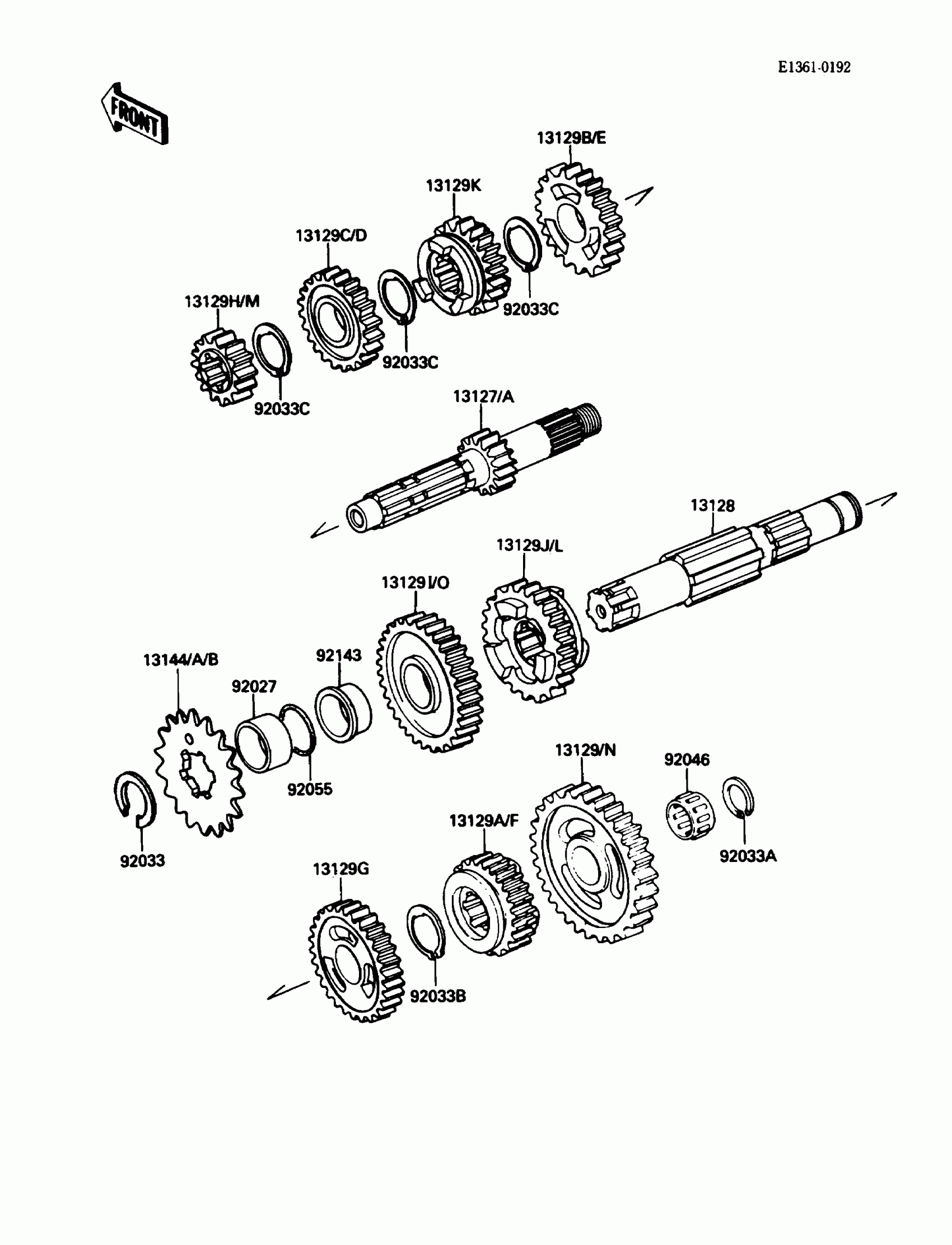

Kawasaki KX™250 Transmission Diagram
#
Description
Price
13127
SHAFT-TRANSMISSION INPUT,15T
13127-1162
Unavailable
13127A
SHAFT-TRANSMISSION INPUT,13T
13127-1172
Unavailable
13128
SHAFT-TRANSMISSION OUTPUT
13128-1151
Unavailable
13129
GEAR,OUTPUT LOW,32T
13129-1160
Unavailable
13129A
GEAR,OUTPUT TOP,24T
13129-1164
Unavailable
13129B
GEAR,INPUT TOP,24T
13129-1206
Unavailable
13129C
GEAR,INPUT 4TH,22T
13129-1393
Unavailable
13129D
GEAR,INPUT 4TH,20T
13129-1526
Unavailable
13129E
GEAR,INPUT TOP,28T
13129-1527
Unavailable
13129F
GEAR,OUTPUT TOP,26T
13129-1529
Unavailable
13129G
GEAR OUTPUT 3RD,25T
13129-1763
Unavailable
13129H
GEAR,INPUT 2ND,16T
13129-1911
Unavailable
13129I
GEAR,OUTPUT 2ND,27T
13129-1912
Unavailable
13129J
GEAR,OUTPUT 4TH,25T
13129-1913
Unavailable
13129K
GEAR,INPUT 3RD,18T
13129-1956
Unavailable
13129L
GEAR,OUTPUT 4TH,22T
13129-1970
Unavailable
13129M
GEAR,INPUT 2ND,17T
13129-1975
Unavailable
13129N
GEAR,OUTPUT LOW,31T
13129-1976
Unavailable
13129O
GEAR,OUTPUT 2ND,30T
13129-1977
Unavailable
13144
SPROCKET-OUTPUT,15T
13144-069
$56.04
13144A
SPROCKET-OUTPUT,14T
13144-1005
$35.93
13144B
SPROCKET-OUTPUT,13T
13144-1027
$34.32
92027
COLLAR,SPROCKET
92027-1963
Unavailable
92033
RING-SNAP,24MM
92033-026
$8.79
92033A
RING-SNAP,18MM
92033-029
$9.82
92033B
RING-SNAP,25MM
92033-1089
$5.54
92033C
RING-SNAP,20MM
92033-1231
$5.54
92046
BEARING-NEEDLE,KT202614
92046-036
$18.16
92055
RING-O
92055-035
$5.00
92143
COLLAR
92143-1157
Unavailable
