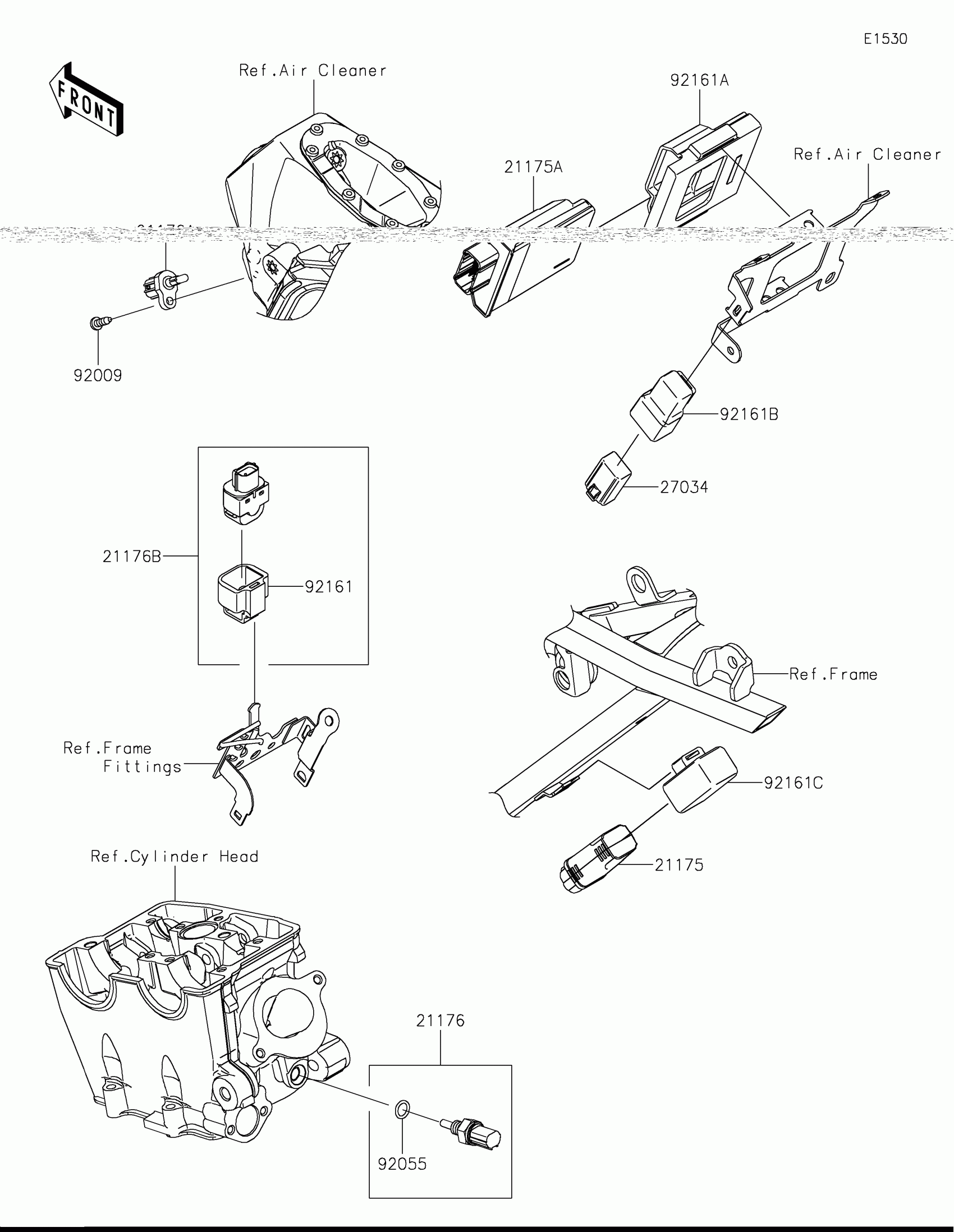

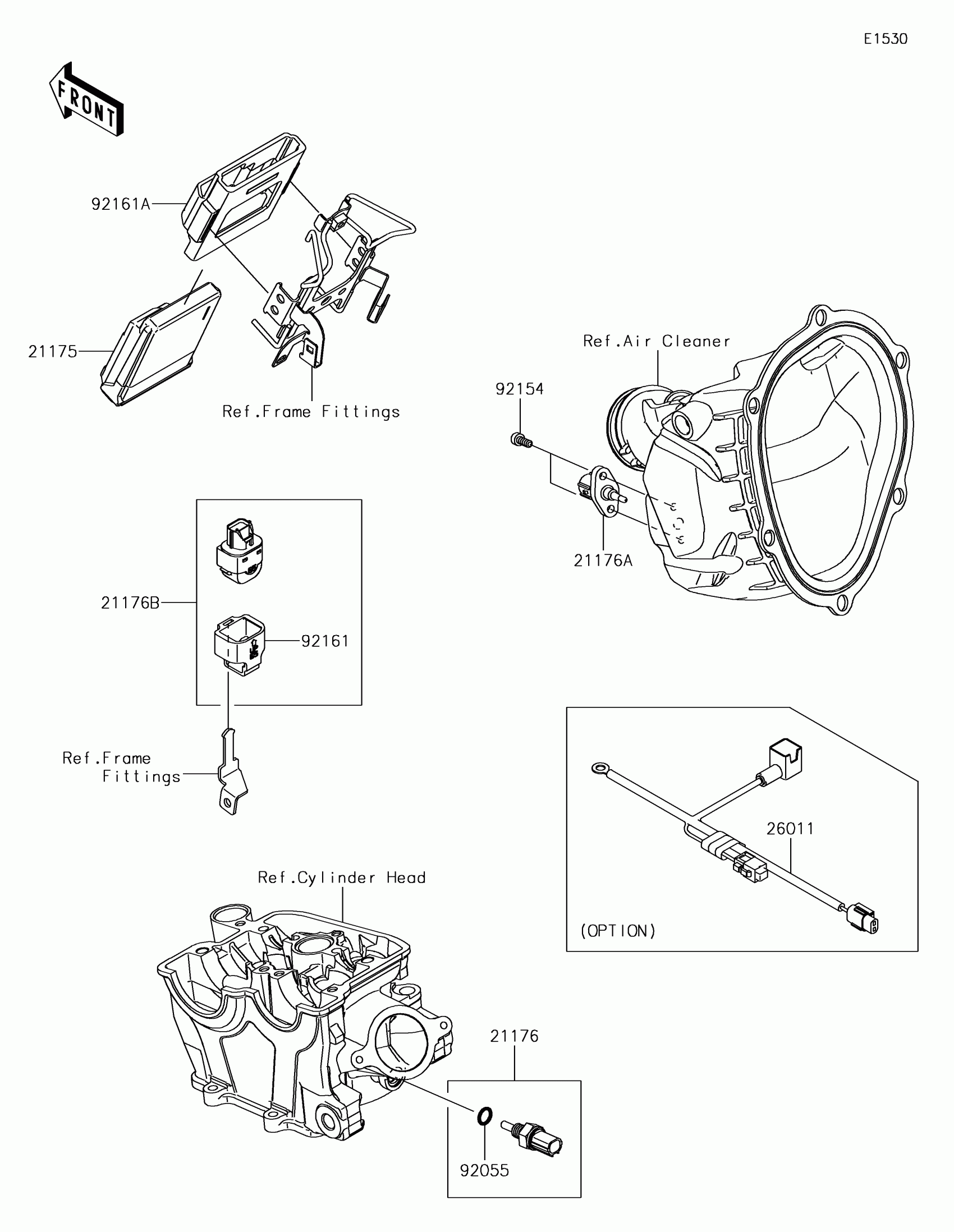

Kawasaki KX™250 Fuel Injection Diagram

Description

Price

21175

CONTROL UNIT-ELECTRONIC,B/T

21175-1933

$735.49

21175A

CONTROL UNIT-ELECTRONIC,FI

21175-2121

$710.66

21176

SENSOR,WATER TEMP

21176-0009

$69.24

21176A

SENSOR,AIR TEMPERATURE

21176-0048

$26.91

21176B

SENSOR,VEHICLE-DOWN

21176-0704

$90.72

27034

RELAY

27034-0012

$36.91

92009

SCREW,TAPPING,5X16

92009-1984

$2.58

92055

RING-O,9.5X1.9

92055-0016

$8.89

92161

DAMPER

92161-0951

$14.90

92161A

DAMPER,ECU

92161-0976

$19.04

92161B

DAMPER

92161-2290

$6.03

92161C

DAMPER,B/T UNIT

92161-2513

$12.07
