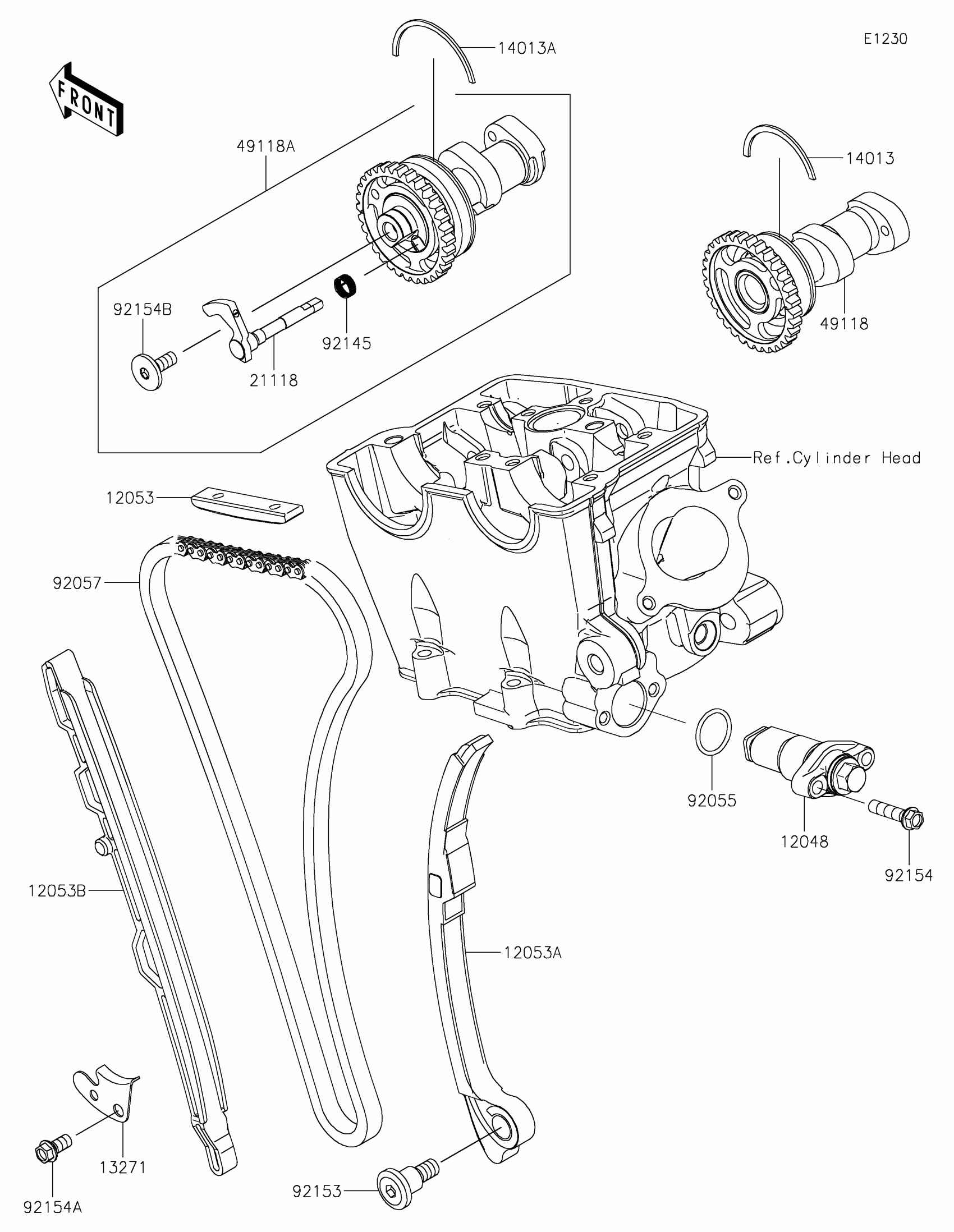

Kawasaki KX™250 Camshaft(s)/Tensioner Diagram

Description

Price

12048

TENSIONER-ASSY

12048-0056

$138.76

12053

GUIDE-CHAIN,UPP

12053-0051

$23.95

12053A

GUIDE-CHAIN,RR

12053-0355

$80.93

12053B

GUIDE-CHAIN,FR

12053-0356

$29.48

13271

PLATE,CAM CHAIN STOPPER

13271-0808

$6.38

14013

RING-POSITION

14013-0001

$5.54

14013A

RING-POSITION

14013-0002

$5.54

21118

DECOMPRESSOR

21118-0032

$130.48

49118

CAMSHAFT-COMP,INTAKE

49118-1313

$191.59

49118A

CAMSHAFT-COMP,EXHAUST

49118-1314

$262.78

92055

RING-O,18.8X1.9

92055-086

$4.31

92057

CHAIN,CAM,98XRH2015-120N2

92057-0944

$110.12

92145

SPRING,DECOMP

92145-2228

$4.55

92153

BOLT,12X24.5

92153-0572

$8.58

92154

BOLT,FLANGED,6X25

92154-2967

$0.90

92154A

BOLT,FLANGED,6X12

92154-2975

$0.64

92154B

BOLT,SOCKET,6X16

92154-4028

$13.60
