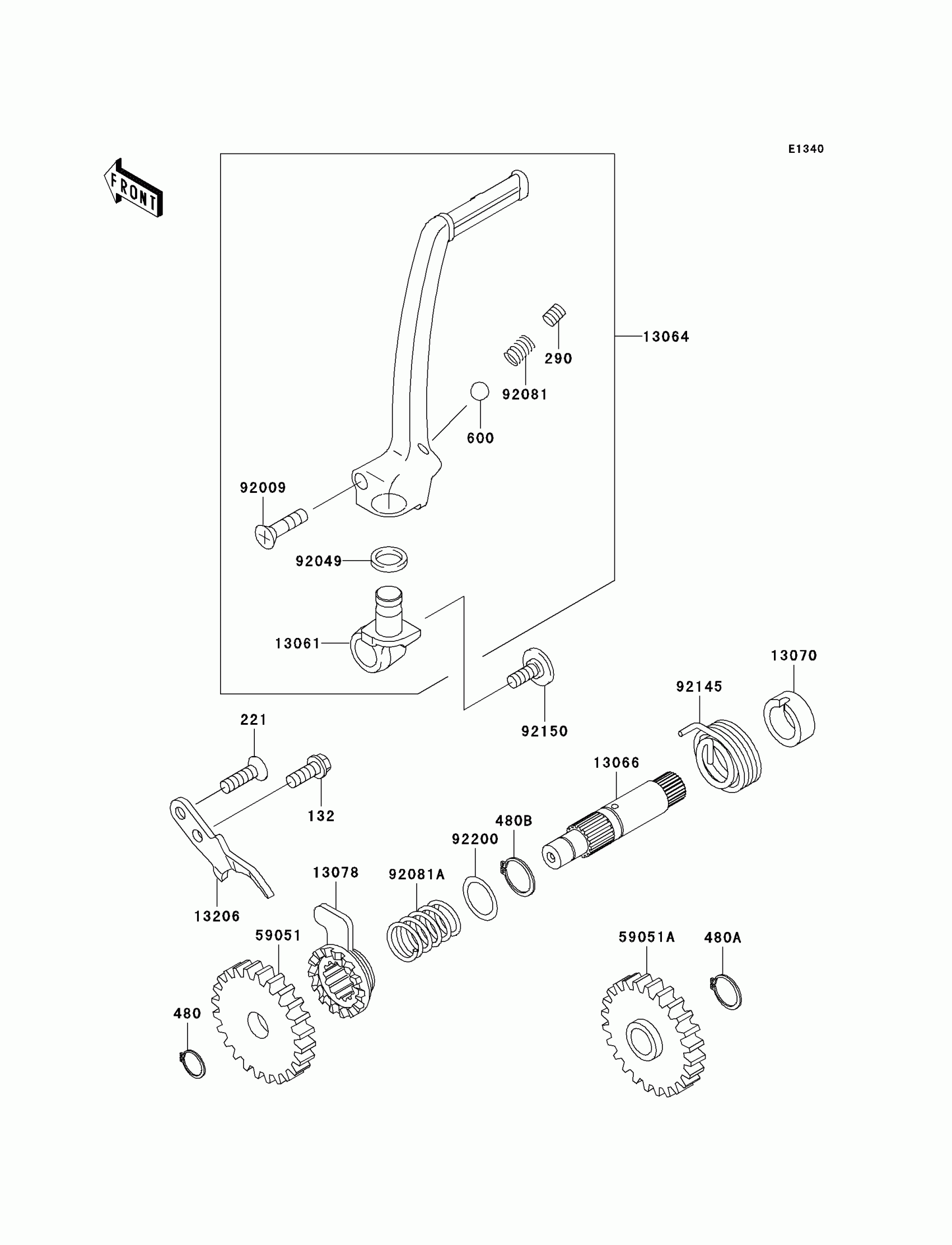

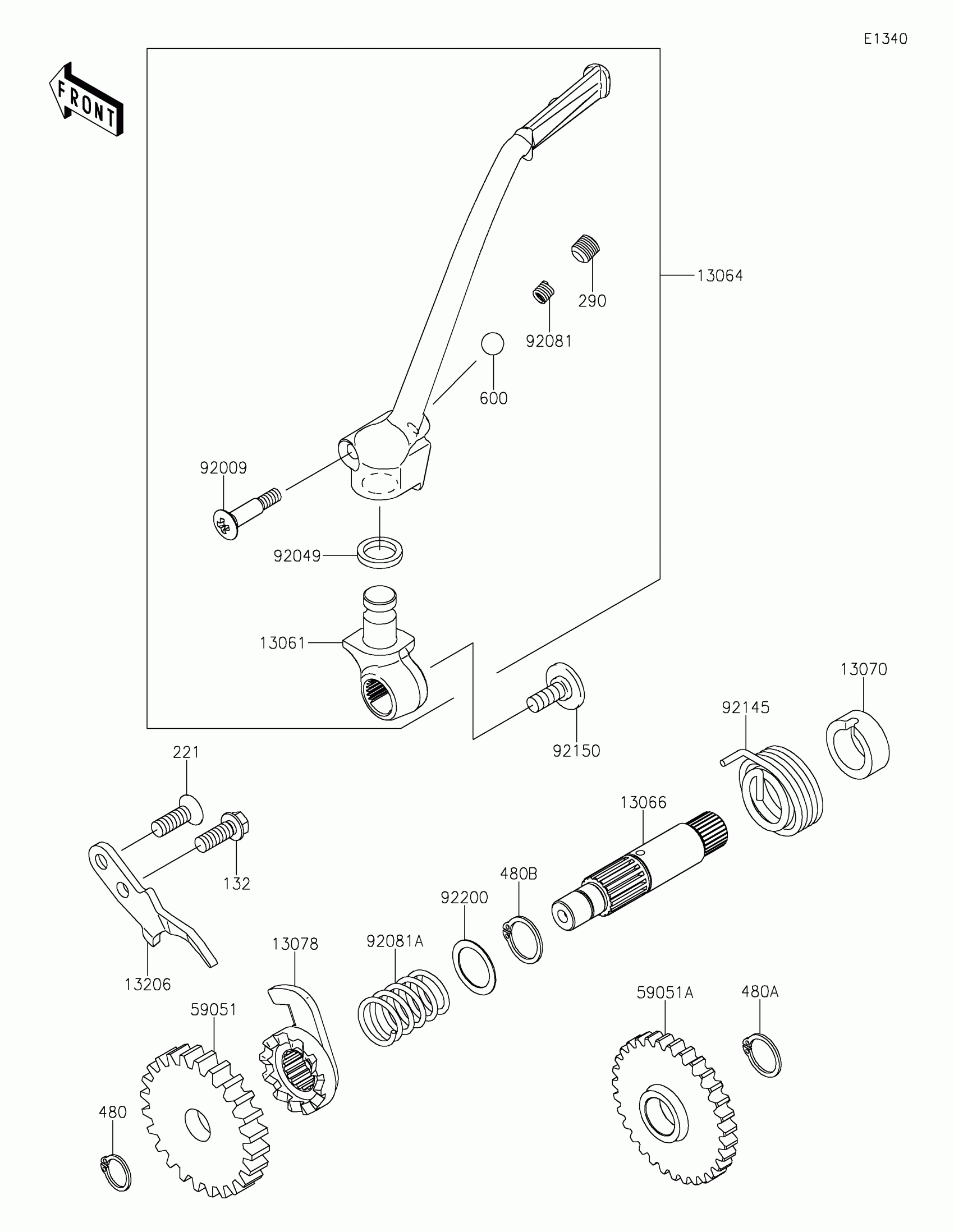

Kawasaki KX™100 Kickstarter Mechanism Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51

221

SCREW-CSK-CROS,6X18

221AA0618

$3.67

290

SCREW-SET-SOCKET,8X8

290CA0808

$3.39

480

CIRCLIP-TYPE-C,12MM

480J1200

$0.62

480A

CIRCLIP-TYPE-C,15MM

480J1500

$2.31

480B

CIRCLIP-TYPE-C,16MM

480J1600

$4.31

600

BALL-STEEL,1/4

600A0800

$0.62

13061

BOSS,KICK PEDAL

13061-1712

$35.65

13064

LEVER-ASSY-KICK,PEDAL

13064-1188

Unavailable

13066

SHAFT-KICK

13066-1097

$85.73

13070

GUIDE

13070-1314

$6.16

13078

RATCHET

13078-1004

$58.99

13206

GUIDE-KICK

13206-1066

$7.50

59051

GEAR-SPUR,32T

59051-1026

$51.72

59051A

GEAR-SPUR,31T,KICK

59051-1147

$65.22

92009

SCREW,6X27

92009-1607

$8.58

92049

SEAL-OIL,SR12162.5

92049-1468

$6.22

92081

SPRING,KICK PEDAL

92081-020

$4.26

92081A

SPRING,RATCHET

92081-122

$8.79

92145

SPRING

92145-1058

$14.66

92150

BOLT,SOCKET,6X16

92150-1673

Unavailable

92200

WASHER,KICKSHAFT

92200-1209

$6.22
