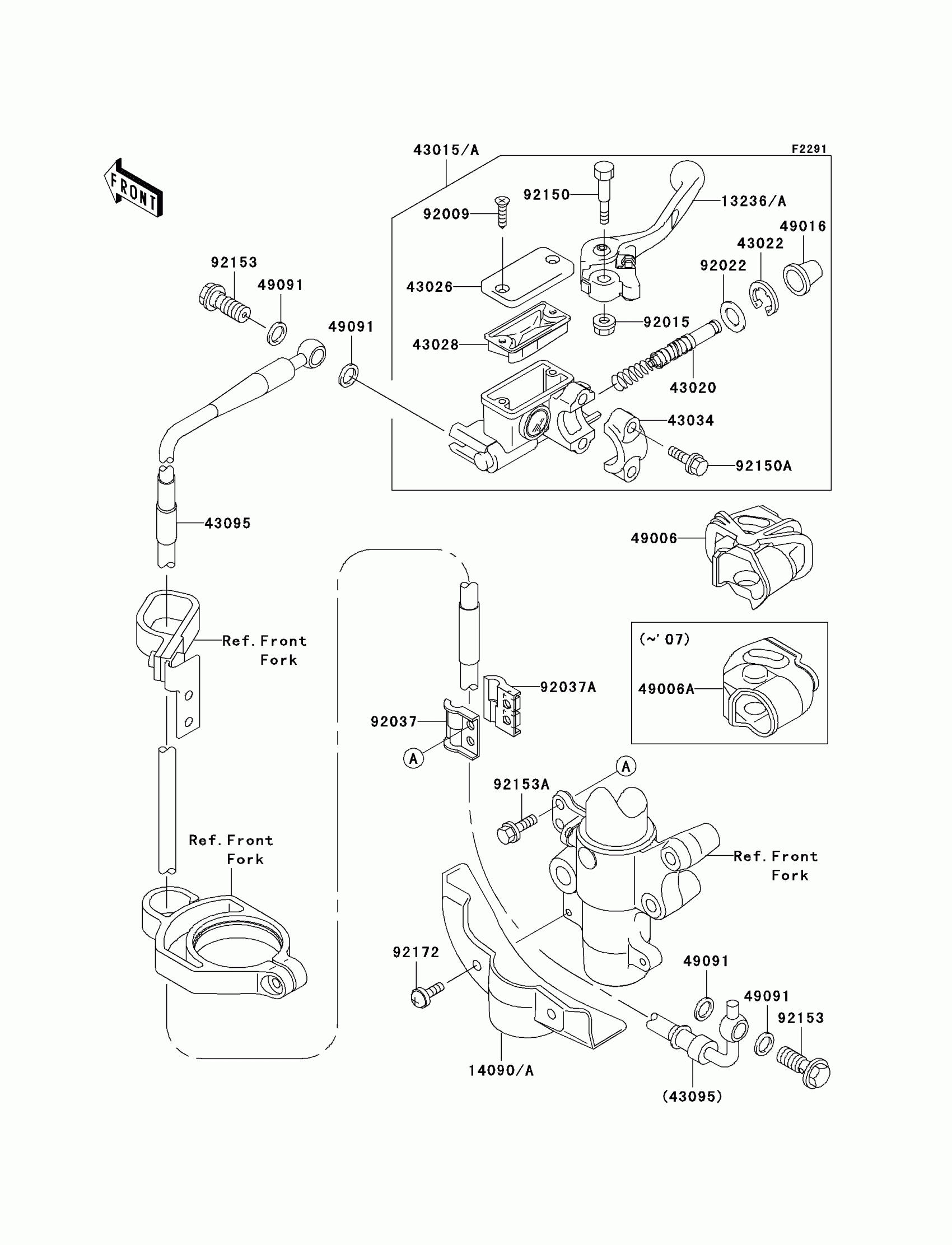

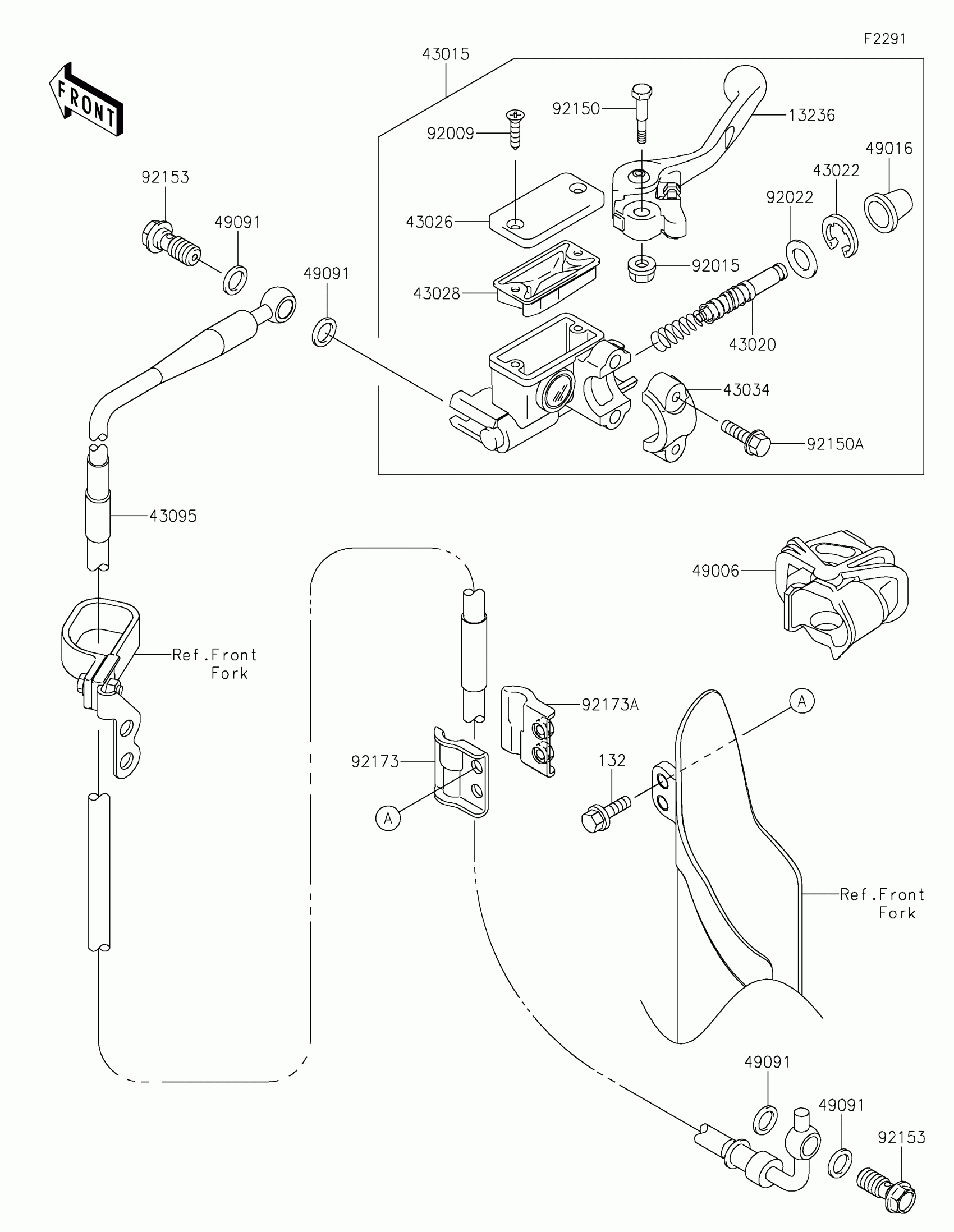

Kawasaki KX™100 Front Master Cylinder Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51

13236

LEVER-COMP,FRONT BRAKE

13236-0712

$44.94

43015

CYLINDER-ASSY-MASTER

43015-0170

$309.99

43020

PISTON-COMP-BRAKE

43020-0016

$55.32

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE,MASTER CYLINDER

43026-0020

$16.09

43028

DIAPHRAGM

43028-1067

$18.72

43034

HOLDER-BRAKE

43034-1110

$19.45

43095

HOSE-BRAKE,FR

43095-0769

$90.01

49006

BOOT,FRONT BRAKE LEVER

49006-0078

$14.32

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92009

SCREW

92009-1795

$4.18

92015

NUT,FLANGED,6MM

92015-1528

$5.52

92022

WASHER

92022-1814

$4.69

92150

BOLT,LEVER SET

92150-1451

$14.23

92150A

BOLT

92150-1452

$5.52

92153

BOLT,OIL,L=23

92153-1419

$3.90

92173

CLAMP,BRAKE HOSE,LH

92173-1177

$7.68

92173A

CLAMP,BRAKE HOSE,RH

92173-1178

$11.00
