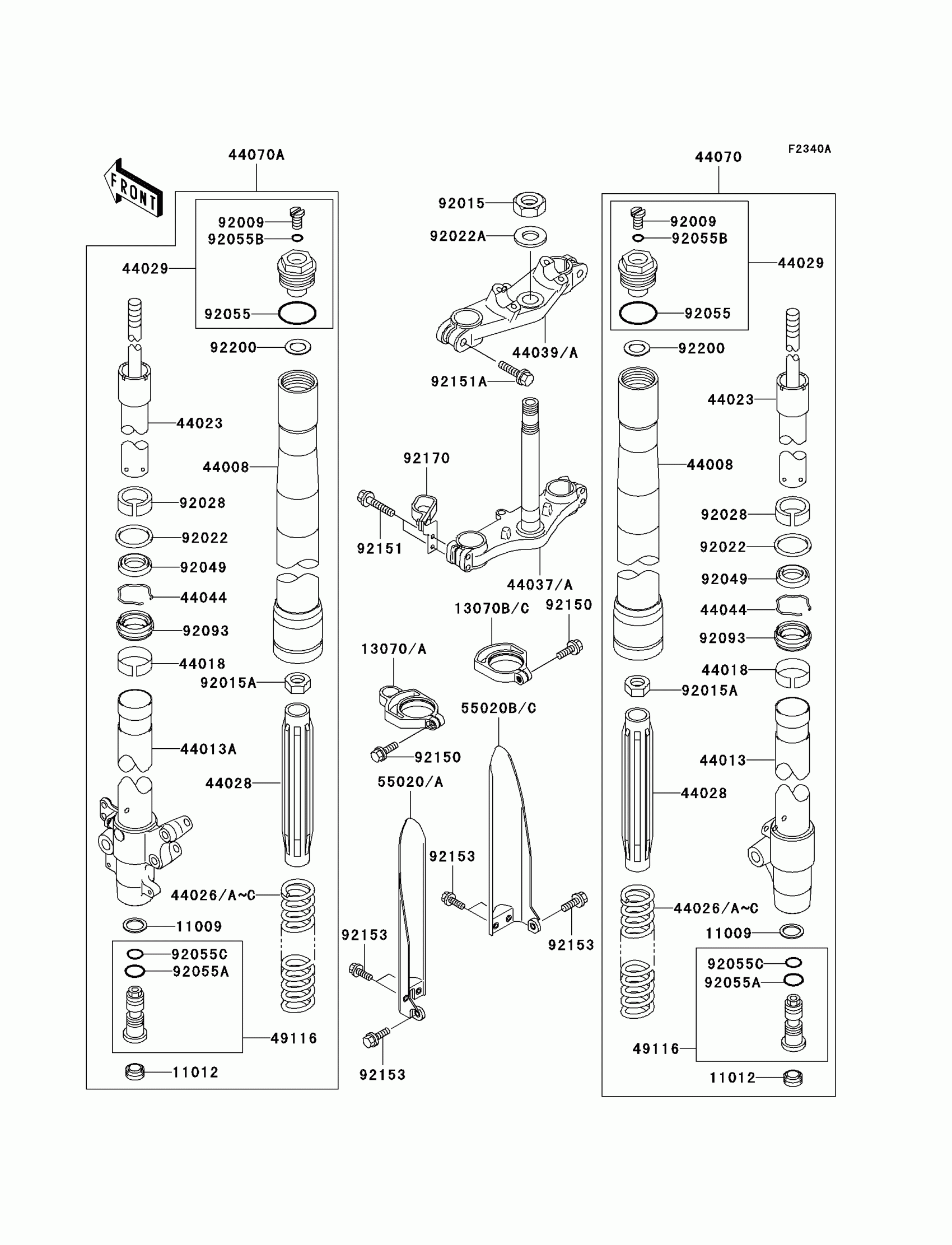

Kawasaki KX™100 Front Fork(D7F-D9FA) Diagram
#
11009
GASKET,FORK CYLINDER BOLT
11009-1592
$6.16
11012
CAP
11012-1692
$6.16
13070A
GUIDE,PROTECTOR,LH,BLACK
13070-0049-6D
$21.55
13070C
GUIDE,PROTECTOR,RH,BLACK
13070-0050-6D
$21.55
44008
PIPE-FORK OUTER,GOLD
44008-1041-828
$465.47
44013
PIPE-FORK INNER,RH
44013-1442
$305.25
44013A
PIPE-FORK INNER,LH
44013-1484
$270.31
44018
PISTON-FORK
44018-1058
$21.36
44023
CYLINDER-SET-FORK
44023-1119
$369.74
44026
SPRING-FRONT FORK,K=2.75N/MM
44026-1633
$60.49
44026A
SPRING-FRONT FORK,K=2.84N/MM
44026-1634
$60.49
44026B
SPRING-FRONT FORK,K=2.94N/MM
44026-1635
$60.49
44026C
SPRING-FRONT FORK,K=2.65N/MM
44026-1671
$64.63
44028
GUIDE-FORK SPRING
44028-1090
$40.90
44029
SEAT-FORK SPRING
44029-1152
$67.65
44037A
HOLDER-FORK UNDER,F.BLACK
44037-0032-21
$319.99
44039A
HOLDER-FORK UPPER,F.BLACK
44039-0023-21
$143.83
44044
RING-SNAP
44044-015
$14.94
44070
DAMPER-ASSY,FORK,RH,GOLD
44070-1631-828
$937.65
44070A
DAMPER-ASSY,FORK,LH,GOLD
44070-1849-828
$937.65
49116
VALVE-ASSY,FORK
49116-1153
$141.32
55020A
GUARD,FORK,LH,BLACK
55020-1611-6D
$30.43
55020C
GUARD,FORK,RH,BLACK
55020-1612-6D
$30.43
92009
SCREW
92009-1568
$7.21
92015
NUT,STEERING STEM,22MM
92015-1653
$16.69
92015A
NUT
92015-1839
$19.64
92022
WASHER,FRONT FORK
92022-1275
$7.34
92022A
WASHER,STEERING STEM
92022-1873
$7.45
92028
BUSHING
92028-1656
$16.18
92049
SEAL-OIL,FORK OUTER TUBE
92049-1394
$19.64
92055
RING-O
92055-1123
$6.22
92055A
RING-O
92055-1156
$1.42
92055B
RING-O,2.8X6.6X1.9
92055-1441
$4.33
92055C
RING-O,FORK VALVE
92055-1502
$7.45
92093
SEAL,FORK OUTER TUBE
92093-1426
$22.90
92150
BOLT,5X16
92150-1802
$5.00
92151
BOLT,FLANGED,8X40
92151-1877
$5.05
92151A
BOLT,FLANGED,8X35
92151-1878
$4.76
92153
BOLT,FLANGED,6X14
92153-0936
$2.97
92170
CLAMP
92170-1810
$9.49
92200
WASHER
92200-1655
$5.79
