Description

Price

132

BOLT-FLANGED-SMALL,6X20

132BC0620

$1.34

221

SCREW-CSK-CROS,6X16

221AA0616

$0.59

221A

SCREW-CSK-CROS,6X20

221AA0620

$2.40

482

CIRCLIP-TYPE-E,5MM

482J5000

$3.41

610

ROLLER,4X8

610A0408

$4.31

11001

HEAD-CYLINDER

11001-1463

$155.40

11004

GASKET-HEAD

11004-1214

$34.53

11005

CYLINDER-ENGINE

11005-0053

$563.88

11060

GASKET,GOVERNOR COVER

11060-1778

$5.85

11060A

GASKET,CYLINDER BASE

11060-1779

$7.55

12021

VALVE-ASSY-REED

12021-1123

$166.44

12022

VALVE-REED

12022-1084

$58.38

13168

LEVER,MAIN VALVE

13168-1499

$91.49

13234

SHAFT-COMP

13234-1105

$36.31

14090

COVER

14090-1811

$32.00

14090A

COVER

14090-1812

$25.14

16065

HOLDER-CARBURETOR

16065-1372

$64.25

49116

VALVE-ASSY

49116-1158

$136.67

92002

BOLT,6X10

92002-1222

$8.10

92004

STUD,8X33

92004-1253

$4.65

92005

FITTING

92005-0050

$14.14

92009

SCREW,REED VALVE

92009-1014

$2.49

92022

WASHER OIL PUMP BANJO

92022-077

$3.99

92022A

WASHER,6.2X11X1

92022-304

$3.65

92037

CLAMP

92037-1173

$3.49

92037A

CLAMP

92037-1843

$8.58

92043

PIN,MAIN VALVE

92043-1470

$4.92

92049

SEAL-OIL,SD088144

92049-1238

$10.46

92055

RING-O

92055-1566

$15.51

92150

BOLT,SOCKET,4X8

92150-1888

$3.32

92153

BOLT,FLANGED,6X8

92153-1005

Unavailable

92153A

BOLT,FLANGED,5X25

92153-1006

Unavailable

92192

TUBE,L=426.3

92192-0265

$15.06

92210

NUT,8MM

92210-0076

$5.48

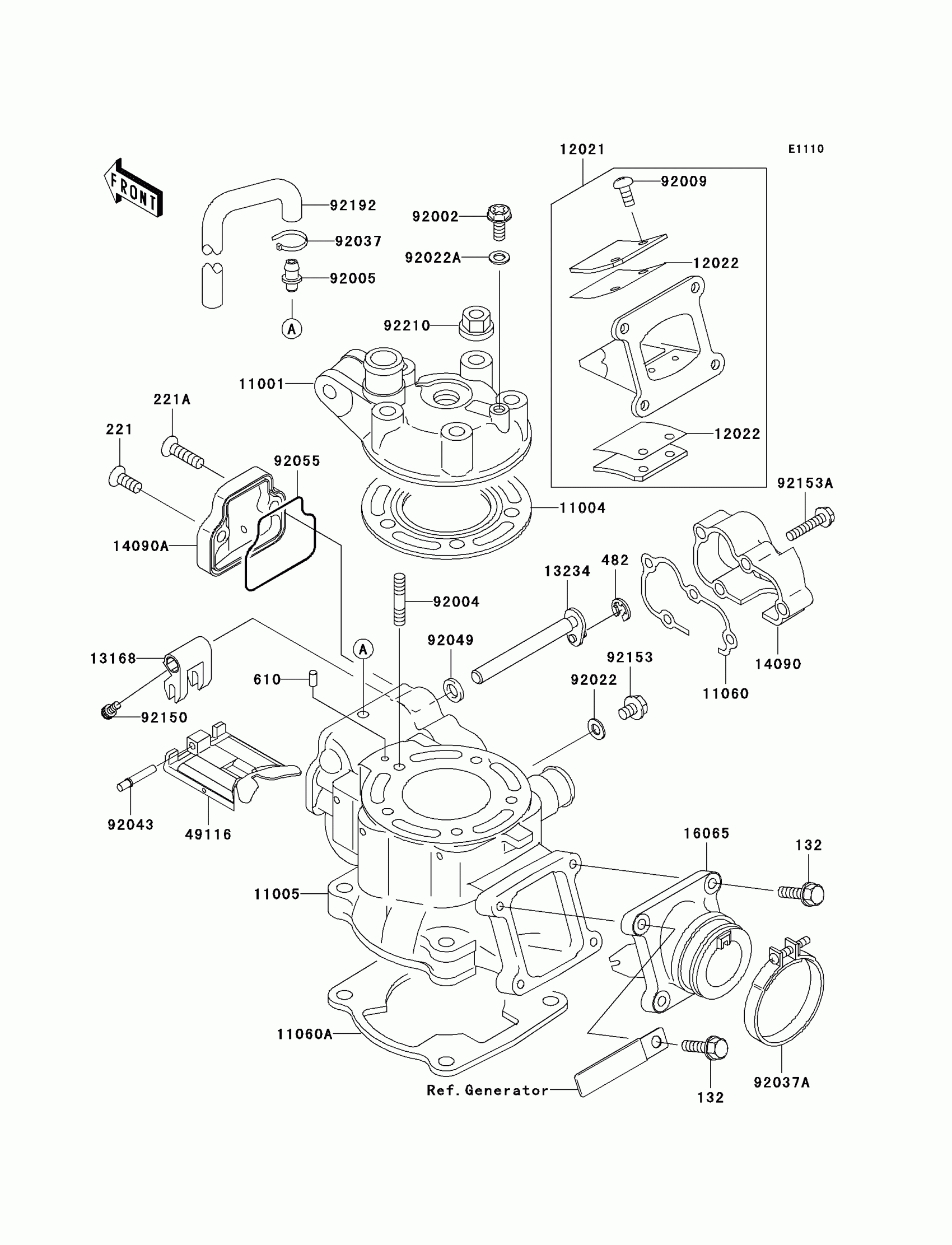

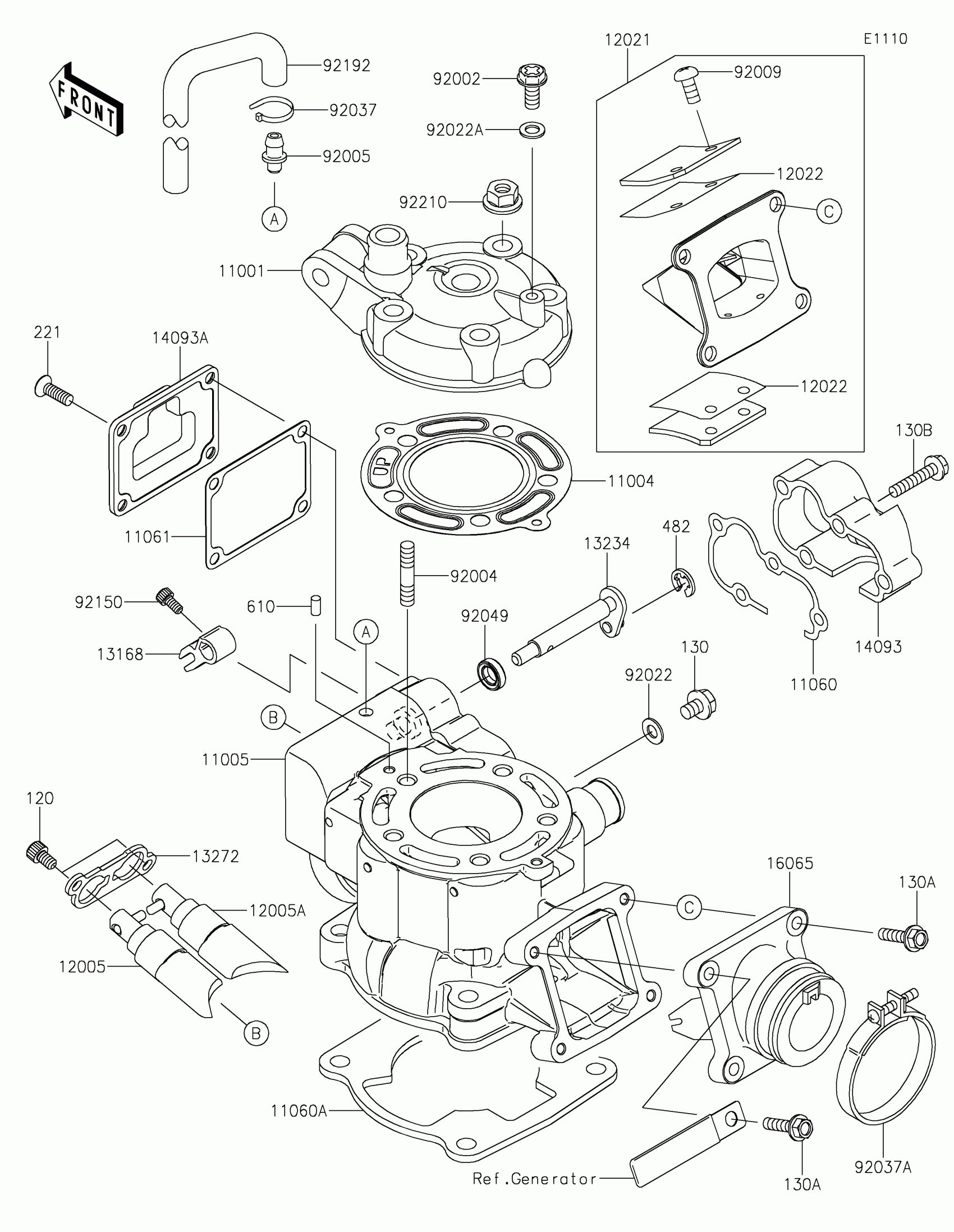

Kawasaki KX™100 Cylinder Head/Cylinder Diagram

BOLT-FLANGED-SMALL,6X20

SCREW-CSK-CROS,6X16

SCREW-CSK-CROS,6X20

CIRCLIP-TYPE-E,5MM

ROLLER,4X8

HEAD-CYLINDER

GASKET-HEAD

CYLINDER-ENGINE

GASKET,GOVERNOR COVER

GASKET,CYLINDER BASE

VALVE-ASSY-REED

VALVE-REED

LEVER,MAIN VALVE

SHAFT-COMP

COVER

COVER

HOLDER-CARBURETOR

VALVE-ASSY

BOLT,6X10

STUD,8X33

FITTING

SCREW,REED VALVE

WASHER OIL PUMP BANJO

WASHER,6.2X11X1

CLAMP

CLAMP

PIN,MAIN VALVE

SEAL-OIL,SD088144

RING-O

BOLT,SOCKET,4X8

BOLT,FLANGED,6X8

BOLT,FLANGED,5X25

TUBE,L=426.3

NUT,8MM
