1980 Kawasaki KV75 Transmission/change Drum Diagram

← All diagrams

Find the part on the Transmission/change Drum diagram for your 1980 Kawasaki KV75, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

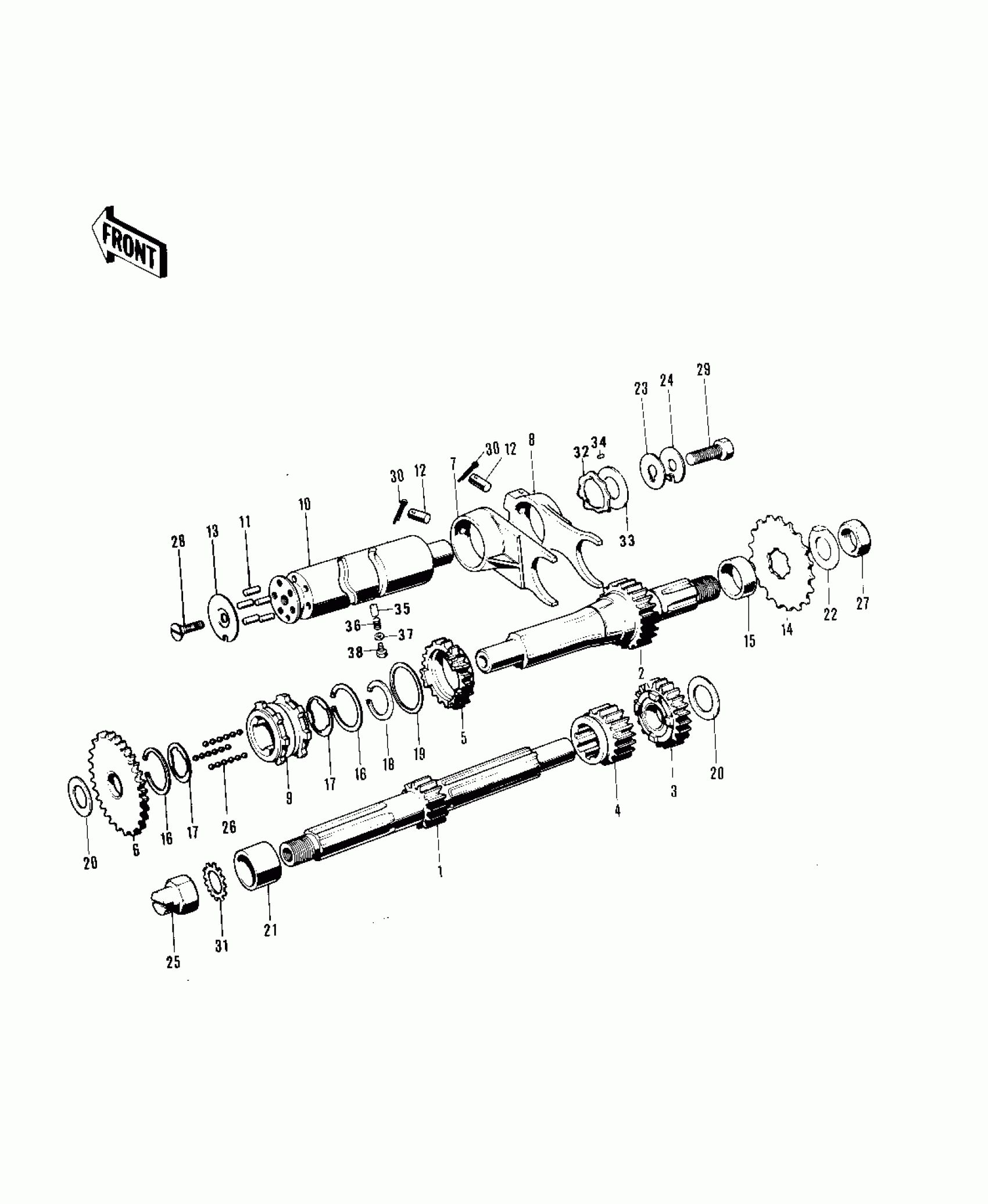

1980 Kawasaki KV75 Transmission/change Drum Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT-DRIVE

13127-030

1
Out of stock

2

SHAFT-OUTPUT

13128-029

1
Out of stock

3

TOP GEAR-DRIVE

13136-034

1
Out of stock

4

2ND GEAR-DRIVE

13130-003

1
Out of stock

5

2ND GEAR-OUTPUT

13131-032

1
Out of stock

6

LOW GEAR-OUTPUT

13129-035

1
Out of stock

7

FORK-SELECTOR,LOW&2ND

13140-033

1
Out of stock

8

FORK-SELECTOR,TOP

13140-034

1
Out of stock

9

SHIFTER

13139-004

1
Out of stock

10

DRUM ASSY,GEAR CHANGE

13239-1014

1
Out of stock

10

DRUM ASSY,GEAR CHANGE

13239-1014

1
Out of stock

10

DRUM ASSY,GEAR CHANGE

13239-1014

1
Out of stock

11

PIN GEAR CHANGE DRUM

92043-004

1
Out of stock

11

PIN GEAR CHANGE DRUM

92043-011

1
Out of stock

12

PIN SELECT FORK GUIDE

92043-005

1
Out of stock

13

PLATE CHANGE DRUM PIN

13142-002

1
Out of stock

14

ENGINE SPROCKET

13144-002

1
Out of stock

15

COLLAR OIL SEAL

92027-001

1
Out of stock

16

CIRCLIP,26MM

92033-003

1
Out of stock

17

CIRCLIP

92033-004

1
Out of stock

18

RING-SNAP,20X25.5X1.2

92033-025

1
Out of stock

19

WASHER 22MM

92022-106

1
Out of stock

20

WASHER-PLAIN

92022-174

1
Out of stock

21

COLLAR-CLUTCH PINION

92027-002

1
Out of stock

22

WASHER-LOCK,12MM

92022-002

1
Out of stock

23

WASHER-PLAIN

92022-175

1
Out of stock

24

WASHER-LOCK

92024-028

1
Out of stock

25

NUT-OIL PUMP

92015-046

1
Out of stock

26

BALL-STEEL,5/32

600A0500

1
Out of stock

27

NUT-HEX-FINE

314B1200

1
Out of stock

27

NUT-HEX-FINE

314B1200

1
Out of stock

28

SCREW CNTSNK HD 6X16

212B0616

1
Out of stock

28

SCREW-CSK-CROS,6X16

221B0616

1
Out of stock

29

BOLT-HEX HEAD,8X18

113B0818

1
Out of stock

29

BOLT-SMALL-UPSET,8X18

115G0818

1
Out of stock

30

PIN-COTTER,3.0X20

550D3020

1
Out of stock

31

WASHER-TOOTHED,12MM

464H1200

1
Out of stock

32

DISC.CHNG DRUM OPRTN

13145-004

1
Out of stock

32

DISC,CHANGE DRUM

13145-007

1
Out of stock

33

WASHER,THRUST

92026-106

1
Out of stock

34

ROLLER,4X6

610A0406

1
Out of stock

35

PIN

92043-076

1
Out of stock

36

SPRING

92081-112

1
Out of stock

37

GASKET

92065-090

1
Out of stock

38

BOLT,FLANGED,16X16.5

92001-131

1
Out of stock
