1980 Kawasaki KV75 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1980 Kawasaki KV75, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

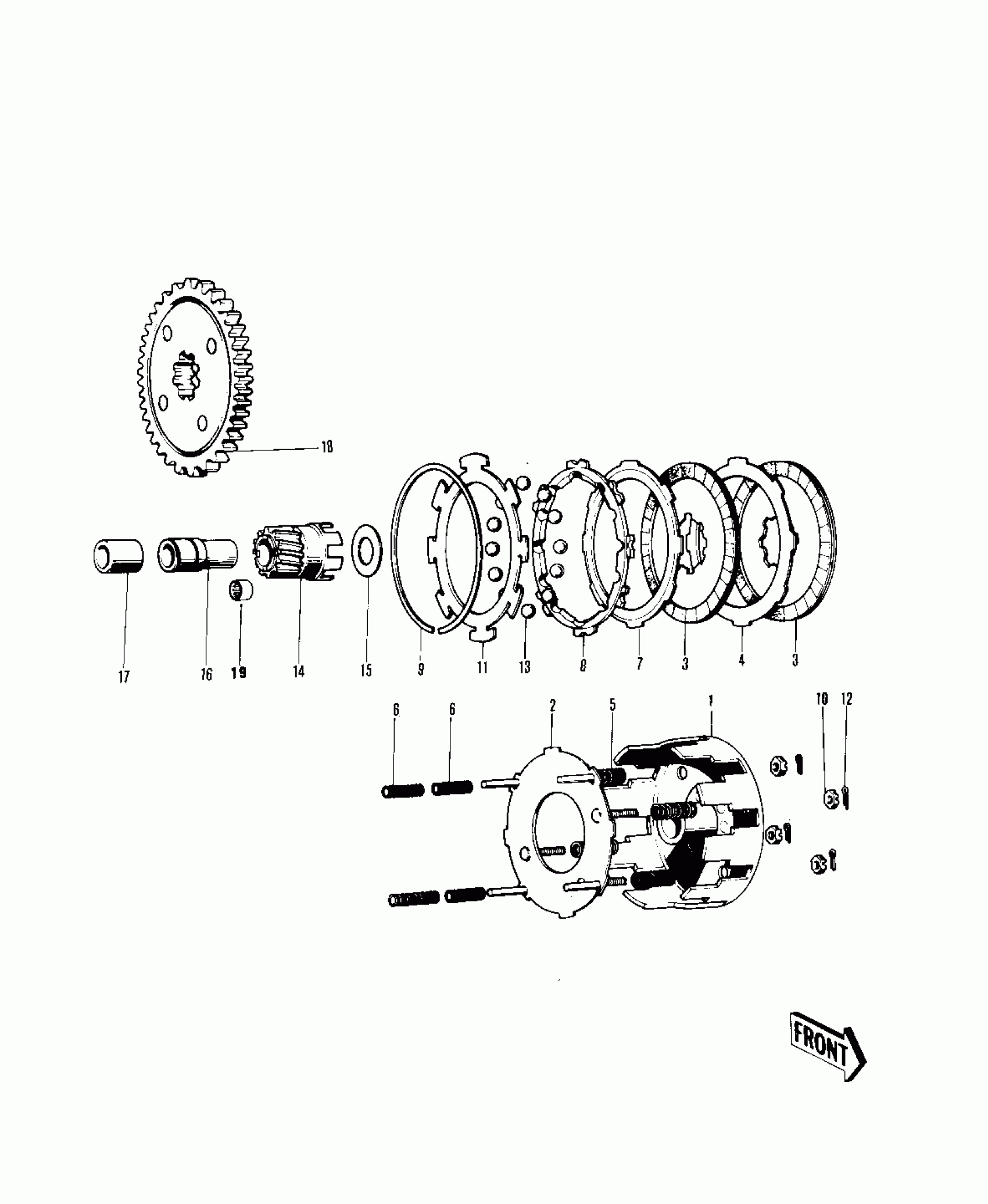

1980 Kawasaki KV75 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1 13

CLUTCH-ASSY

13081-036

1
Out of stock

1

HOUSING-CLUTCH

13095-028

1
Out of stock

2

WHEEL-CLUTCH

13083-006

1
Out of stock

3

PLATE-CLUTCH FRICTION

13088-024

1
Out of stock

4

PLATE-CLUTCH STEEL

13179-003

1
Out of stock

5

SPRING-CLUTCH

92081-086

1

$2.59

In stock

6

SPRING-RETURN

92081-087

1
Out of stock

7

PLATE-BALL HOLDER

13189-003

1
Out of stock

8

PLATE-BALL GUIDE

13190-003

1
Out of stock

9

CIRCLIP

13191-003

1
Out of stock

10

NUT,6MM

13195-003

1
Out of stock

11

PLATE-BALL HOLDER

13198-003

1
Out of stock

12

1

$2.08

In stock

13

BALL-STEEL,3/8"

600A1200

1

$1.32

In stock

14

HUB-CLUTCH

13084-003

1
Out of stock

15

WASHER

92022-142

1

$6.66

In stock

16

BUSH-CLUTCH

13215-005

1
Out of stock

17

COLLAR

92027-125

1

$10.78

In stock

18

GEAR ASSY-CLUTCH

13216-004

1
Out of stock

19

BEARING,N RC121610

92117-001

1

$51.76

In stock
