Description

Price

1

ARM-SWING

33001-037

Unavailable

2

BUSH SWING ARM SHAFT

92092-006

$17.75

3

SHAFT SWING ARM PIVOT

33032-008

Unavailable

4

WASHER PLAIN 10MM

410B1000

$0.58

5

WASHER SPRING 10MM

461F1000

$0.67

6

NUT-HEX-FINE,10MM

314B1000

$0.67

7

ADJUSTER-CHAIN

33040-042

Unavailable

8

TORQUE LINK-REAR BRK

43007-025

Unavailable

9

BOLT,HEX HEAD,10X18

113G1018

Unavailable

10

SHOCK ABSBR RR

45014-065

Unavailable

10

SHOCK ABSBR RR

45014-1014

$81.93

11

STUD,12MM

92006-006

$7.93

12

NUT-HEX-FINE

314B1200

$2.87

12

NUT-HEX-FINE

314B1200

$2.87

13

WASHER PLAIN 12MM

411B1200

$0.93

14

WASHER-SPRING,12MM

461F1200

$0.96

15

BOLT-HEX HEAD,12X36

113B1236A

$5.16

16

NUT-HEX-FINE

315B1200

$0.93

17

COLLAR

92027-257

$4.04

17-1

COLLAR,REAR SHOCK

92027-1050

$8.12

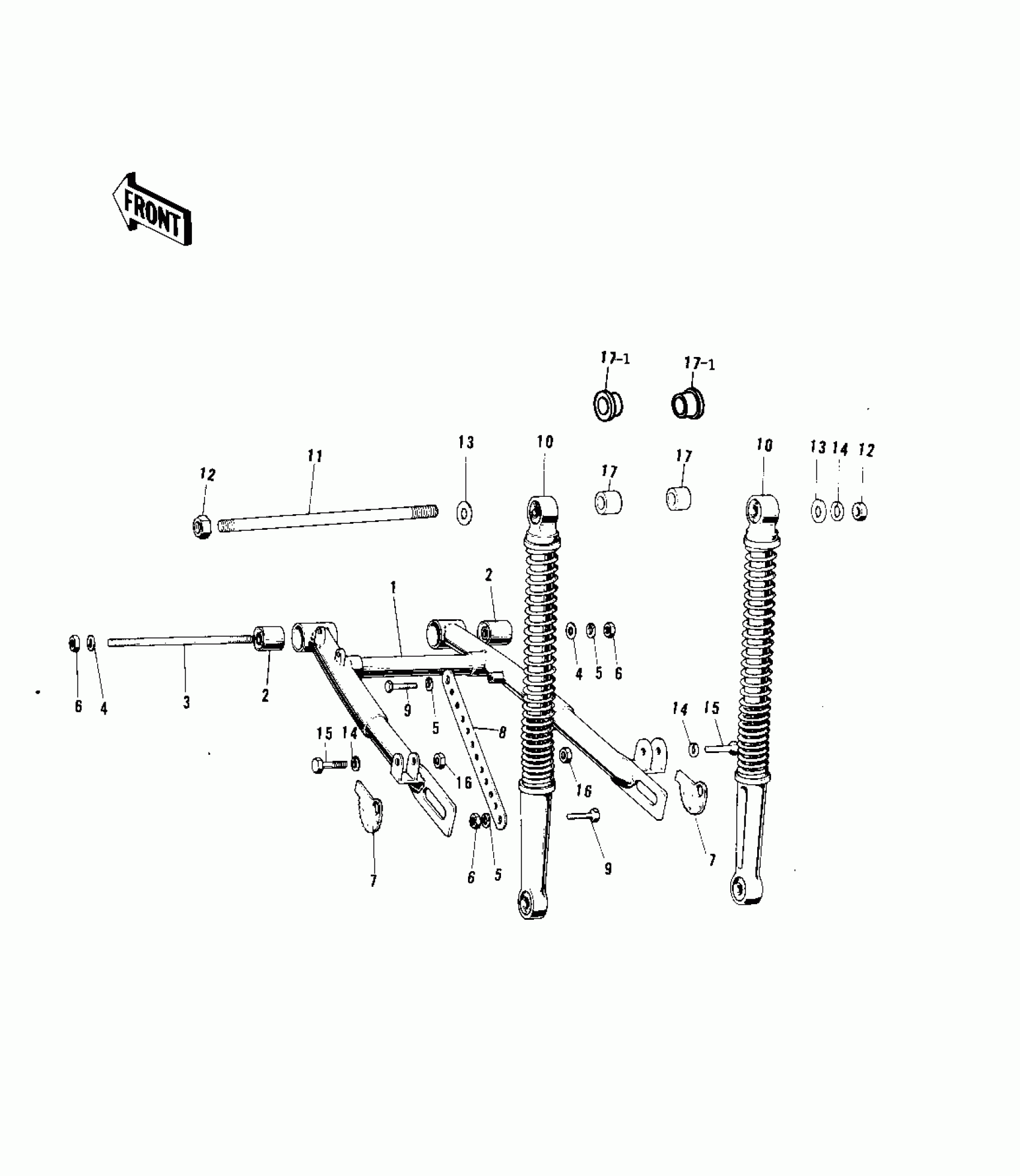

Kawasaki KV75 SWING ARM/SHOCK ABSORBERS ('76-'80) Diagram

ARM-SWING

BUSH SWING ARM SHAFT

SHAFT SWING ARM PIVOT

WASHER PLAIN 10MM

WASHER SPRING 10MM

NUT-HEX-FINE,10MM

ADJUSTER-CHAIN

TORQUE LINK-REAR BRK

BOLT,HEX HEAD,10X18

SHOCK ABSBR RR

SHOCK ABSBR RR

STUD,12MM

NUT-HEX-FINE

NUT-HEX-FINE

WASHER PLAIN 12MM

WASHER-SPRING,12MM

BOLT-HEX HEAD,12X36

NUT-HEX-FINE

COLLAR

COLLAR,REAR SHOCK
