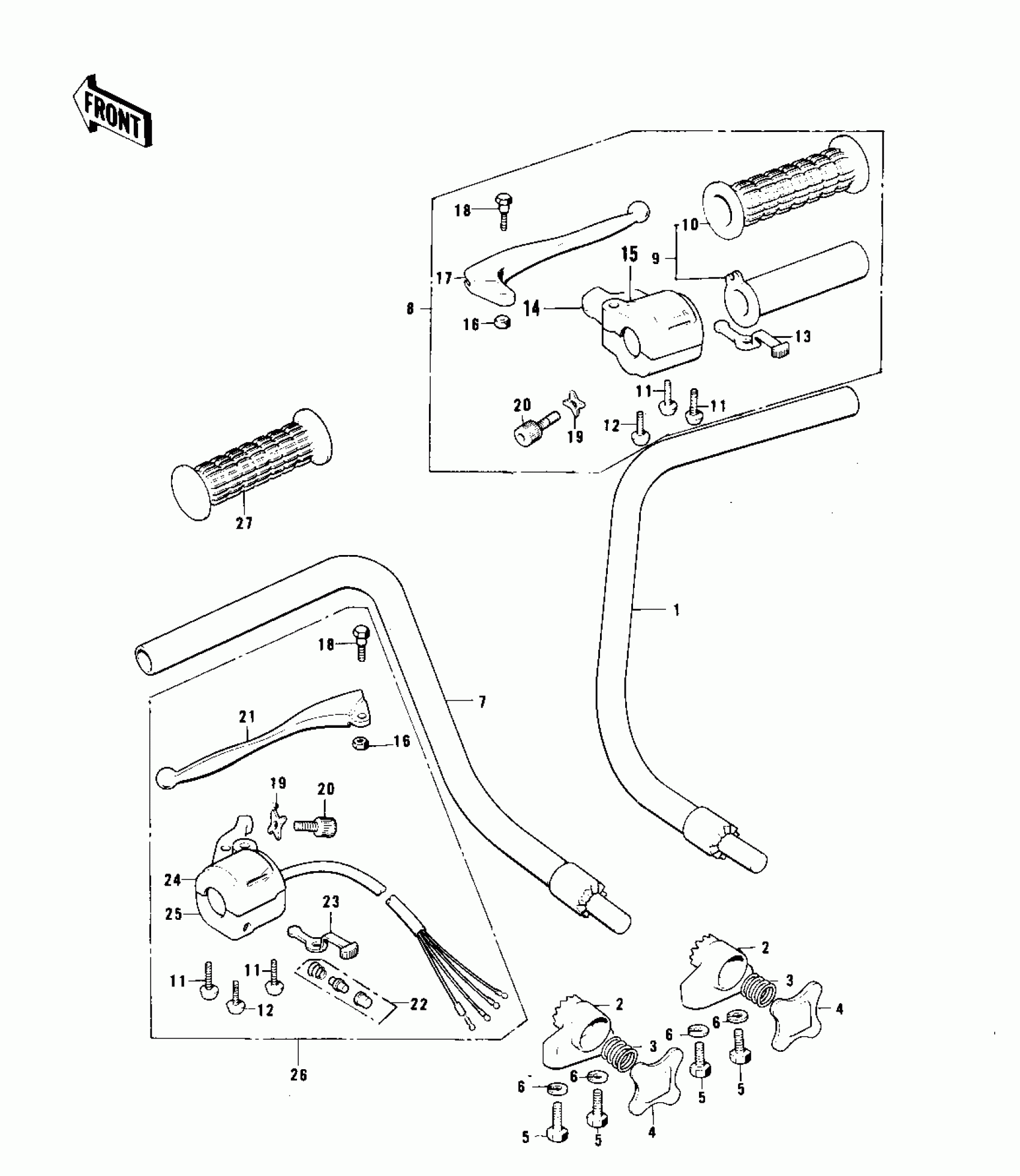

Kawasaki KV75 HANDLEBAR ('76-'80) Diagram
#
Description
Price
1
HANDLEBAR,RH
46007-010
$69.63
2
HOLDER-HANDLEBAR
46012-009
Unavailable
3
SPRING
92081-090
$5.33
4
KNOB-HANDLEBAR HOLDER
46129-001
Unavailable
5
BOLT,HEX HEAD,10X18
113G1018
Unavailable
6
WASHER SPRING 10MM
461F1000
$0.67
7
HANDLEBAR,LH
46007-011
$63.28
8
GRIP ASSY,R.H
46017-077
Unavailable
8
GRIP ASSY,R.H
46017-1009
$110.68
9
GRIP ASSY,THROTTLE
46019-024
Unavailable
9
GRIP ASSY,THROTTLE
46019-041
$60.83
10
RUBBER,R.H.GRIP
46061-015
$23.82
11
SCREW-PAN-CROS
220B0520
$0.68
12
SCREW-PAN-CROS
220B0518
$4.62
13
KNOB ASSY R.H SWITCH
46043-002
Unavailable
14
CASE R.H SWITCH LOWER
46022-012
Unavailable
14
CASE,R.H LOWER
46022-017
$32.31
15
GRIP-ASSY,RH
46017-1071
Unavailable
15
CASE,R.H. UPPER
46040-015
$12.48
16
NUT,LOCK,5MM
92019-014
$4.50
17
LEVER-GRIP,FRONT BRAKE
46058-004
$24.84
18
BOLT,5X22
92007-046
$7.62
19
NUT LOCK ADJUST SCREW
46056-001
Unavailable
20
SCREW,CABLE ADJUST,8MM
46055-003
$16.33
21
LEVER-GRIP,CLUTCH
46092-015
Unavailable
22
SWITCH ASSY LH BUTTON
46078-003
$9.20
23
KNOB ASSY L.H SWITCH
46088-001
Unavailable
24
CASE L.H SWITCH UPPER
46086-007
Unavailable
24
CASE,L.H UPPER
46086-025
$19.84
25
CASE L.H SWITCH LOWER
46077-008
Unavailable
25
CASE, L.H. LOWER
46077-026
Unavailable
26
46074-092 (Canada)
46074-067
Unavailable
26
GRIP ASSY,L.H
46074-092
Unavailable
26
GRIP ASSY,L.H.
46074-1005
$112.24
27
RUBBER,L.H GRIP
46075-020
Unavailable
27
RUBBER,L.H GRIP
46075-028
$39.98
28
DUST COVER
49016-1028
Unavailable
