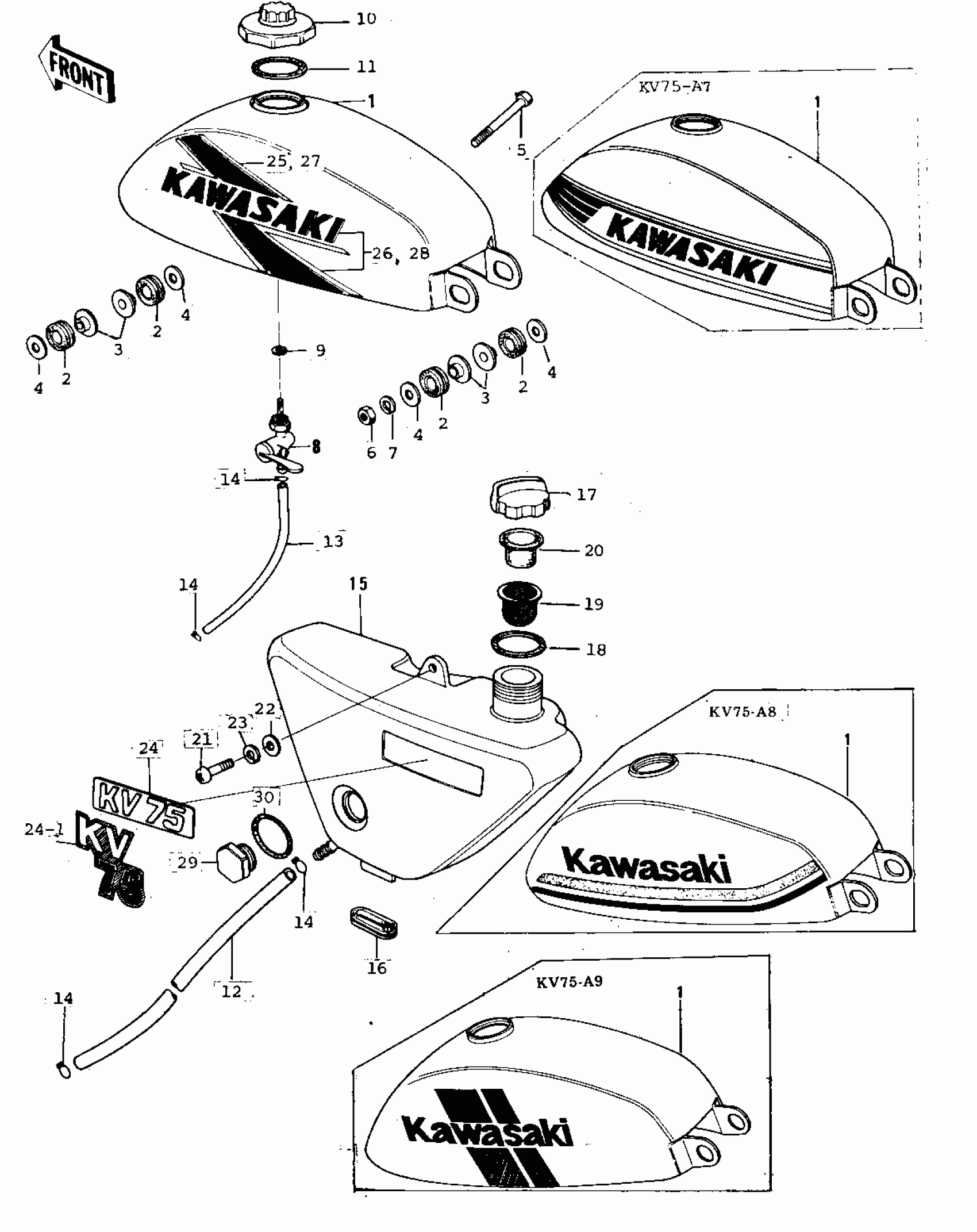

Kawasaki KV75 FUEL TANK/OIL TANK/LABELS ('76-'80) Diagram
#
1
TANK-FUEL,C.S.RED
51001-064-3R
$142.31
1
TANK-FUEL,CERULEAN BL
51001-064-4M
Unavailable
1
TANK-FUEL,POPPY RED
51001-064-4P
Unavailable
1
TANK-FUEL,C.WHITE
51001-5007-7R
Unavailable
1
TANK-FUEL,CRM.ORANGE
51001-064-D1
Unavailable
2
DAMPER RUBB TANK FRNT
92075-019
Unavailable
3
COLLAR
92027-080
$6.23
4
WASHER,8X26X2.3
92022-1564
$4.31
5
BOLT,HEX HEAD,8X85
92001-1226
$2.69
6
NUT,8MM
311B0800
$0.67
7
WASHER SPRING 8MM
461F0800
$0.40
8
COCK ASSY,FUEL
51023-030
Unavailable
9
GASKET-FUEL COCK JONT
92065-075
Unavailable
10
CAP-FUEL TANK
51048-005
Unavailable
11
GASKET FUEL TANK CAP
51059-003
Unavailable
11
GASKET,FUEL TANK CAP
51059-006
Unavailable
12
PIPE-OIL
92059-072
$38.33
13
TUBE
92059-074
Unavailable
14
CLAMP,TUBE
92037-010
$3.92
15
TANK,OIL,BLACK
52001-046-6Z
$29.35
15
TANK,OIL,BLACK
52001-046-6Z
$29.35
15
TANK,OIL,BLACK
52001-046-6Z
$29.35
15
TANK,OIL,BLACK
52001-1007-6Z
Unavailable
16
DAMPER RUBBER
92075-070
Unavailable
17
CAP-OIL TANK
52002-002
Unavailable
18
GASKET-OIL TANK CAP
92065-079
Unavailable
19
CASE-TANK CAP RUBBER
52004-007
Unavailable
20
RUBBER-OIL TANK CAP
52004-008
Unavailable
21
SCREW-PAN-CROS,6X16
220B0616
$2.84
22
WASHER PLAIN
92022-024
$3.65
23
WASHER SPRING 6MM
461F0600
$0.69
24
EMBLEM,OIL TANK
56018-216
Unavailable
24-1
MARK,OIL TANK
56018-1048
$12.82
24-1
MARK,OIL TANK
56018-1130
$11.57
25
DECAL,FL TK,L.H UPP
56027-342-SP
$7.45
25
*** N.L.A.*** (Canada)
56029-030-SP
Unavailable
26
DECAL,FL TK,L.H LOW
56027-343-SP
$8.14
26
*** N.L.A.*** (Canada)
56029-031-SP
Unavailable
27
DECAL,FL TK,R.H UPP
56027-344-SP
$7.45
27
*** N.L.A.*** (Canada)
56029-032-SP
Unavailable
28
DECAL,FL TK,R.H LOW
56027-345-SP
$8.14
28
*** N.L.A.*** (Canada)
56029-033-SP
Unavailable
29
GAUGE,OIL LEVEL
52015-002
$6.00
30
RING-O,20MM
92055-051
$5.59
