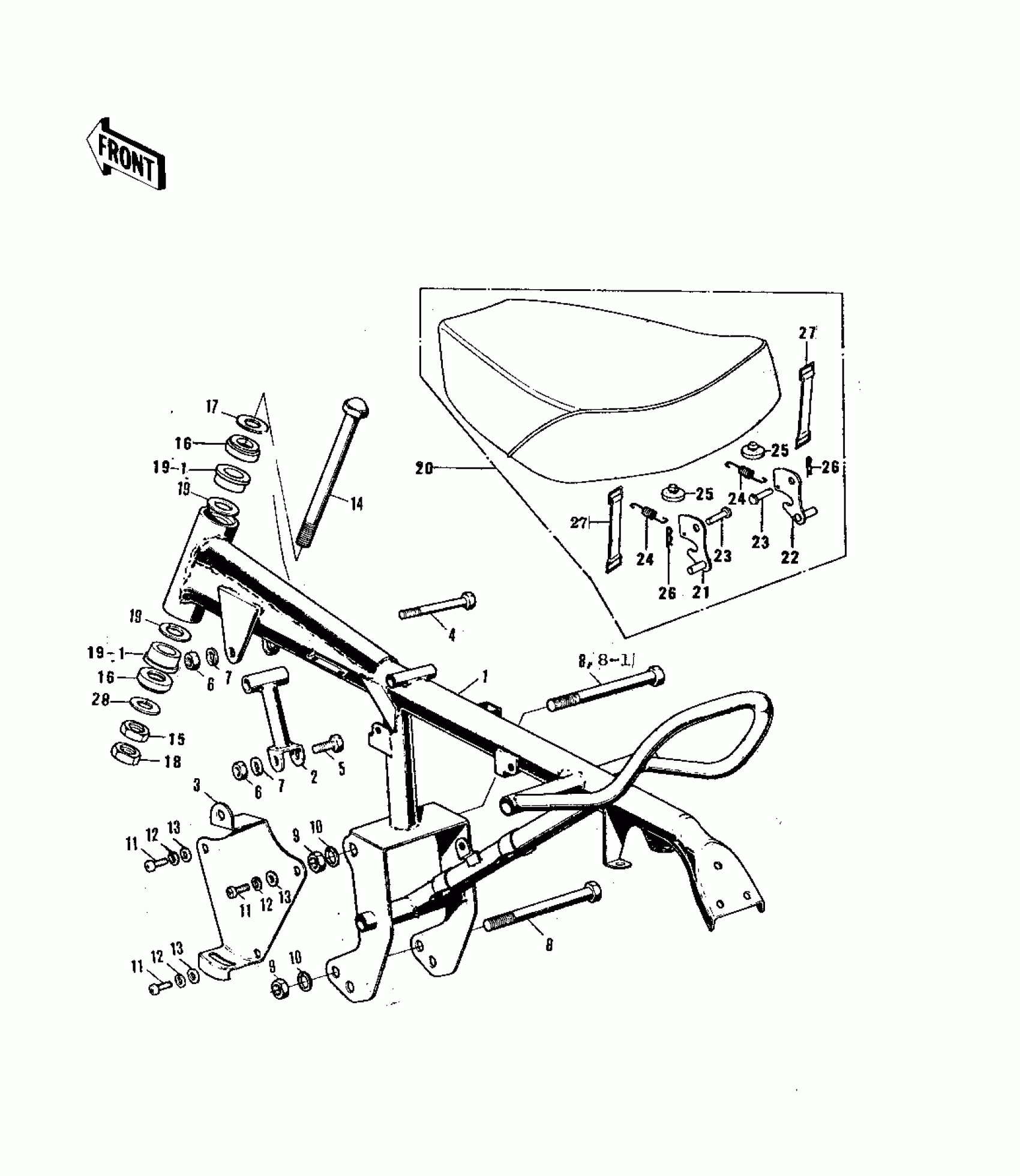

Kawasaki KV75 FRAME/FRAME FITTINGS/SEAT ('76-'80) Diagram

#

Description
Price

1

FRAME

32002-144

Unavailable

2

TUBE-DOWN

31076-016

$31.07

3

BRACKET-OIL TANK

32094-006

Unavailable

4

BOLT,HEX HEAD,8X85

92001-1226

$2.69

5

BOLT

92001-1578

$8.19

6

NUT,8MM

311B0800

$0.67

7

WASHER SPRING 8MM

461F0800

$0.40

8

BOLT,FLANGED,10X110

92001-1602

$11.07

8-1

BOLT,HEX HEAD,10X105

92001-1282

$7.80

9

NUT-HEX-FINE,10MM

314B1000

$0.67

10

WASHER SPRING 10MM

461F1000

$0.67

11

SCREW PAN HEAD 6X12

220B0612

Unavailable

12

WASHER SPRING 6MM

461F0600

$0.69

13

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

14

BOLT,STEERING HEAD

92001-156

Unavailable

15

NUT-HEX-FINE,16MM

315B1600

Unavailable

16

THRUST BEARING

92119-001

Unavailable

16

BEARING,BALL,STEERING

92045-1003

Unavailable

17

WASHER-PLAIN,16MM

411D1600

$3.58

18

NUT-HEX-FINE,16MM

315B1600

Unavailable

19

COLLAR,STEERING

92027-1119

Unavailable

19-1

COLLAR,STEERING

92027-1119

Unavailable

20

SEAT ASSY,DUAL

53002-075

$240.46

20

SEAT-ASSY

53001-1031

Unavailable

20

SEAT-ASSY

53001-1031

Unavailable

21

HOOK,L.H

53008-033

Unavailable

22

HOOK,R.H

53008-034

Unavailable

23

PIN,6X11

92043-092

$4.69

24

SPRING,HOOK

53012-013

Unavailable

25

DAMPER,9X24X14

92075-281

$6.22

26

COTTER PIN

92041-003

$5.72

27

BAND,L=50

92072-066

$16.08

28

WASHER-PLAIN,16MM

411D1600

$3.58
