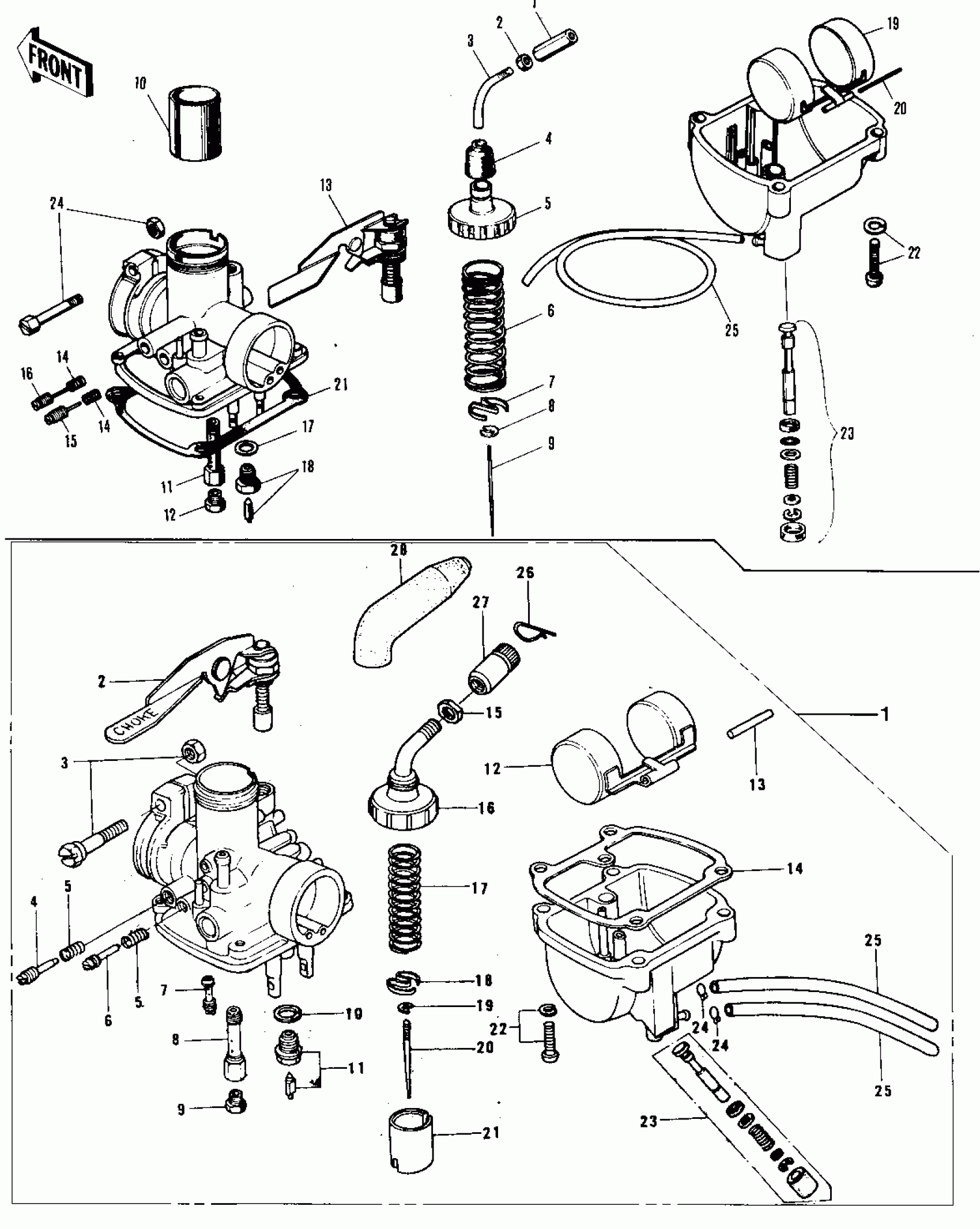

Kawasaki KV75 CARBURETOR ('76-'80) Diagram
#
1-25
CARBURETOR ASSY
16001-129
$129.51
1
CABLE ADJUSTER
16002-004
Unavailable
2
NUT,CABLE ADJUST LOCK
16003-004
$7.34
3
*** N.L.A.*** (Canada)
16077-003
$5.54
4
CAP-RUBBER
16037-001
$8.72
5
TOP-MIXING CHANBER
16005-001
Unavailable
6
SPRING-THROTTLE VALVE
16006-001
$11.56
7
SPRING SEAT THRTL VLV
16007-001
Unavailable
8
CLAMP,E-TYPE
16008-010
$9.21
9
JET NEEDLE 3G9
16009-042
$30.76
10
VALVE-THROTTLE CA2.0
16025-038
$98.68
11
NEEDLE JET E-0
16017-051
$34.25
12
MAIN JET NO 70M
92063-110
$14.45
13
PLUNGER ASSY-STARTER
16016-009
Unavailable
14
SPRING,PILOT AIR SCREW
16022-007
$8.13
15
SCREW STOP
16021-001
Unavailable
16
SCREW-PILOT AIR
16014-002
$18.22
17
GASKET,FLOAT VALVE SEAT
16029-002
$4.46
18
FLOAT VALVE ASSY
16030-002
Unavailable
19
FLOAT
16031-014
Unavailable
20
PIN,FLOAT
16032-003
$6.57
21
GASKET
16019-011
Unavailable
22
SCREW-FLOAT CHAMBER
16033-012
$1.88
24
SCREW-CLAMP
16010-005
Unavailable
1
CARBURETOR ASSY
16001-1033
Unavailable
2
PLUNGER ASSY-STARTER
16016-009
Unavailable
3
SCREW-CLAMP
16010-005
Unavailable
4
SCREW-PILOT AIR
16014-002
$18.22
5
SPRING,PILOT AIR SCREW
16022-007
$8.13
6
SCREW STOP
16021-001
Unavailable
7
JET-PILOT,#A15
92064-1018
$20.51
10
GASKET,FLOAT VALVE SEAT
16029-002
$4.46
11
FLOAT VALVE ASSY
16030-002
Unavailable
12
FLOAT
16031-014
Unavailable
13
PIN,FLOAT
16032-003
$6.57
14
GASKET
16019-011
Unavailable
15
NUT,ADJUST LOCK
16003-006
$7.34
16
TOP,MIXING CHAMBER
16005-1003
$41.38
17
SPRING-THROTTLE VALVE
16006-001
$11.56
18
SPRING SEAT THRTL VLV
16007-001
Unavailable
18
SPRING SEAT THRTL VLV
16007-001
Unavailable
19
CLAMP,JET NEEDLE
92037-1117
$7.72
19
CLAMP-TUBE
92037-1043
Unavailable
19
CLAMP,JET NEEDLE
92037-1117
$7.72
20
JET NEEDLE 3G9
16009-042
$30.76
21
VALVE,THROTTLE,CA2.0
16025-1004
$83.53
22
SCREW-FLOAT CHAMBER
16033-012
$1.88
23
EJECTOR ASSY-FUEL
16064-001
Unavailable
24
CLAMP-TUBE
92037-1043
Unavailable
25
TUBE,OVERFLOW,3X5X200
92059-1015
Unavailable
26
RING-SNAP
92036-018
$3.89
27
CABLE ADJUSTER
16002-007
$11.09
28
BOOTS,CABLE ADJUSTER
49006-1010
$6.22
