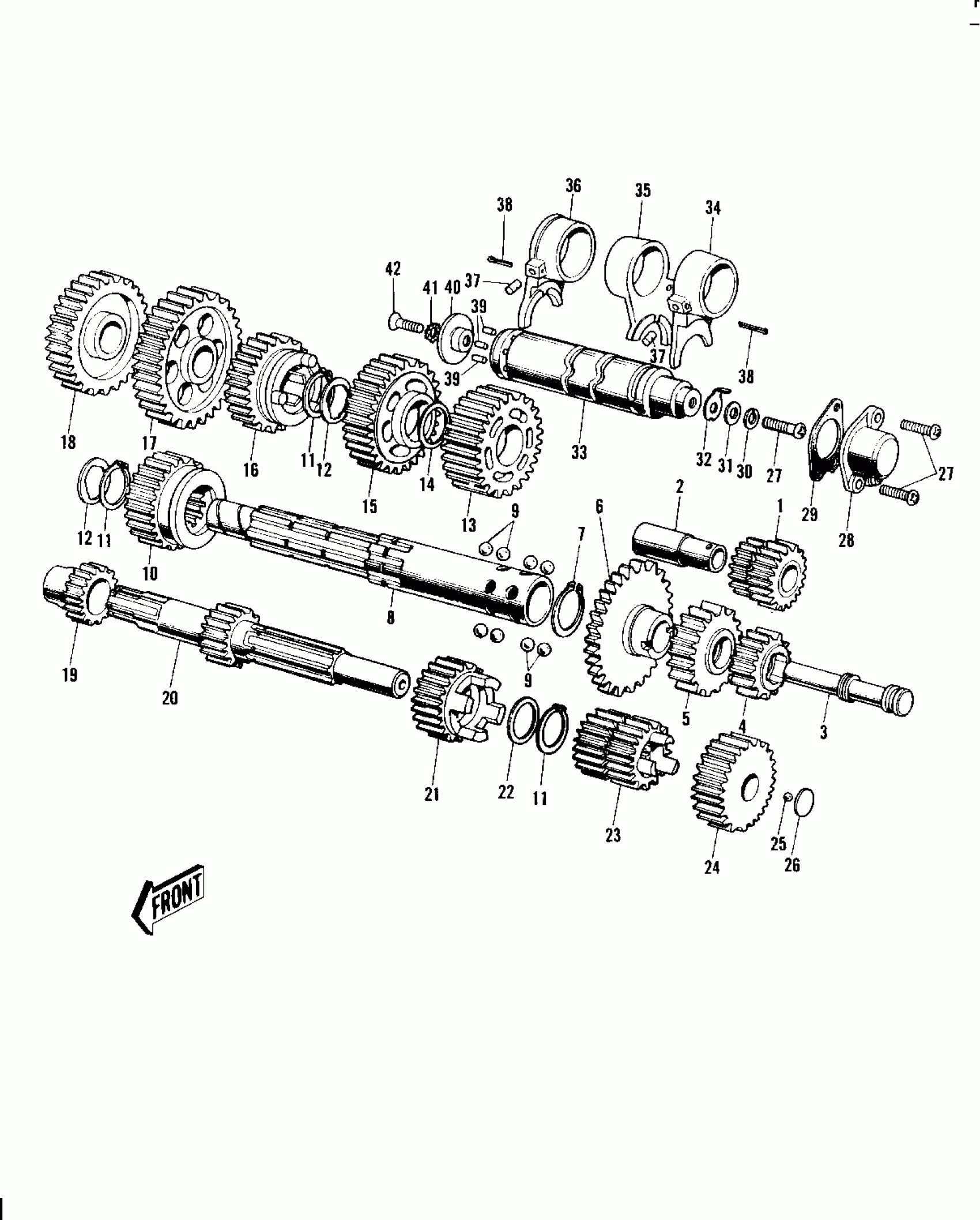

Kawasaki KV100-A7 TRANSMISSION/CHANGE DRUM 1/2 ('70-'73) Diagram
#
1
GEAR COUNTER
13177-005
Unavailable
2
SHAFT COUTER
13180-001
Unavailable
3
ROD,SHIFT
49047-1005
$72.57
3
ROD,SHIFT
49047-1005
Unavailable
4
GEAR LOW
13177-001
Unavailable
5
GEAR HIGH
13177-004
Unavailable
6
ENGINE SPROCKET 15T
13144-038
Unavailable
7
CIRCLIP-TYPE-C,24MM
480J2400
$6.32
8
SHAFT-OUTPUT
13128-035
Unavailable
8
SHAFT-OUTPUT
13128-035
Unavailable
9
BALL-STEEL,5/16
600A1000
$0.73
10
TOP GEAR OUTPUT SHAFT
13137-012
Unavailable
11
RING-SNAP,16MM
92033-014
$5.17
12
WASHER,TOOTHED,18.5X23X1.2
92024-030
$6.15
13
3RD GEAR OUTPUT SHAFT
13133-005
Unavailable
14
WASHER,THRUST,18.5X23X1.6
92022-146
$8.21
15
2ND GEAR OUTPUT SHAFT
13131-008
Unavailable
16
GEAR,OUTPUT 4TH,24T
13129-1708
$92.35
17
GEAR,OUTPUT LOW,35T
13129-010
$87.77
18
GEAR-SPUR,KICKSTARTER.IDLE,30T
13073-004
$74.27
19
GEAR-SPUR,KICKSTARTER PINION
13075-004
$52.38
20
SHAFT,DRIVE
13127-032
Unavailable
21
4TH GEAR,DRIVE
13129-1053
Unavailable
22
WASHER,18.5X23X1.2
92022-118
$4.69
23
2ND&3RD GEAR,DRIVE
13129-1052
Unavailable
24
GEAR,INPUT TOP,24T
13129-1927
Unavailable
25
BALL-STEEL,7/32"
600A0700
$1.64
26
WASHER,THRUST
92022-115
$4.39
27
SCREW-PAN-CROS,6X16
220B0616
$2.84
28
SWITCH,NEUTRAL
13151-1001
$14.51
28
SWITCH,NEUTRAL
13151-1001
$14.51
29
GASKET,NEUTRAL SWITCH
13146-002
$4.35
30
WASHER SPRING 6MM
461F0600
$0.69
31
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
32
ROTOR,TOP & NEUTRAL
21007-1003
$7.62
33
DRUM ASSY-GEAR CHANGE
13239-005
Unavailable
33
DRUM ASSY-GEAR CHANGE
13239-005
Unavailable
34
FORK SELECTOR 3RD
13140-009
Unavailable
35
FORK SELECTOR 4TH-TOP
13140-017
Unavailable
36
FORK SELECTOR LOW-2ND
13140-010
Unavailable
37
PIN SELECT FORK GUIDE
92043-005
Unavailable
38
PIN-COTTER,3.0X20
550D3020
$1.78
39
PIN,DOWEL,4X15.8
92042-014
$0.43
40
PLATE CHANGE DRUM PIN
13142-008
Unavailable
41
WASHER LOCK 6MM
464H0600
Unavailable
42
SCREW PAN HEAD 6X12
220B0612
Unavailable
