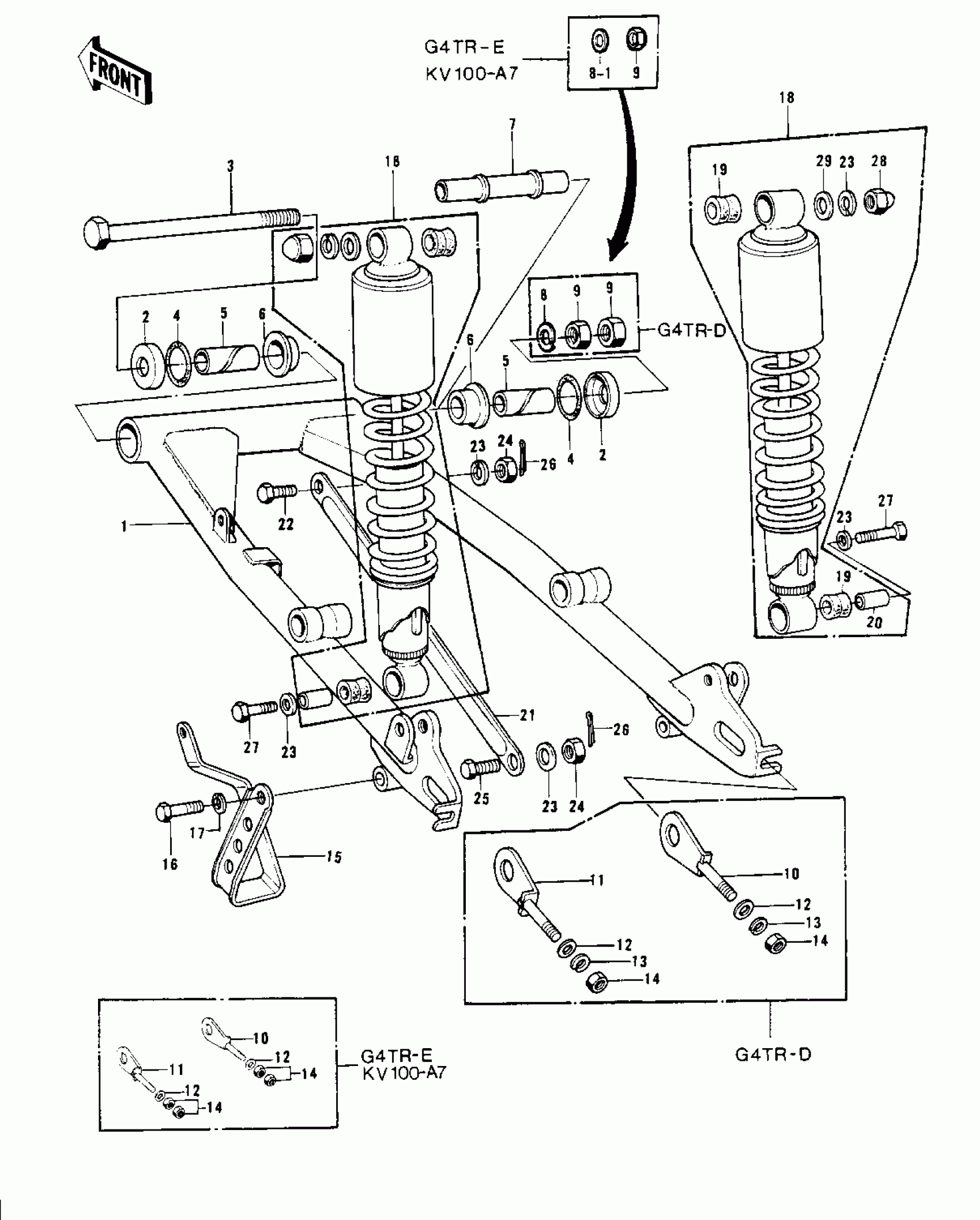

Kawasaki KV100-A7 SWING ARM/SHOCK ABSORBERS ('74-'75) Diagram
#
Description
Price
1
ARM,SWINGING
33001-060
$100.25
2
CAP-SWINGING ARM
33035-005
Unavailable
3
SHAFT-SWING ARM PIVOT
33032-029
Unavailable
3
SHAFT-SWING ARM PIVOT
33032-029
Unavailable
4
"0" RING,30MM
671B2530
$5.05
5
SLEEVE-SWINGING ARM
33034-016
$21.33
6
BUSHING-SWING ARM
33033-009
Unavailable
7
COLLAR SWING ARM
33036-002
Unavailable
8
WASHER-SPRING,12MM
461F1200
$0.96
8-1
WASHER-PLAIN-SMALL,12MM
410B1200
$0.70
9
NUT-HEX-FINE
315B1200
$0.93
9
NUT-LOCK,12MM
92019-009
$7.29
10
ADJUSTER CHAIN R.H
33040-039
Unavailable
11
ADJUSTER CHAIN L.H
33040-040
Unavailable
12
WASHER PLAIN 8MM
410B0800
$0.93
13
WASHER SPRING 8MM
461F0800
$0.40
14
NUT 8MM
312B0800
$0.58
14
NUT 8MM
312B0800
$0.58
15
GUARD,CHAIN
55020-013
$11.56
16
BOLT,8X20
115G0820
$5.14
17
WASHER SPRING 8MM
461F0800
$0.40
18
SHOCK ABSBR RR
45014-073
Unavailable
19
DAMPER,SHOCKABSORBER
92075-1020
$4.92
20
COLLAR,SHOCKABSORBER
45016-003
$15.92
21
TORQUE LINK REAR BRK
43007-018
Unavailable
22
BOLT,10X25
92003-017
Unavailable
23
WASHER SPRING 10MM
461F1000
$0.67
24
NUT-HEX-FINE,10MM
314B1000
$0.67
25
BOLT,10X32
92003-003
$6.22
26
PIN COTTER 2.0X15
550D2015
$1.04
27
BOLT HEX HEAD 10X35
113N1035
$9.14
28
NUT,CAP,10MM
92020-003
$6.52
29
WASHER,10.5X26X2.3
92022-044
$3.92
