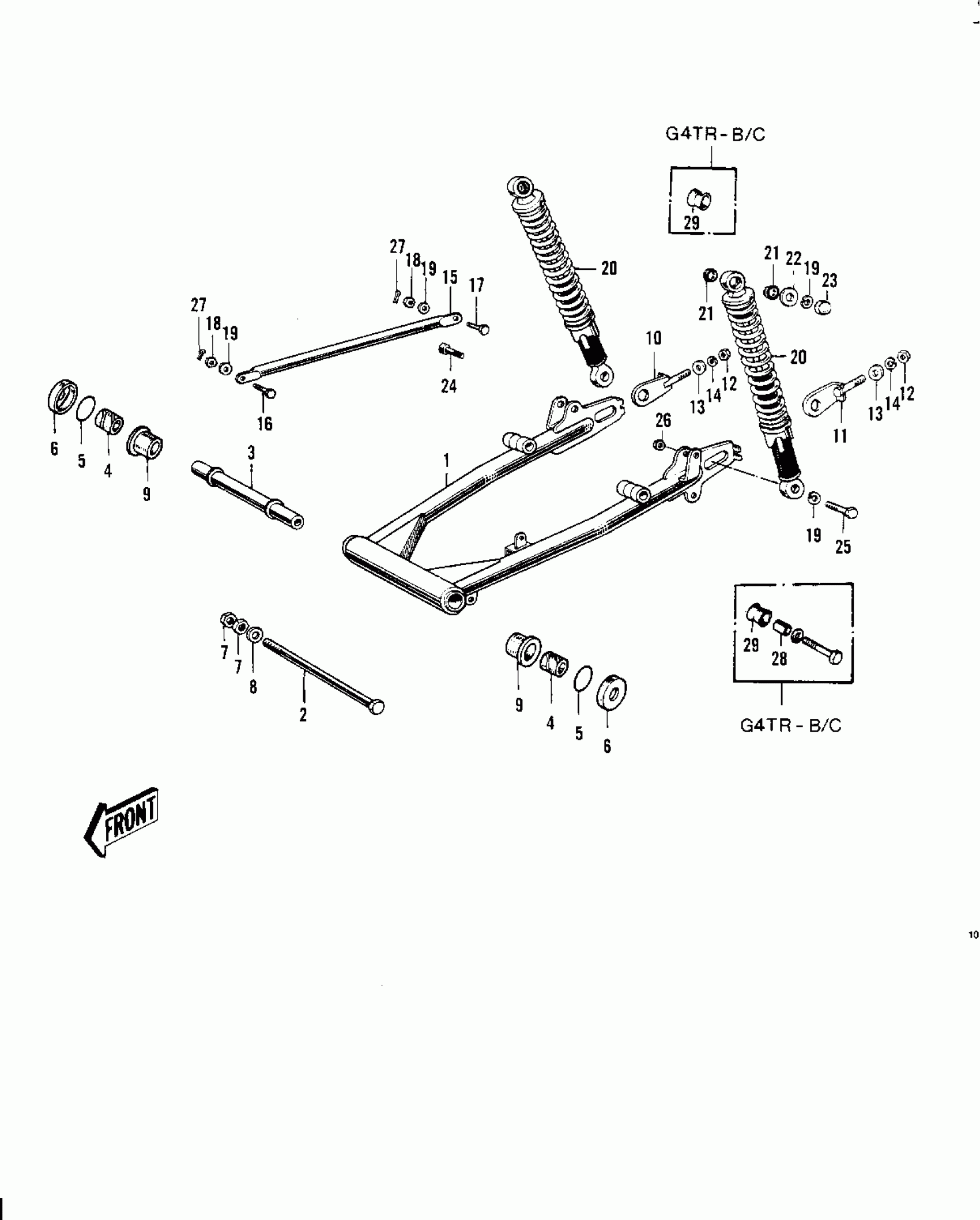

Kawasaki KV100-A7 SWING ARM/SHOCK ABSORBERS ('70-'73) Diagram

#

Description
Price

1

ARM-SWINGING

33001-034

$105.90

2

SHAFT SWING ARM PIVOT

33032-023

$6.08

3

COLLAR SWING ARM

33036-002

Unavailable

4

SLEEVE-SWINGING ARM

33034-016

$21.33

5

"0" RING,30MM

671B2530

$5.05

6

CAP-SWINGING ARM

33035-005

Unavailable

7

NUT-HEX-FINE

315B1200

$0.93

8

WASHER-SPRING,12MM

461F1200

$0.96

9

BUSHING-SWING ARM

33033-009

Unavailable

9

BUSHING-SWING ARM

33033-009

Unavailable

10

ADJUSTER CHAIN R.H

33040-039

Unavailable

11

ADJUSTER CHAIN L.H

33040-040

Unavailable

12

NUT 8MM

312B0800

$0.58

13

WASHER PLAIN 8MM

410B0800

$0.93

14

WASHER SPRING 8MM

461F0800

$0.40

15

TORQUE LINK REAR BRK

43007-018

Unavailable

16

BOLT,10X25

92003-017

Unavailable

17

BOLT,10X32

92003-003

$6.22

18

NUT-HEX-FINE,10MM

314B1000

$0.67

19

WASHER SPRING 10MM

461F1000

$0.67

20

SHOCK ABSBR RR

45014-069

Unavailable

20

SHOCK ABSBR RR

45014-069

Unavailable

20

SHOCK ABSBR RR

45014-071

Unavailable

20

SHOCK ABSBR RR

45014-073

Unavailable

21

BUSH SHOCK ABSORBER

45017-003

$2.73

22

WASHER,10.5X26X2.3

92022-044

$3.92

23

NUT,CAP,10MM

92020-003

$6.52

24

BOLT HEX HEAD 10X35

113N1035

$9.14

25

BOLT HEX HEAD 10X38

113N1038

$6.79

26

NUT-HEX-FINE,10MM

315B1000

$0.58

27

PIN COTTER 2.0X15

550D2015

$1.04

28

COLLAR,SHOCKABSORBER

45016-003

$15.92

29

DAMPER,SHOCKABSORBER

92075-1020

$4.92
