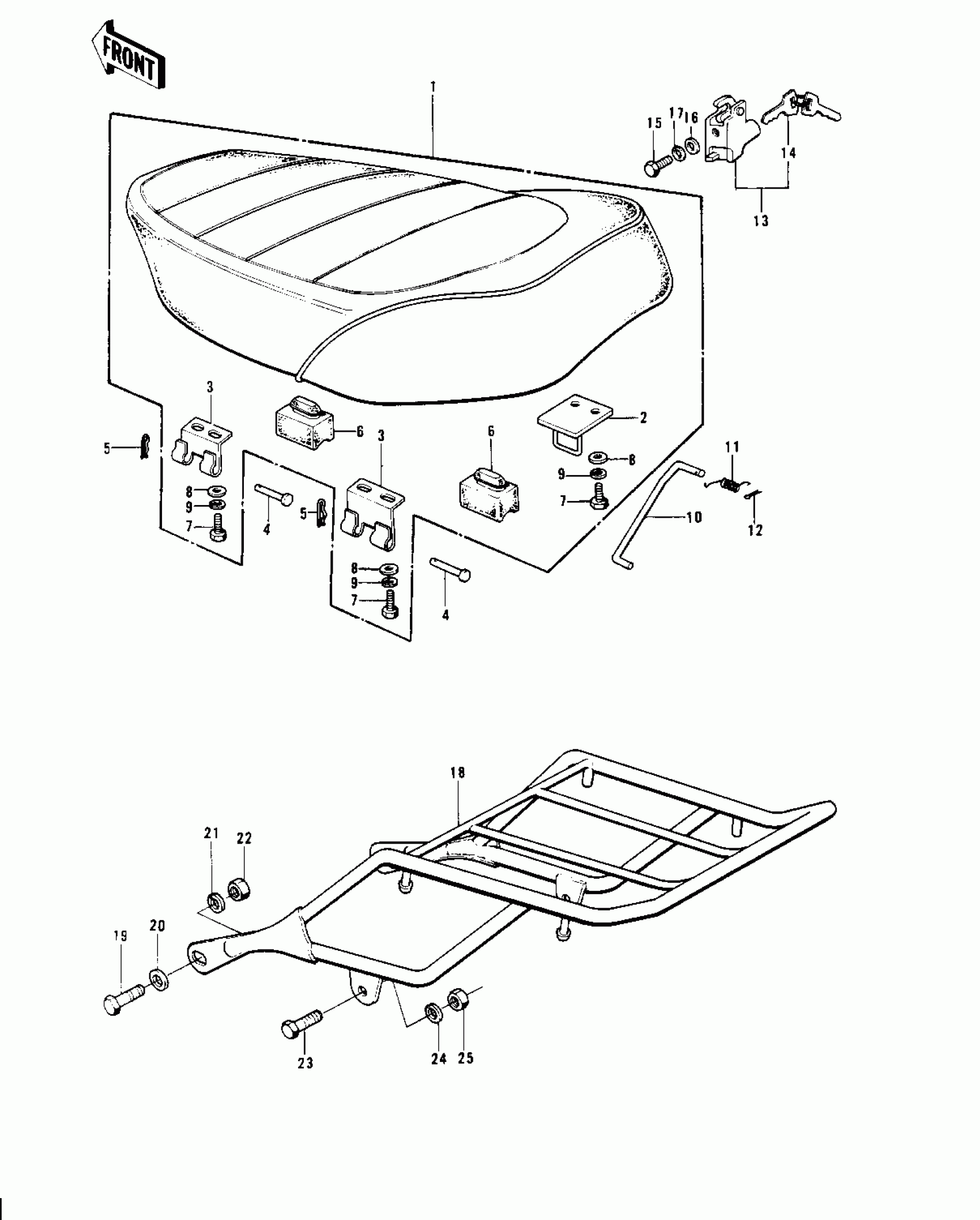

Kawasaki KV100-A7 SEAT/CARRIER ('74-'75) Diagram
#
Description
Price
1
SEAT ASSY,DUAL
53002-052
$166.46
1
SEAT ASSY,DUAL
53002-1017
$287.76
1
SEAT ASSY,DUAL
53002-1017
$287.76
2
HOOK,SEAT
53008-020
Unavailable
3
HINGE B
53009-018
Unavailable
4
PIN,6X48
53011-002
$5.96
5
COTTER PIN
92041-003
$5.72
6
DAMPER,SEAT
92075-216
Unavailable
7
BOLT-UPSET 6X14
112B0614
Unavailable
8
WASHER PLAIN 6MM
411B0600
$2.84
9
WASHER SPRING 6MM
461F0600
$0.69
10
STAY,SEAT
53054-003
Unavailable
11
SPRING,SEAT HOOK
53055-001
Unavailable
12
PIN COTTER 2.0X15
550D2015
$1.04
13
HOOK-ASSY,SEAT
53045-014
Unavailable
14
KEY SET,#401
27008-063-01
Unavailable
14
KEY SET,#410
27008-063-10
$21.47
15
BOLT-UPSET,6X12
112G0612
$1.45
16
WASHER PLAIN 6MM
411B0600
$2.84
17
WASHER SPRING 6MM
461F0600
$0.69
18
CARRIER,LUGGAGE
53029-050
$115.46
19
BOLT HEX HEAD 10X35
113N1035
$9.14
20
WASHER-PLAIN,10MM
411B1000
$0.93
21
WASHER SPRING 10MM
461F1000
$0.67
22
NUT-HEX-FINE,10MM
315B1000
$0.58
23
BOLT-SMALL,8X32
114N0832
$3.91
24
WASHER SPRING 8MM
461F0800
$0.40
25
NUT,8MM
311B0800
$0.67
