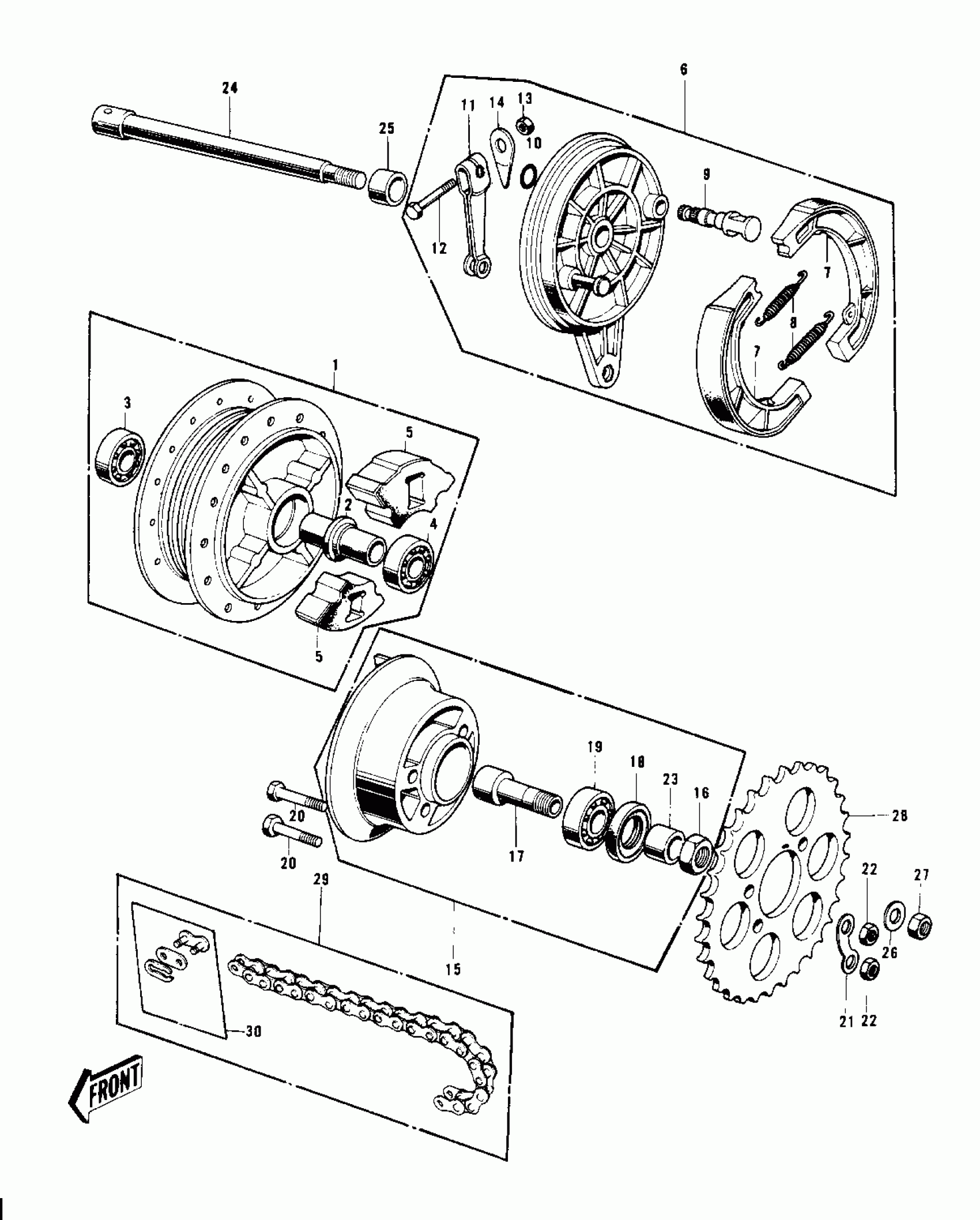

Kawasaki KV100-A7 REAR HUB/BRAKE/CHAIN ('74-'75) Diagram

#

Description
Price

1

DRUM ASSY,RR BRK,BUFF

42005-031-80

$211.80

2

COLLAR,L=58

42010-005

$12.76

3

BEARING-BALL,#6201C3

601B6201

$10.98

4

BEARING BALL #6301Z

601B6301Z

$14.46

5

DAMPER,RR HUB SHOCK

42014-016

$18.41

6

PANEL ASSY,RR BRK,BUF

42006-041-80

$137.79

6

PANEL-ASY,RR BRK,BUFF

42006-065-80

$108.72

7

SHOE-BRAKE

41048-1085

$22.53

8

SPRING,BRAKE SHOE

92081-1766

$8.03

9

CAM-BRAKE

41050-018

$23.50

9

CAM-BRAKE

42026-018

$33.87

10

RING-O,BRAKE CAM

92055-004

$4.80

11

LEVER,RR BRAKE PANEL

42029-029

$20.62

12

BOLT-UPSET

112G0630

$1.36

13

NUT,6MM

41072-007

$3.92

14

INDICATOR,BRAKE SHOE

41085-003

$14.51

15

COUPLING ASSY RR HUB

42033-011

$130.86

16

NUT,16MM

42045-004

$8.60

17

SLEEVE-RR HUB COUPLNG

42036-002

$31.74

18

SEAL-OIL,COUPLING

92052-003

$13.38

19

BEARING-BALL,#6203C3

601B6203

$14.12

20

BOLT,HUB SPROCKET,10X36

92001-082

$2.98

21

WASHER,LOCK

92088-011

$5.11

22

NUT-HEX-FINE,10MM

315B1000

$0.58

23

COLLAR,17X25X12.5

42037-003

$13.71

24

AXLE,12X215

41068-1109

$40.61

25

COLLAR-REAR HUB R.H

42032-002

Unavailable

26

WASHER-PLAIN-SMALL,12MM

410B1200

$0.70

26

WASHER PLAIN 12MM

411B1200

$0.93

27

NUT,10MM

42045-005

$7.98

28

REAR SPROCKET 42T

42041-076

Unavailable

28

SPROCKET-HUB,40T

42041-1095

$48.87

29

CHAIN,DRIVE,EK428-G

92057-1085

Unavailable

29

CHAIN,DRIVE,EK428-G

92057-1085

Unavailable

30

JOINT-CHAIN,EK428-G

92058-1014

$6.60

30

JOINT-CHAIN,EK428-G

92058-1014

$6.60
