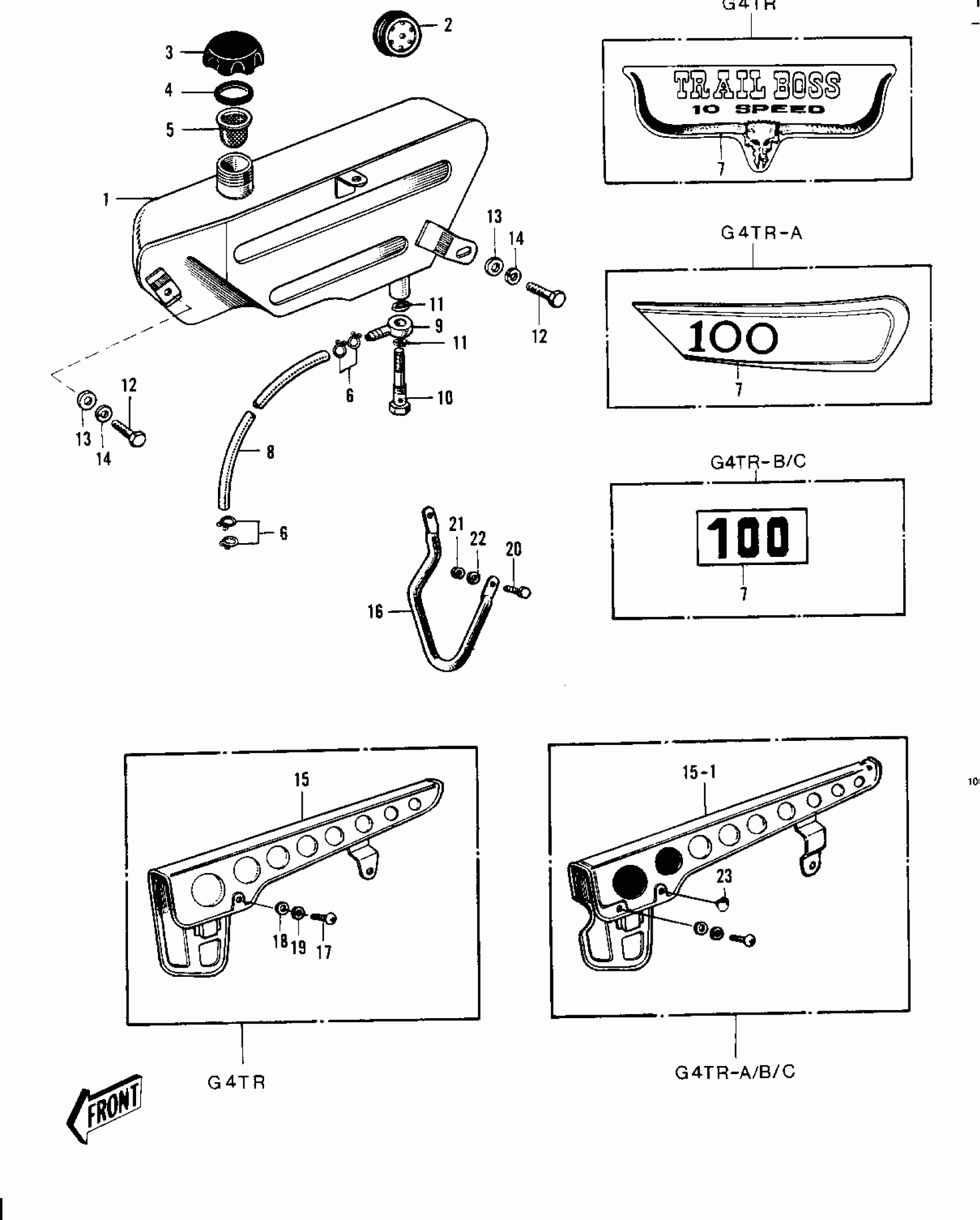

Kawasaki KV100-A7 OIL TANK/CHAIN COVER ('70-'73) Diagram
#
Description
Price
1
TANK OIL C.RED
52001-019-24
$102.80
1
TANK-OIL,P.C.ORANGE
52001-019-67
$87.98
1
TANK-OIL,F BLACK
52001-019-21
$87.98
2
GAUGE OIL LEVEL
52015-001
Unavailable
3
CAP OIL TANK
52003-001
$7.55
4
GASKET OIL TANK CAP
92065-018
$6.08
5
GASKET OIL TANK CAP B
52004-001
Unavailable
6
CLAMP,TUBE
92037-010
$3.92
7
EMBLEM OIL TANK
56018-027
Unavailable
7
EMBLEM,SILVER
56018-068-14
$12.88
7
EMBLEM-OIL TANK
56018-111
$8.37
7
EMBLEM-OIL TANK
56018-127
Unavailable
8
PIPE OIL TANK
92059-002
$38.33
9
CONNECTOR BANJO
92061-003
Unavailable
10
BOLT OIL TANK BANJO
92060-001
Unavailable
11
GASKET,10,2X15X1.5T
11009-1146
Unavailable
12
BOLT-UPSET,6X12
112G0612
$1.45
13
WASHER PLAIN 6MM
411B0600
$2.84
14
WASHER SPRING 6MM
461F0600
$0.69
15
CASE-CHAIN
36014-031
$30.83
15-1
CASE-CHAIN,BLACK
36014-037-21
$30.83
16
GUARD CHAIN
55020-003
$21.84
17
SCREW-PAN-CROS,6X14
220B0614
$1.48
18
WASHER PLAIN 6MM
411B0600
$2.84
19
WASHER SPRING 6MM
461F0600
$0.69
20
BOLT,8X20
115G0820
$5.14
21
NUT 8MM
312B0800
$0.58
22
WASHER SPRING 8MM
461F0800
$0.40
23
PLUG-RUBBER
92074-018
$2.29
