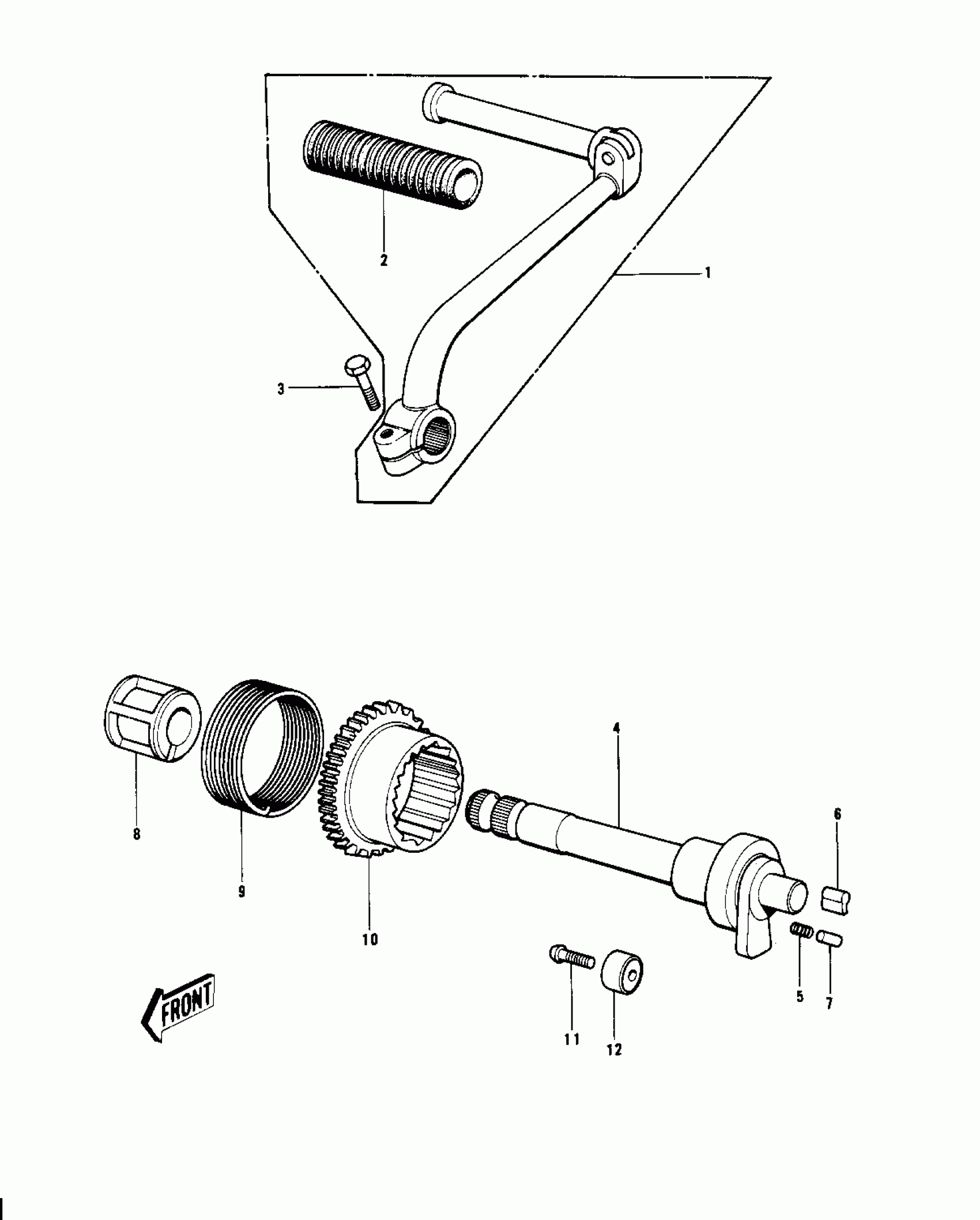

Kawasaki KV100-A7 KICKSTARTER MECHANISM ('70-'73) Diagram

#

Description
Price

1

PEDAL,KICKSTARTER

13064-012

Unavailable

2

DAMPER,PEDAL

13063-002

$5.00

3

BOLT-SMALL-UPSET 8X25

115G0825

$5.05

4

SHAFT-KICK

13066-1022

Unavailable

4

SHAFT-KICK

13066-1022

Unavailable

4

SHAFT-KICK

13066-1022

Unavailable

5

SPRING,KICK PAWL

92081-014

$4.74

6

PAWL,KICKSTARTER

13069-005

$14.51

7

PIN,DOWEL,3.9X10.8

92043-013

$4.39

7

PIN,DOWEL,3.9X10.8

92043-013

Unavailable

8

GUIDE KICK SPRING

13070-003

Unavailable

9

SPRING,KICKSTARTER RETURN

92083-004

$11.80

10

GEAR-SPUR,KICKSTARTER,35T

13068-007

$74.27

11

SCREW-CSK-CROS,6X20

221B0620

$2.40

12

STOPPER,KICKSTARTER

13072-003

$9.58
