Description

Price

1

LAMP UNIT,HEAD

23003-024

Unavailable

2

RIM,HEAD LAMP

23006-042

$62.05

3

RETAINER,SEALED BEAM

23072-002

$39.06

4

LENS-COMP,"4020" MARK

23007-055

Unavailable

5

SCREW ASSY,FOCUS AJST

23013-5001

Unavailable

6

SCREW SET,LENS UNIT

23013-007

$6.35

7

SPRING,HEAD LAMP LENS

23009-015

$5.44

8

COVER,HEAD LAMP SOCKET

23081-001

$8.08

9

SOCKET-ASSY,HEAD LAMP

23008-044

$22.32

9

SOCKET-ASSY,HEAD LAMP

23008-044

$22.32

10

SCREW,PAN HEAD,5X14

23019-025

$0.47

11

BODY,HEAD LAMP,BLACK

23005-049-21

$80.71

12

NUT-HEX-FINE,10MM

314B1000

$0.67

13

WASHER SPRING 10MM

461F1000

$0.67

14

DAMPER RUBBER

23066-011

Unavailable

15

COLLAR

23052-005

$15.16

16

WASHER-PLAIN,10MM

411D1000

$4.78

17

BOLT,HEX HEAD,10X30

92007-041

Unavailable

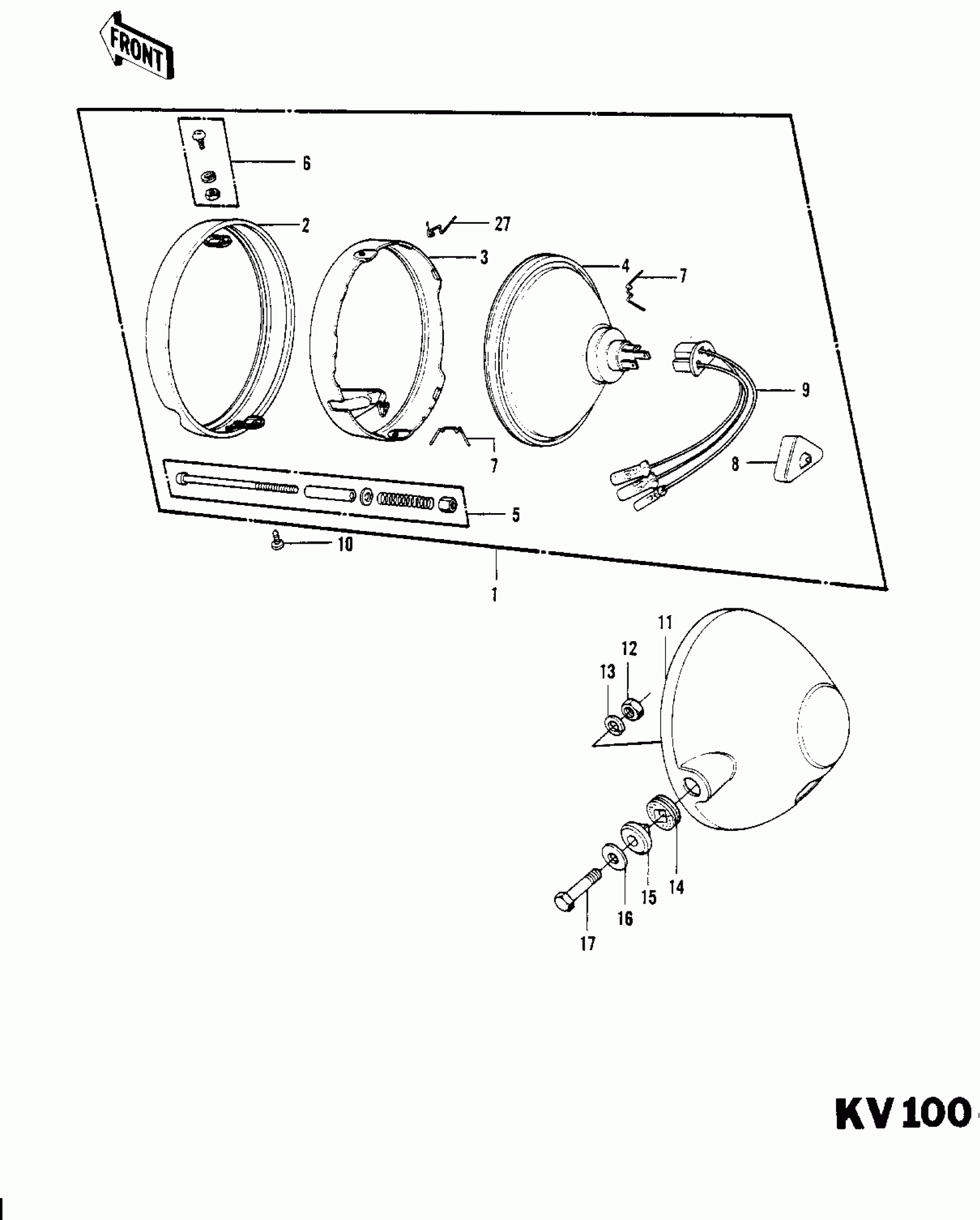

Kawasaki KV100-A7 HEADLIGHT KV100-A7 ('74-'75) Diagram

LAMP UNIT,HEAD

RIM,HEAD LAMP

RETAINER,SEALED BEAM

LENS-COMP,"4020" MARK

SCREW ASSY,FOCUS AJST

SCREW SET,LENS UNIT

SPRING,HEAD LAMP LENS

COVER,HEAD LAMP SOCKET

SOCKET-ASSY,HEAD LAMP

SOCKET-ASSY,HEAD LAMP

SCREW,PAN HEAD,5X14

BODY,HEAD LAMP,BLACK

NUT-HEX-FINE,10MM

WASHER SPRING 10MM

DAMPER RUBBER

COLLAR

WASHER-PLAIN,10MM

BOLT,HEX HEAD,10X30
