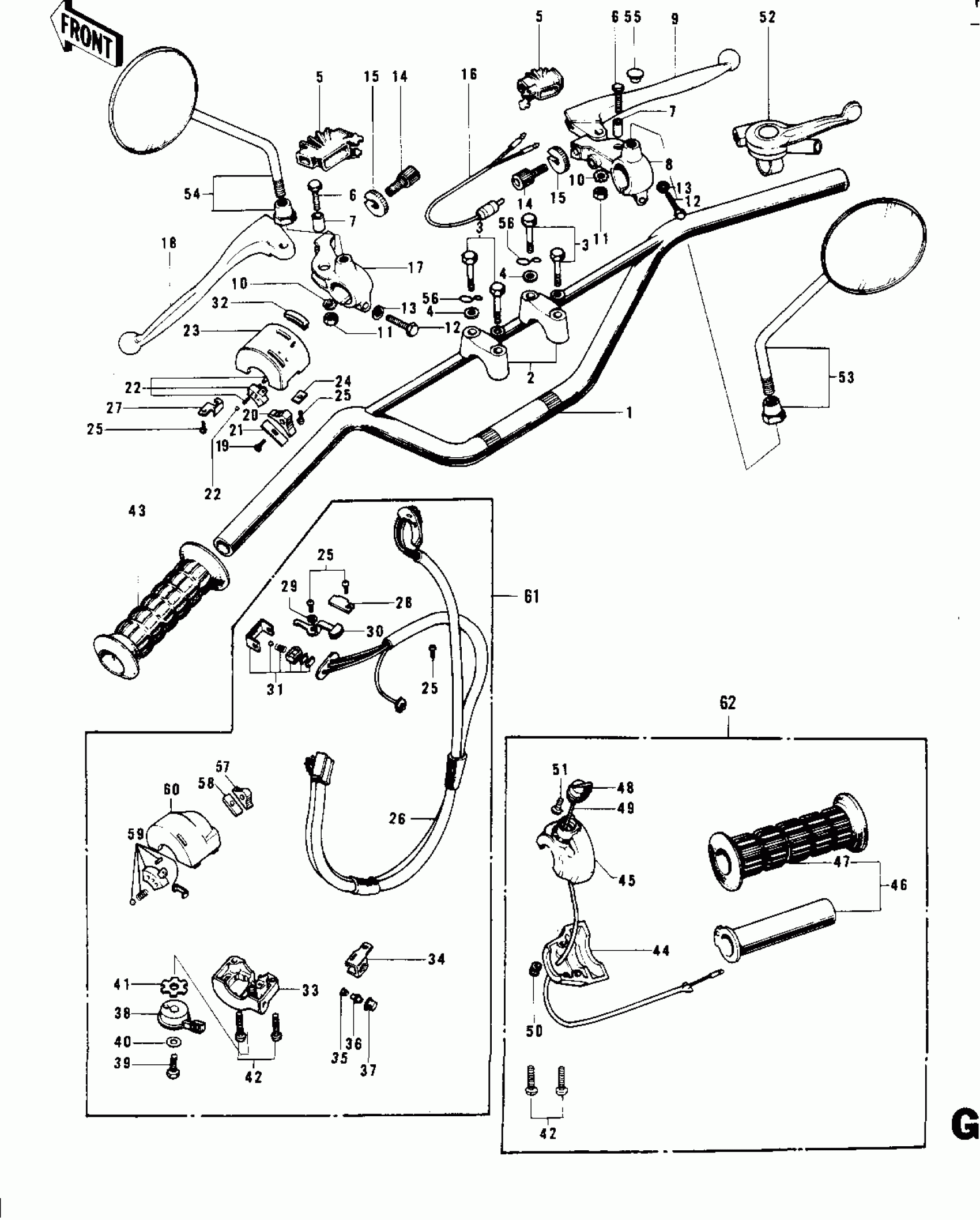

Kawasaki KV100-A7 HANDLEBAR G4TR-C 1/2 ('70-'73) Diagram
#
1
HANDLEBAR
46004-004
Unavailable
2
HOLDER-HANDLE,UPP
46012-008
$37.74
3
BOLT 8X38
92001-1405
$16.50
4
WASHER SPRING 8MM
461F0800
$0.40
5
DUST COVER
46071-002
Unavailable
6
BOLT HEX HEAD 5X20
92007-020
Unavailable
7
COLLAR LEVER
46059-011
Unavailable
8
HOLDER,BRAKE LEVER,FR,F.BLACK
46060-009-21
$40.69
9
LEVER-GRIP,FRONT BRAKE
46058-004
$24.84
10
WASHER LOCK 5MM
464H0500
$1.86
11
NUT-HEX,5MM
312B0500
$0.46
12
BOLT HEX HEAD 6X25
110N0625
$5.46
13
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
14
SCREW,CABLE ADJUST,8MM
46055-009
$19.07
15
NUT,CABLE ADJUST LOCK,8MM
46056-005
$8.86
16
SWITCH,FR BRAKE LAMP
27021-004
$35.78
17
HOLDER,F.BLACK
46094-011-21
Unavailable
18
LEVER-GRIP,CLUTCH
46092-015
Unavailable
19
SCREW CNTSNK HD 3X8
221B0308A
Unavailable
20
KNOB-LH SWITCH
46044-009
Unavailable
21
SPRING-L.H SW KNOB,B
46031-006
Unavailable
22
SWITCH-L.H.
46089-008
$9.54
23
CASE-L.H. UPPER
46086-015
$13.30
24
HOLDER-L.H SW UPPER,B
46085-019
$0.94
25
SCREW PAN HEAD 3X5
220B0305A
$0.59
26
WIRING HARNESS-LH SW
46082-020
Unavailable
27
HOLDER-LH SW UPPER,A
46085-020
$2.61
28
HOLDER-L.H SW LOWER,A
46085-016
$3.85
29
WASHER
92095-010
$3.64
30
KNOB-SWITCH
46044-010
Unavailable
31
SLIDE BLOCK AY-L.H SW
46089-007
$16.24
32
CAP-L.H. SWITCH
46089-009
Unavailable
33
CASE-L.H. LOWER
46077-017
$12.48
34
HOLDER-L.H SW LOWER,B
46085-017
$1.23
35
SWITCH,PUSH BUTTON
27010-1009
$9.20
36
SWITCH,PUSH BUTTON
27010-1009
$9.20
37
SWITCH,PUSH BUTTON
27010-1009
$9.20
37
SWITCH,PUSH BUTTON
27010-1009
$9.20
38
LEVER STARTER
46096-008-10
$25.62
39
BOLT HEX HEAD 6X8
110B0608
$0.18
40
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
41
WASHER LOCK
92095-012
Unavailable
42
SCREW-PAN-CROS,5X25
220B0525
$3.67
43
RUBBER-L.H.GRIP
46075-018
Unavailable
44
CASE-RH LOWER
46023-008
$25.62
45
CASE-RH UPPER
46041-008
$29.50
46
GRIP ASSY-THROTTLE
46019-020
Unavailable
47
RUBBER-R.H. GRIP
46061-013
Unavailable
48
SWITCH-ENGINE STOP
46027-008
Unavailable
49
WIRING HARNESS-STP SW
46082-021
$4.82
50
GROMMET-WIRING HARNES
92071-060
Unavailable
51
SCREW PAN HEAD 3X5
220B0305A
$0.59
52
LEVER-CHANGE
46131-002
Unavailable
53
MIRROR-ASSY,RH
56002-020
$67.12
54
MIRROR-ASSY,LH
56003-009
Unavailable
55
CAP-RR VIEW MIRROR
92102-009
Unavailable
56
CLAMP-CABLE
92037-075
Unavailable
57
KNOB-L.H SWITCH
46044-011
Unavailable
58
SPRING L.H SW KNOB
46031-003
Unavailable
59
SWITCH ASSY,L.H
46089-012
Unavailable
60
CASE-L.H UPPER,BLACK
46086-016-21
Unavailable
61
CASE ASSY,L.H,BLACK
46091-019-10
Unavailable
62
CASE ASSY,R.H,BLACK
46018-020-10
Unavailable
