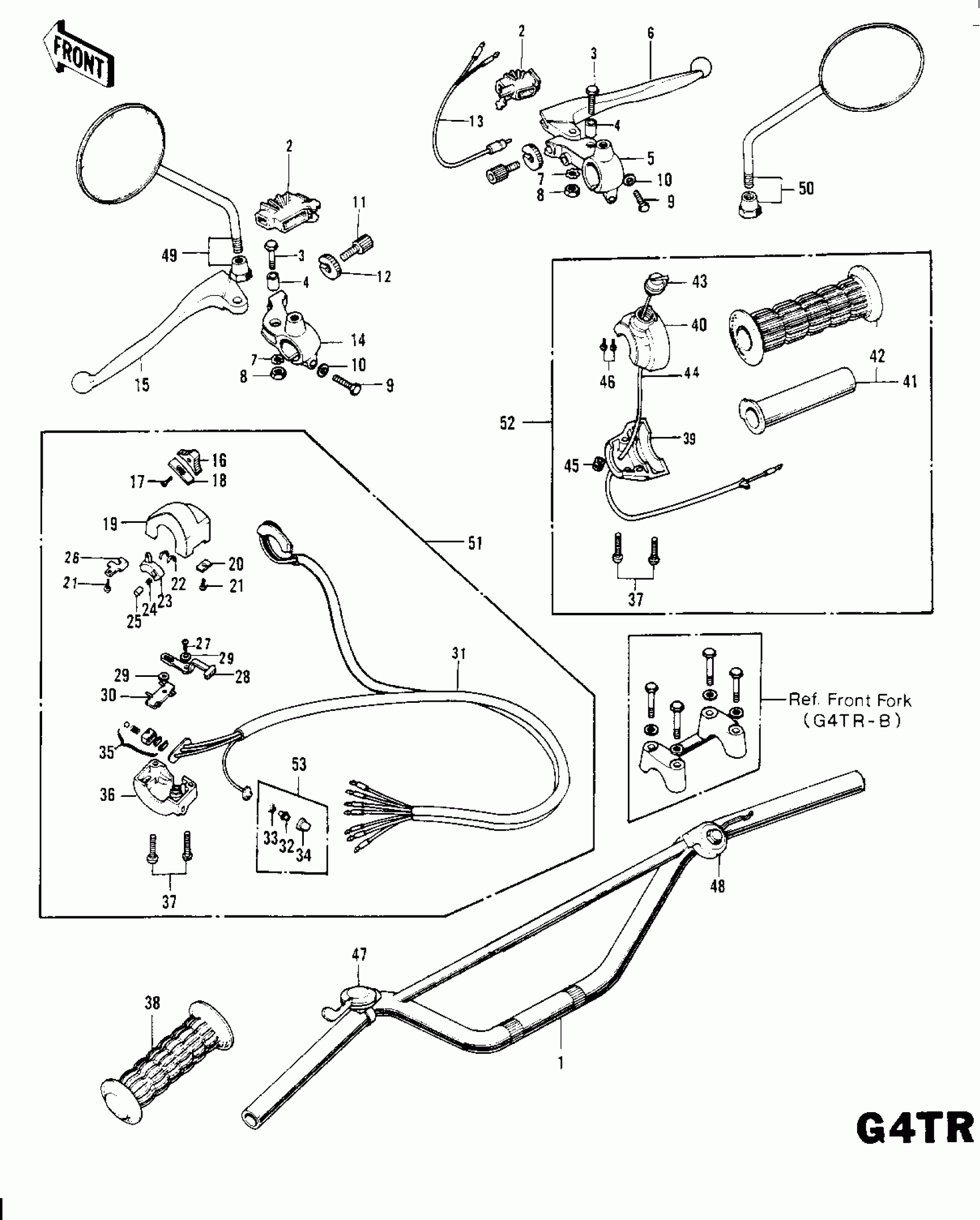

Kawasaki KV100-A7 HANDLEBAR G4TR-B 1/2 ('70-'73) Diagram
#
1
HANDLEBAR
46004-004
Unavailable
2
DUST COVER
46071-002
Unavailable
3
BOLT HEX HEAD 5X20
92007-020
Unavailable
4
COLLAR LEVER
46059-011
Unavailable
5
HOLDER,BRAKE LEVER,FR,F.BLACK
46060-009-21
$40.69
6
LEVER-GRIP,FRONT BRAKE
46058-004
$24.84
7
WASHER LOCK 5MM
464H0500
$1.86
8
NUT-HEX,5MM
312B0500
$0.46
9
BOLT HEX HEAD 6X25
110N0625
$5.46
10
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
11
SCREW,CABLE ADJUST,8MM
46055-009
$19.07
12
NUT,CABLE ADJUST LOCK,8MM
46056-005
$8.86
13
SWITCH,FR BRAKE LAMP
27021-004
$35.78
14
HOLDER,F.BLACK
46094-011-21
Unavailable
14
HOLDER,F.BLACK
46094-011-21
Unavailable
15
LEVER-GRIP,CLUTCH
46092-015
Unavailable
16
KNOB-L.H SWITCH
46044-011
Unavailable
17
SCREW CNTSNK HD 3X8
221B0308A
Unavailable
18
SPRING L.H SW KNOB
46031-003
Unavailable
19
CASE L.H SWITCH UPPER
46086-013
$12.76
20
HOLDER L.H SW UPPER A
46085-013
$1.76
21
SCREW PAN HEAD 3X5
220B0305A
$0.59
22
PLATE L.H SW CONTACT
46080-002
$1.76
23
SWITCH L.H
46089-003
Unavailable
24
SPRING L.H SWITCH
46031-004
$1.84
25
CONTACT L.H SWITCH
46079-002
$1.76
26
HOLDER L.H SW LOWER B
46085-014
$1.73
27
SCREW-PAN-CROS,3X8
220B0308
$0.59
28
KNOB-SWITCH
46044-006
$4.93
29
WASHER
92095-010
$3.64
30
HOLDER L.H SW LOWER
46085-015
$1.35
31
WIRING HARNESS-L.H SW
46082-017
$25.42
32
SWITCH,PUSH BUTTON
27010-1009
$9.20
33
SWITCH,PUSH BUTTON
27010-1009
$9.20
34
SWITCH,PUSH BUTTON
27010-1009
$9.20
35
SLIDE BLOCK AY-L.H SW
46089-004
$7.37
36
CASE L.H SWITCH LOWER
46077-015
$13.52
37
SCREW-PAN-CROS,5X25
220B0525
$3.67
38
RUBBER-L.H.GRIP
46075-018
Unavailable
39
CASE-RH LOWER
46023-008
$25.62
40
CASE-RH UPPER
46041-008
$29.50
41
GRIP ASSY-THROTTLE
46019-020
Unavailable
42
RUBBER-R.H. GRIP
46061-013
Unavailable
43
SWITCH-ENGINE STOP
46027-008
Unavailable
44
WIRING HARNESS-STP SW
46082-021
$4.82
45
GROMMET-WIRING HARNES
92071-060
Unavailable
46
SCREW PAN HEAD 3X5
220B0305A
$0.59
47
LEVER ASSY,STARTER
46109-012
Unavailable
47
LEVER ASSY,STARTER
46109-012
Unavailable
48
LEVER-CHANGE
46131-002
Unavailable
49
MIRROR-ASSY,LH
56003-009
Unavailable
50
MIRROR-ASSY,RH
56002-020
$67.12
51
CASE ASSY-L.H
46091-004
Unavailable
52
CASE ASSY,R.H,BLACK
46018-020-10
Unavailable
53
SWITCH,PUSH BUTTON
27010-1009
$9.20
