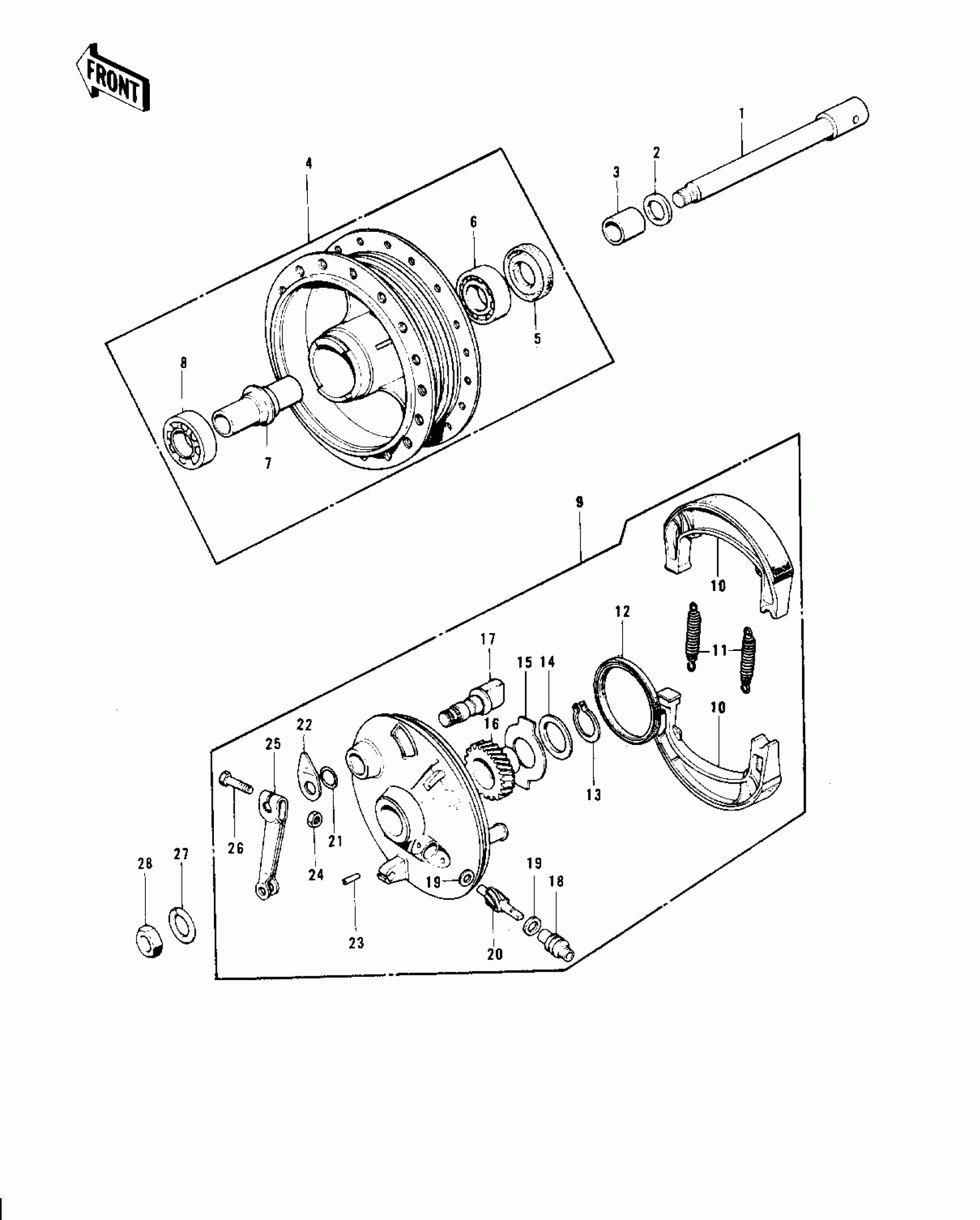

Kawasaki KV100-A7 FRONT HUB/BRAKE ('74-'75) Diagram

#

Description
Price

1

AXLE,FR

41068-039

Unavailable

2

DUST SHIELD FRNT DRUM

41042-002

Unavailable

3

COLLAR FRONT HUB R.H

41069-002

Unavailable

4

DRUM-ASSY,FR BRK

41034-1040

Unavailable

5

OIL SEAL FRONT DRUM

92050-003

Unavailable

6

BEARING BALL #6200

601B6200

$14.85

7

COLLAR,L=51

41039-002

$10.96

8

BEARING BALL #6300Z

601B6300Z

$13.02

9

PANEL-ASY,FR BRK BUFF

41035-071-80

Unavailable

9

PANEL-ASY,FR BRK BUFF

41035-071-80

Unavailable

10

SHOE-BRAKE

41048-1085

$22.53

10

SHOE-BRAKE

41048-1085

$22.53

11

SPRING,BRAKE SHOE

92081-1766

$8.03

12

SEAL-OIL,BRAKE PANEL

92050-002

$14.64

13

CIRCLIP-TYPE-C,15MM

480J1500

$2.31

14

WASHER SPEED GR THRST

41065-002

$3.55

15

RECIEVER SPEED GEAR

41064-002

$2.27

15

RECEIVER-SPEEDOMETER

41064-010

$9.89

16

GEAR SPEEDOMETER

41059-006

$20.13

16

GEAR-METER SCREW,22T

41059-022

$35.11

17

ROD END BRK CONNECT A

41058-002

$15.77

17

CAM-BRAKE

41050-018

$23.50

18

BUSHING,SPEEDOMETER CABLE

41062-005

$19.48

19

WASHER,5.1X9X0.4

41063-001

$4.69

20

GEAR-METER SCREW,8T

41060-004

$21.74

21

RING-O,BRAKE CAM

92055-004

$4.80

22

INDICATOR,BRAKE SHOE

41085-002

$13.88

22

INDICATOR,BRAKE SHOE

41085-008

$13.88

23

PIN,SPRING

41082-001

$3.92

24

NUT,6MM

41072-007

$3.92

25

LEVER-BRAKE CAM

41053-005

$15.47

26

BOLT-UPSET

112G0630

$1.36

27

WASHER SPRING 10MM

461F1000

$0.67

28

NUT,10MM

42045-005

$7.98
