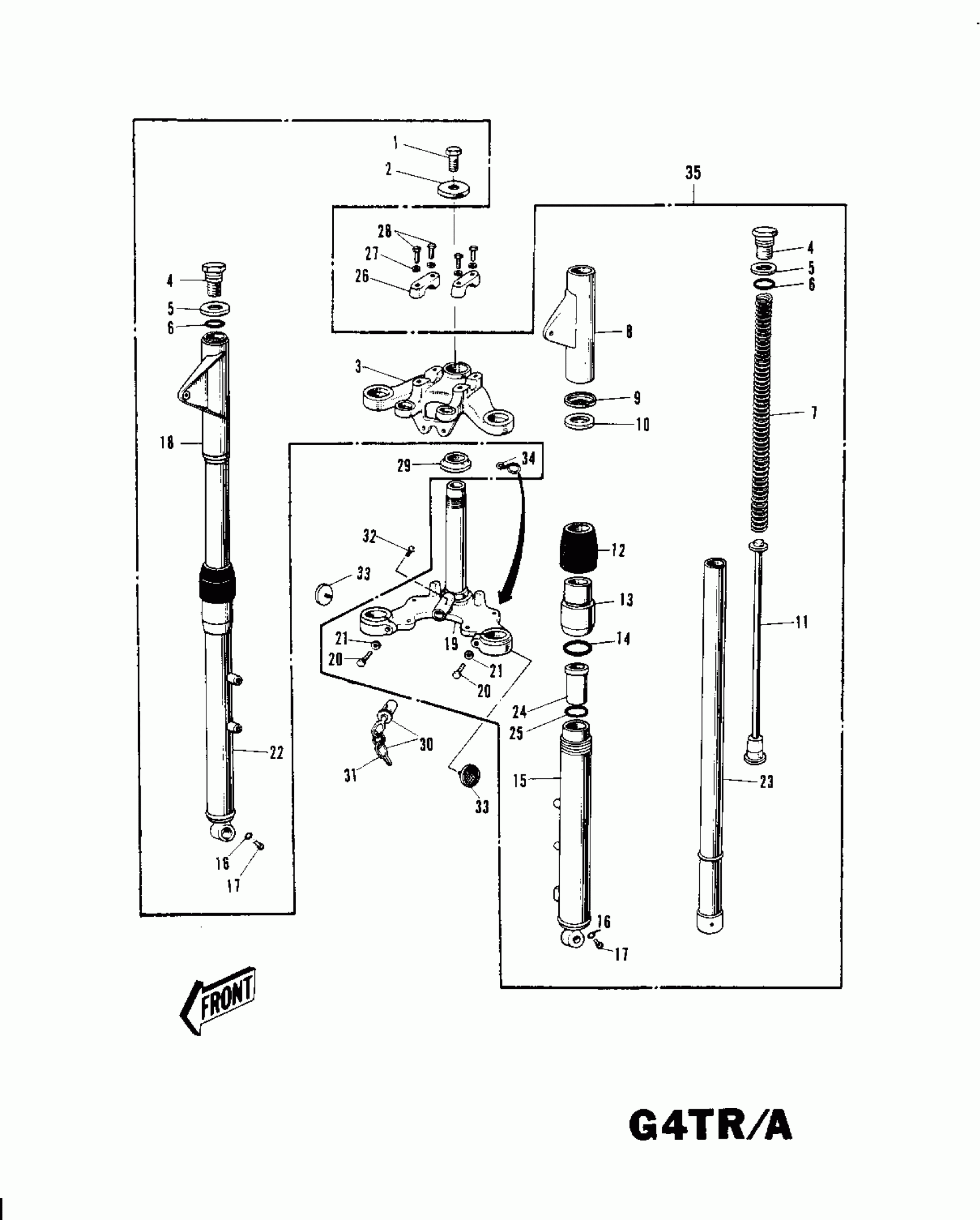

Kawasaki KV100-A7 FRONT FORK G4TR/A 1/2 ('70-'73) Diagram
#
1
BOLT STRNG STEM HEAD
44041-007
$16.04
2
WASHER STRNG STEM HD
44043-016
$10.99
3
HEAD-STRNG STEM,BLACK
44039-034-21
Unavailable
3
HEAD-STRNG STEM,BLACK
44039-034-21
Unavailable
4
BOLT FORK TOP
44041-022
$22.30
5
WASHER FORK TOP
44043-014
$2.73
6
'O' RING INNER TUBE
44046-014
Unavailable
7
SPRING-FORK
44026-029
Unavailable
7
SPRING-FORK
44026-029
Unavailable
8
COVER L.H FORK SILVER
44033-027-15
Unavailable
8
COVER-L.H FORK,BLACK
44033-027-21
$26.23
9
WASHER FORK COVER
44043-035
Unavailable
10
GASKET FORK COVER
44045-012
Unavailable
11
HOLDER FORK SPRING
44028-008
$25.55
12
DUST SHIELD FORK
44010-006
Unavailable
13
NUT FORK OUTER TUBE
44007-007
$59.31
14
'O' RING OUTER TUBE
44046-012
Unavailable
15
TUBE,LH,FORK OUTER
44005-024-15
$83.35
16
GASKET,FORK DRAIN PLUG
44045-002
$5.18
17
SCREW PAN HEAD 4X8
220B0408
$0.67
18
COVER-R.H FORK SILVER
44034-026-15
Unavailable
18
COVER-R.H FORK,BLACK
44034-026-21
$27.10
19
STEM STEERING
44037-027
Unavailable
20
BOLT HEX HEAD 10X32
113B1032
Unavailable
21
WASHER SPRING 10MM
461F1000
$0.67
22
TUBE,RH,FORK OUTER
44006-023-15
$76.92
23
TUBE-INNER
44013-029
$113.96
23
TUBE-INNER
44013-029
$113.96
24
GUIDE FORK INNER TUBE
44015-012
$9.27
25
OIL SEAL
92049-1049
$21.20
25
OIL SEAL
92049-1049
$21.20
26
HOLDER-HANDLE,UPP
46012-004
Unavailable
26
HOLDER-HANDLE,UPP
46012-008
$37.74
27
WASHER SPRING 8MM
461F0800
$0.40
28
BOLT 8X38
92001-1405
$16.50
28
BOLT 8X38
92001-1405
$16.50
29
RACE,LOWER BEARING
92047-004
$16.97
30
LOCK ASSY,STEERING
27016-5025
Unavailable
30
LOCK ASSY,STEERING
27016-5025
Unavailable
32
RIVET
92099-001
$3.89
33
REFLECTOR REFLEX
28001-007
$6.43
34
CLAMP,CABLE
92037-046
$4.97
35
FRONT FORK ASY,SILVER
44001-071-15
$271.79
35
FORK-FRONT,BLACK
44001-071-21
$487.62
