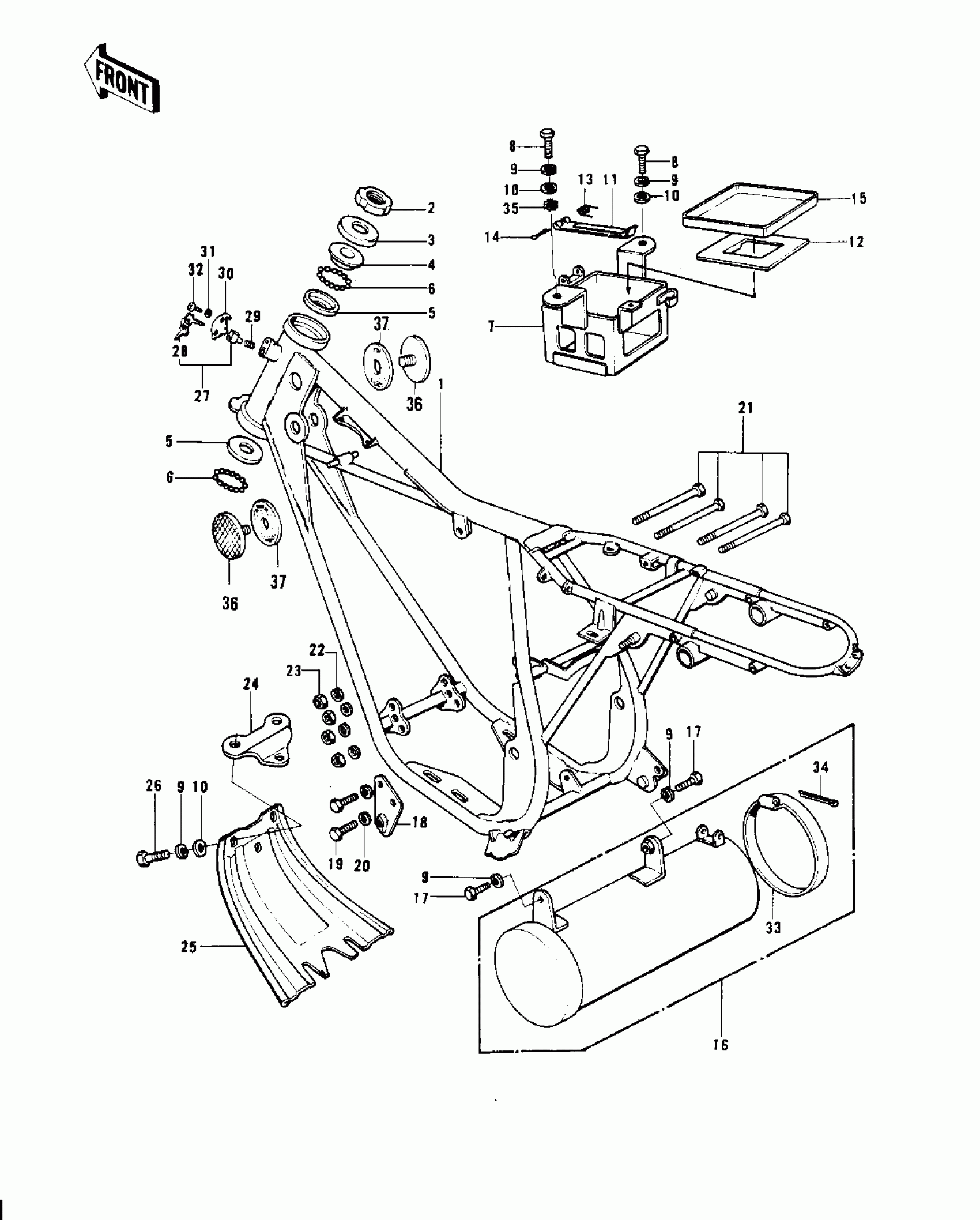

Kawasaki KV100-A7 FRAME/FRAME FITTINGS ('74-'75) Diagram

#

Description
Price

1

FRAME

32002-073

$193.96

1

FRAME

32002-111

$346.20

1

FRAME

32002-138

$417.63

2

NUT STEERING STEM LCK

92090-006

$14.24

3

CAP,STEERING STEM

46098-004

$5.37

4

RACE,STEERING STEM BEARING

92047-006

$12.39

5

RACE,BEARING

92048-004

$11.03

6

BALL-STEEL,3/16

600A0600

$1.02

7

CASE,BATTERY

32097-029

$42.63

8

BOLT-UPSET,6X16

112G0616

Unavailable

9

WASHER SPRING 6MM

461F0600

Unavailable

10

WASHER PLAIN 6MM

411B0600

Unavailable

11

BAND-BATTERY

92072-037

Unavailable

12

MAT-BATTERY

32103-024

Unavailable

13

SPRING-RETURN

92083-017

Unavailable

14

PIN-COTTER,2.5X35

550D2535

Unavailable

15

MAT-BATTERY

32103-018

Unavailable

16

CASE,TOOL

32098-021

Unavailable

17

BOLT-UPSET,6X12

112G0612

Unavailable

18

BRACKET,ENGINE MOUNT

32029-065

$5.68

19

BOLT,8X20

115G0820

Unavailable

20

WASHER SPRING 8MM

461F0800

Unavailable

21

BOLT,HEX HEAD,10X117

92001-1246

$12.31

22

WASHER SPRING 10MM

461F1000

Unavailable

23

NUT-HEX-FINE,10MM

314B1000

Unavailable

24

BRACKET,ENGINE GUARD

55012-003

$6.75

25

GUARD,ENGINE

55011-019

$16.93

26

BOLT-UPSET 6X14

112B0614

Unavailable

27

LOCK-ASSY,STEERING

27016-042

$46.56

28

KEY SET,#401

27008-063-01

Unavailable

28

KEY SET,#410

27008-063-10

Unavailable

29

SPRING,STEERING LOCK

27032-001

Unavailable

30

CAP,STEERING LOCK

11012-1134

$5.95

31

WASHER,WAVE

92097-003

$3.43

32

SCREW,3.51MM

92008-007

$3.14

33

CAP-TOOL CASE

32099-005

Unavailable

34

PIN COTTER 2.0X30

550D2030

$1.32

35

WASHER LOCK 6MM

464H0600

Unavailable

36

REFLECTOR,REFLEX,REAR

28012-009

$24.56

37

DAMPER,REFLECTOR

92094-011

$4.08
