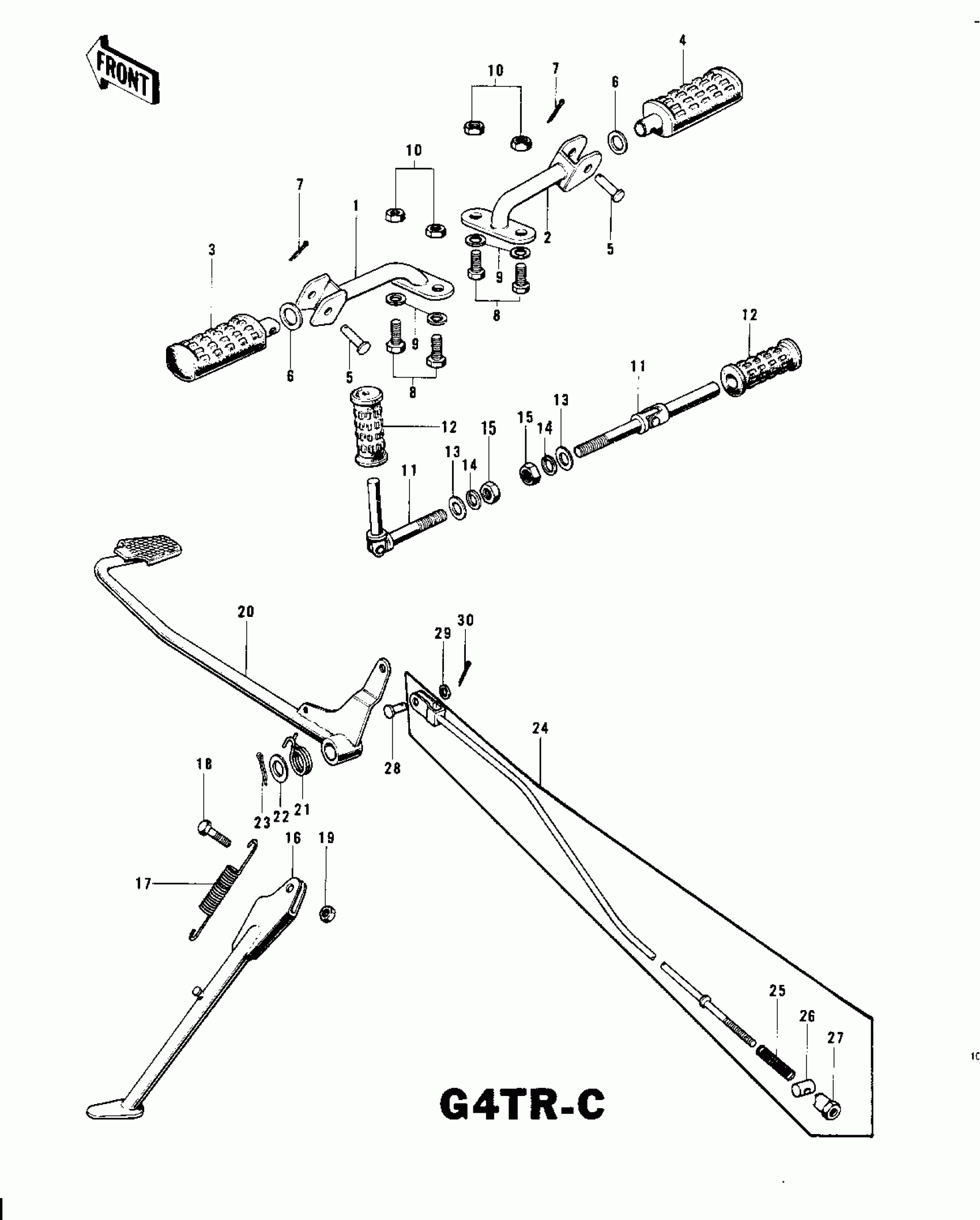

Kawasaki KV100-A7 FOOTRESTS/STAND/BRAKE PEDAL G4TR-C ('70- Diagram
#
Description
Price
1
BAR,L.H FOOTREST
34003-047
$54.32
1
BAR,L.H FOOTREST
34003-047
$54.32
2
BAR,R.H FOOTREST
34003-048
$54.32
2
BAR,R.H FOOTREST
34003-048
$54.32
3
STEP-ASSY,FR,LH
34027-1114
$35.42
3
STEP-ASSY,FR,LH
34027-1114
$35.42
4
STEP-ASSY,FR,RH
34027-1115
$42.54
4
STEP-ASSY,FR,RH
34027-1115
$42.54
5
PIN,8X31
92043-080
$5.52
6
WASHER PL 22.5X36X2.3
92022-204
Unavailable
7
PIN-COTTER,2.5X15
550D2515
$0.47
8
BOLT-UPSET,10X20
112B1020
Unavailable
9
WASHER PLAIN 10MM
410B1000
$0.58
10
NUT-HEX-FINE,10MM
315B1000
$0.58
11
STEP,RR
34028-009
$26.11
12
RUBBER,REAR FOOTREST
92076-024
$24.87
13
WASHER-PLAIN (OPT)
92022-199
Unavailable
14
WASHER SPRING 10MM
461F1000
$0.67
15
NUT-HEX-FINE,10MM
314B1000
$0.67
16
STAND-SIDE
34024-035
$35.05
17
SPRING,SIDE STAND
34025-001
Unavailable
18
BOLT,HEX HEAD,10X25
113G1025
Unavailable
19
NUT-HEX-FINE,10MM
315B1000
$0.58
20
PEDAL-BRAKE
43001-045
$23.70
21
SPRING,BRAKE PEDAL
43005-007
Unavailable
22
WASHER BRAKE PEDAL
92022-085
$3.92
23
PIN-COTTER,3.0X30
550D3030
$2.51
24
ROD ASSY,BRAKE
43010-016
$22.13
24
ROD ASSY,BRAKE
43010-016
$22.13
25
SPRING,BRAKE ROD
43012-001
$4.65
26
PIN,BRAKE ROD
92043-039
$6.38
27
NUT,BRAKE ROD
92015-042
$6.22
28
PIN,6X11
92043-092
$4.69
29
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
30
PIN COTTER 2.0X15
550D2015
$1.04
