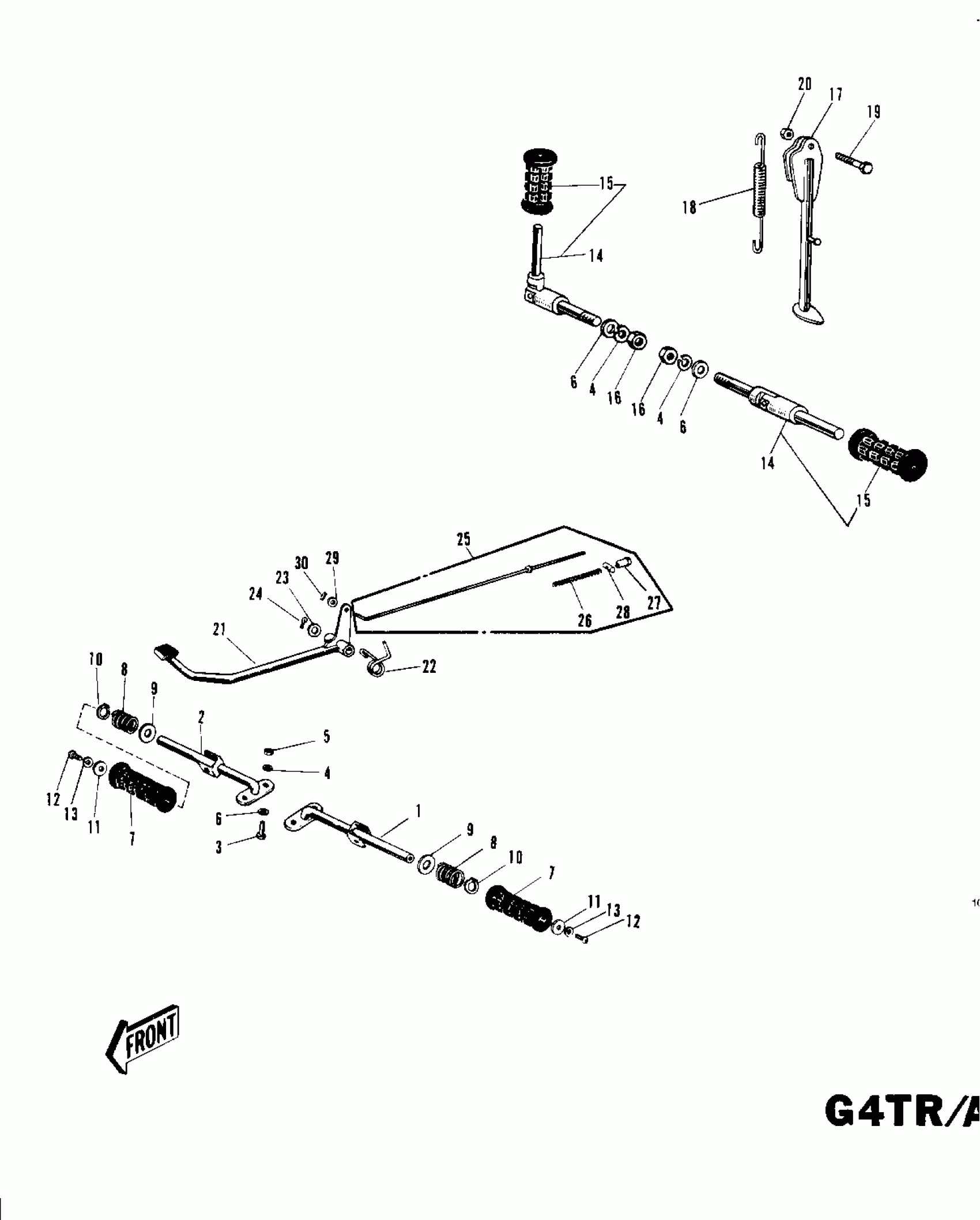

Kawasaki KV100-A7 FOOTRESTS/STAND/BRAKE PEDAL G4TR/A/B ('7 Diagram
#
Description
Price
1
BAR FOOTREST L.H
34003-018
$25.77
2
BAR FOOTREST R.H
34003-019
$27.05
3
BOLT-UPSET,10X20
112B1020
Unavailable
4
WASHER SPRING 10MM
461F1000
$0.67
5
NUT-HEX-FINE,10MM
315B1000
$0.58
6
WASHER PLAIN 10MM
410B1000
$0.58
7
RUBBER FOOTREST
92076-006
$18.94
8
SPRING FOOTREST PEG
34006-002
Unavailable
9
WASHER FOLDING PEG
92022-049
Unavailable
10
CIRCLIP-TYPE-C,16MM
480J1600
$4.31
11
WASHER PLAIN
92022-024
$3.65
12
SCREW-PAN-CROS,6X20,WHITE
220B0620
$5.82
13
WASHER SPRING 6MM
461F0600
$0.69
14
BAR SET-REAR FOOTREST
34030-001
Unavailable
15
RUBBER REAR FOOTREST
92076-008
Unavailable
16
NUT-HEX-FINE,10MM
314B1000
$0.67
17
STAND-SIDE
34024-035
$35.05
18
SPRING,SIDE STAND
34025-001
Unavailable
19
BOLT,HEX HEAD,10X25
113G1025
Unavailable
20
NUT-HEX-FINE,10MM
315B1000
$0.58
21
PEDAL-BRAKE
43001-045
$23.70
22
SPRING,BRAKE PEDAL
43005-007
Unavailable
23
WASHER BRAKE PEDAL
92022-085
$3.92
24
PIN-COTTER,3.0X30
550D3030
$2.51
25
BRAKE ROD ASSY
43010-5003
Unavailable
25
BRAKE ROD ASSY
43010-5003
Unavailable
25
BRAKE ROD ASSY
43010-5003
Unavailable
26
SPRING,BRAKE ROD
43012-001
$4.65
27
NUT,BRAKE ROD
92015-042
$6.22
27
NUT,BRAKE ROD
92015-042
Unavailable
28
PIN,BRAKE ROD
92043-039
$6.38
29
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
30
PIN COTTER 2.0X15
550D2015
$1.04
