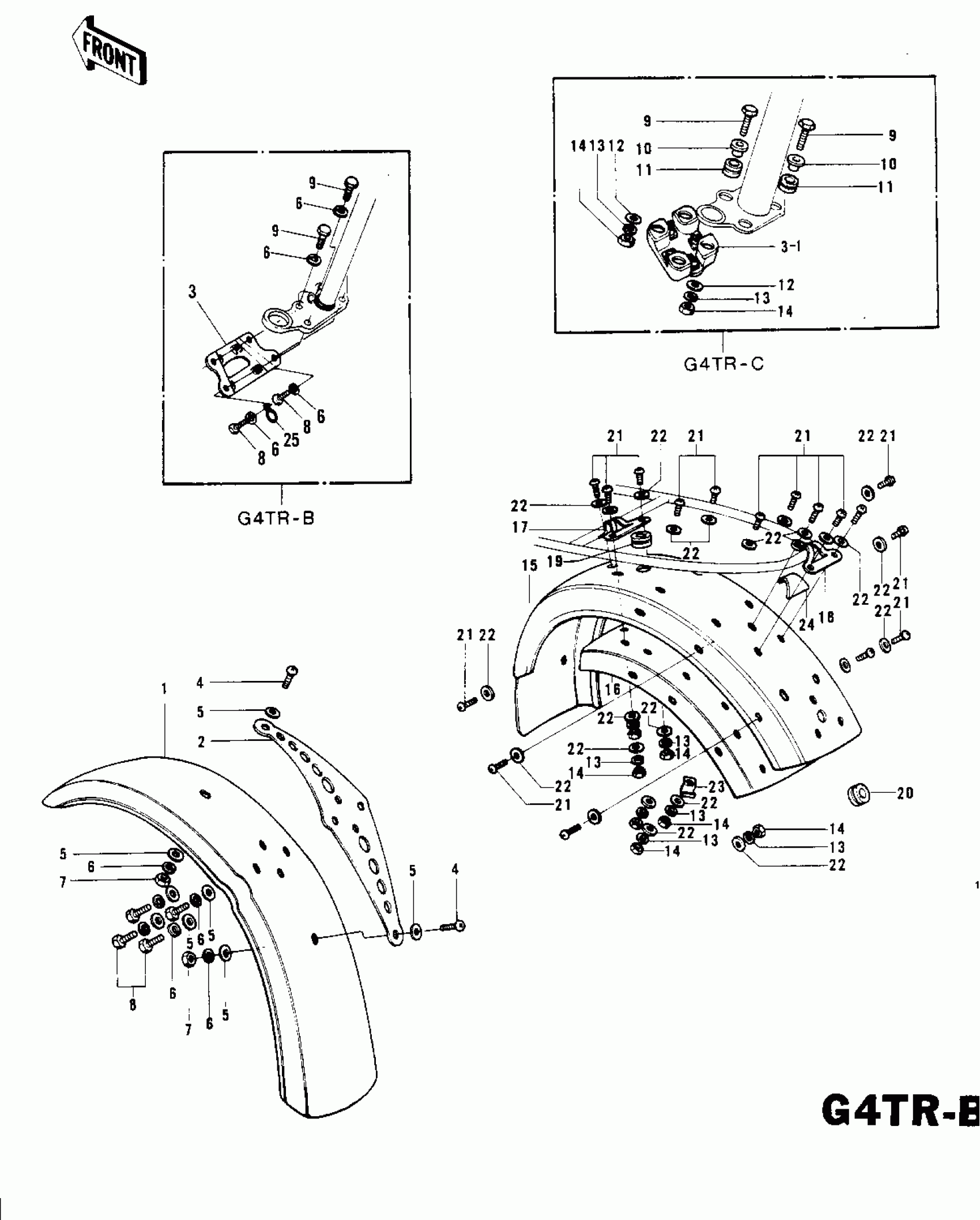

Kawasaki KV100-A7 FENDERS G4TR-B/C ('70-'73) Diagram

#

Description
Price

1

FENDER-FR

35004-069

Unavailable

1

FENDER-FR

35004-070

Unavailable

2

PLATE FRONT FENDER

35013-003

$7.22

2

PLATE-FRONT FENDER

35013-011

Unavailable

3

BRACKET FRONT FENDER

35012-010

Unavailable

3-1

BRACKET-FRONT FENDER

35012-017

$8.56

4

SCREW PAN HEAD 6X10

220E0610

Unavailable

5

WASHER PLAIN 6MM

411B0600

Unavailable

6

WASHER SPRING 6MM

461F0600

Unavailable

7

NUT 6MM

312B0600

Unavailable

8

BOLT-UPSET,6X12

112G0612

Unavailable

8

BOLT-UPSET,6X12

112G0612

Unavailable

9

BOLT 6X22

112B0622

Unavailable

9

BOLT-UPSET

112G0630

Unavailable

10

COLLAR

92027-153

$4.67

11

DAMPER RUBBER

92075-051

$2.99

12

WASHER,6.5X20X1.6

92022-125

$1.08

13

WASHER SPRING 6MM

461F0600

Unavailable

14

NUT 6MM

311B0600

Unavailable

14

NUT 6MM

311B0600

Unavailable

15

FENDER-REAR

35022-070

$64.27

15

FENDER-RR

35022-073

$94.49

16

GUSSET-REAR FENDER

35034-015

$21.98

16

GUSSET-REAR FENDER

35034-018

$20.81

17

BRACKET REAR FENDER

35025-016

$3.24

18

BRACKET REAR FENDER

35025-017

$4.15

19

GROMMET HARNESS 10MM

92071-010

Unavailable

20

GROMMET,10MM

92071-019

$2.97

21

SCREW-PAN-CROS,6X14

220B0614

$1.14

22

WASHER PLAIN 6MM

411B0600

Unavailable

23

CLIP WIRING HARNESS

35024-002

Unavailable

24

RUBBER R FEND SUPPORT

32103-015

$1.10

25

CLAMP,CABLE

92037-046

$4.41
