Description

Price

1

FENDER-FR

35004-069

Unavailable

1

FENDER-FR

35004-069

Unavailable

2

BRACKET FRONT FENDER

35012-010

Unavailable

3

PLATE FRONT FENDER

35013-003

$7.74

4

BOLT-UPSET,6X12

112G0612

$1.45

5

BOLT 6X22

112B0622

$3.48

6

SCREW PAN HEAD 6X10

220E0610

$3.89

7

WASHER PLAIN 6MM

411B0600

$2.84

8

WASHER SPRING 6MM

461F0600

$0.69

9

NUT 6MM

312B0600

$0.72

10

FENDER-RR

35022-047

$79.07

11

BRACKET REAR FENDER

35025-016

$3.85

12

BRACKET REAR FENDER

35025-017

$4.73

13

GUSSET REAR FENDER

35021-003

$7.32

14

GROMMET,10MM

92071-019

$3.89

15

CLIP WIRING HARNESS

35024-002

Unavailable

16

SCREW PAN HEAD 6X12

220B0612

Unavailable

17

NUT 6MM

311B0600

$0.93

18

RUBBER R FEND SUPPORT

32103-015

$1.23

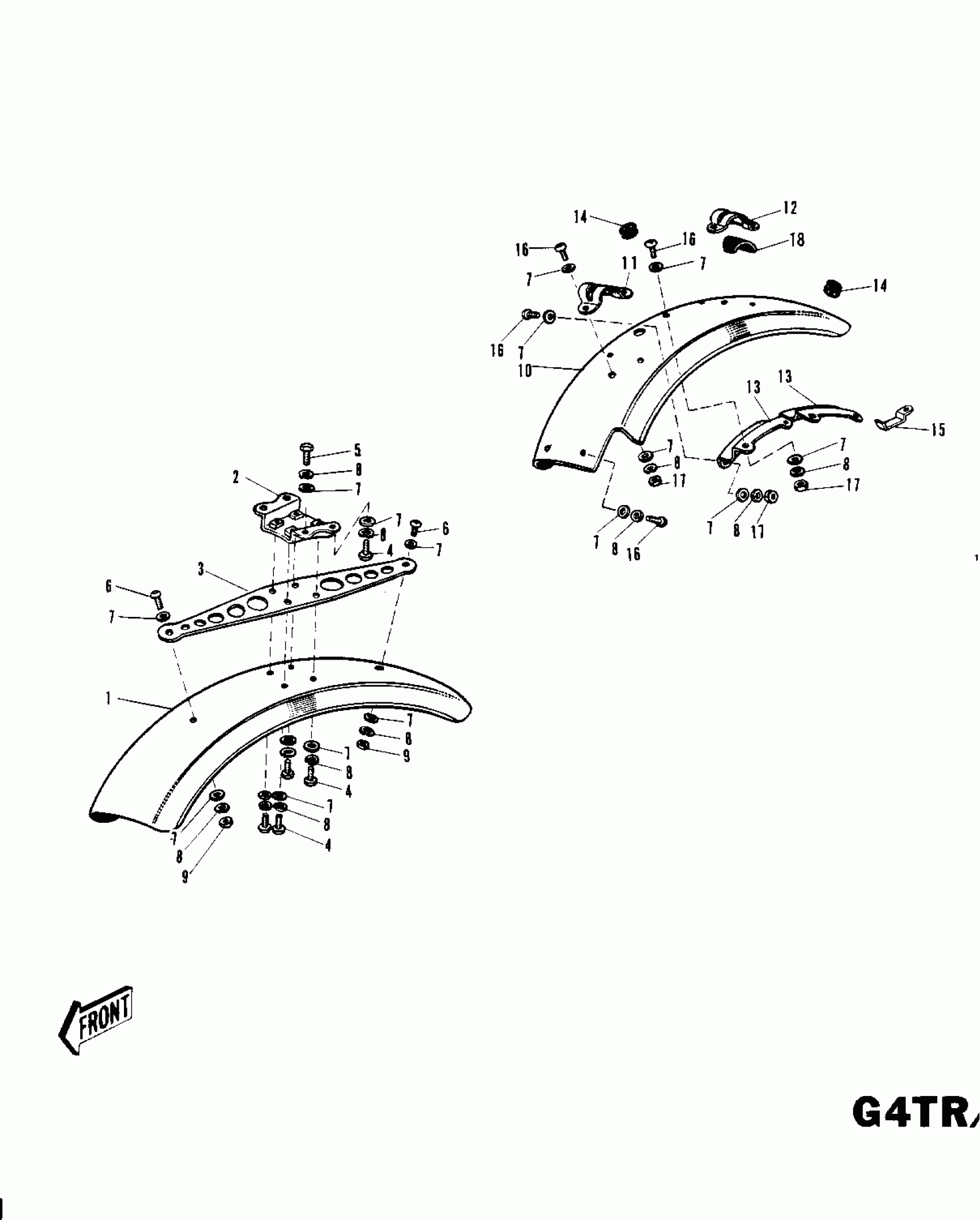

Kawasaki KV100-A7 FENDERS G4TR/A ('70-'73) Diagram

FENDER-FR

FENDER-FR

BRACKET FRONT FENDER

PLATE FRONT FENDER

BOLT-UPSET,6X12

BOLT 6X22

SCREW PAN HEAD 6X10

WASHER PLAIN 6MM

WASHER SPRING 6MM

NUT 6MM

FENDER-RR

BRACKET REAR FENDER

BRACKET REAR FENDER

GUSSET REAR FENDER

GROMMET,10MM

CLIP WIRING HARNESS

SCREW PAN HEAD 6X12

NUT 6MM

RUBBER R FEND SUPPORT
