Description

Price

1

FENDER-FR

35004-083

Unavailable

2

BRACKET-FRONT FENDER

35012-017

$9.27

3

BOLT-UPSET,6X12

112G0612

$1.45

4

WASHER PLAIN 6MM

411B0600

$2.84

5

WASHER SPRING 6MM

461F0600

$0.69

6

BOLT-UPSET

112G0630

$1.36

7

COLLAR

92027-153

$6.22

8

DAMPER RUBBER

92075-051

$3.92

9

WASHER,6.5X20X1.6

92022-125

$1.40

10

NUT 6MM

311B0600

$0.93

11

FENDER-RR

35022-098

Unavailable

12

BRACKET,REAR FENDER

32065-065

$3.44

13

SCREW-PAN-CROS,6X16

220B0616

$2.84

14

WASHER PLAIN 6MM

411B0600

$2.84

15

WASHER SPRING 6MM

461F0600

$0.69

16

NUT 6MM

311B0600

$0.93

17

CLIP WIRING HARNESS

35024-002

Unavailable

18

GROMMET HARNESS 10MM

92071-010

Unavailable

19

GROMMET,10MM

92071-019

$3.89

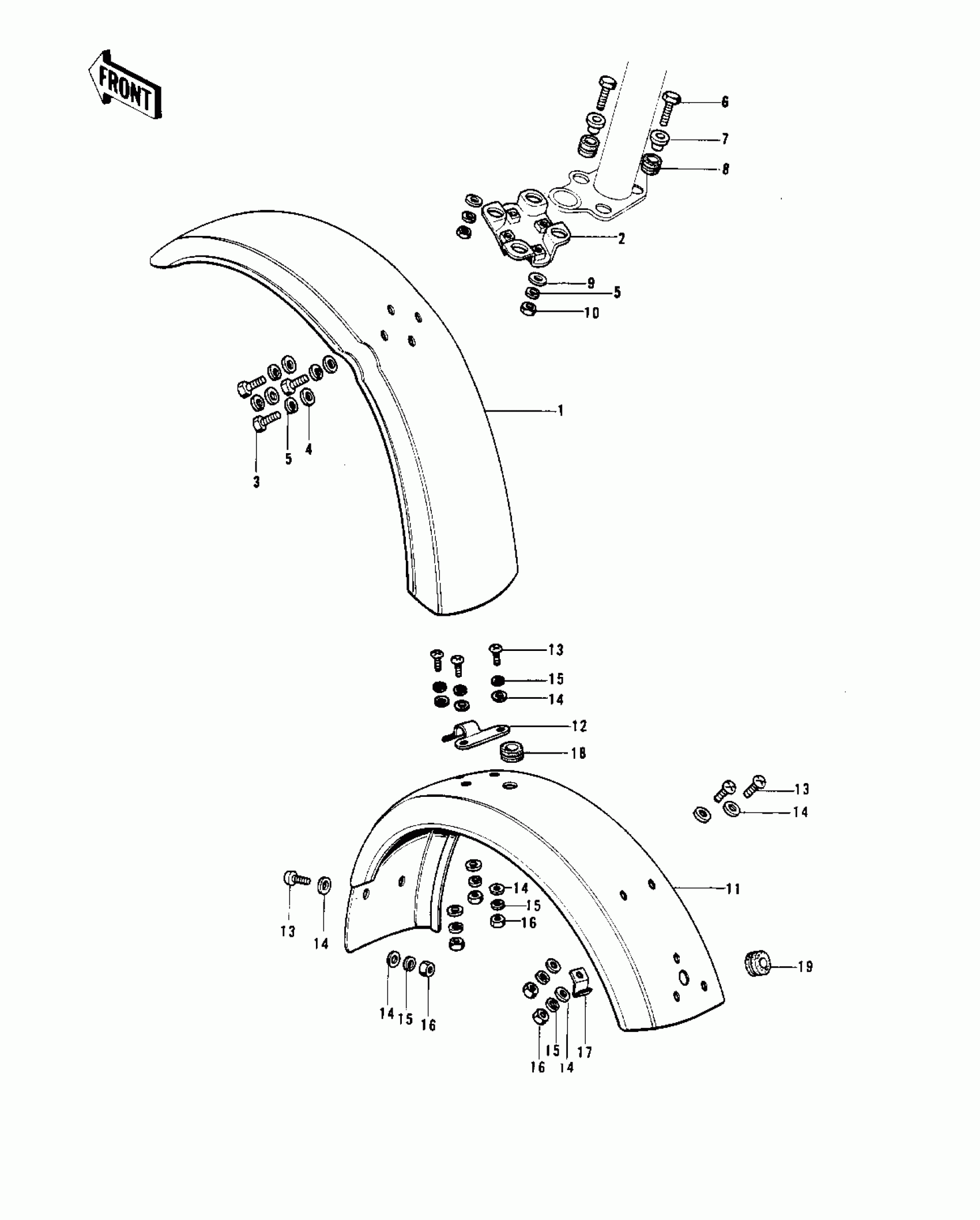

Kawasaki KV100-A7 FENDERS ('74-'75) Diagram

FENDER-FR

BRACKET-FRONT FENDER

BOLT-UPSET,6X12

WASHER PLAIN 6MM

WASHER SPRING 6MM

BOLT-UPSET

COLLAR

DAMPER RUBBER

WASHER,6.5X20X1.6

NUT 6MM

FENDER-RR

BRACKET,REAR FENDER

SCREW-PAN-CROS,6X16

WASHER PLAIN 6MM

WASHER SPRING 6MM

NUT 6MM

CLIP WIRING HARNESS

GROMMET HARNESS 10MM

GROMMET,10MM
