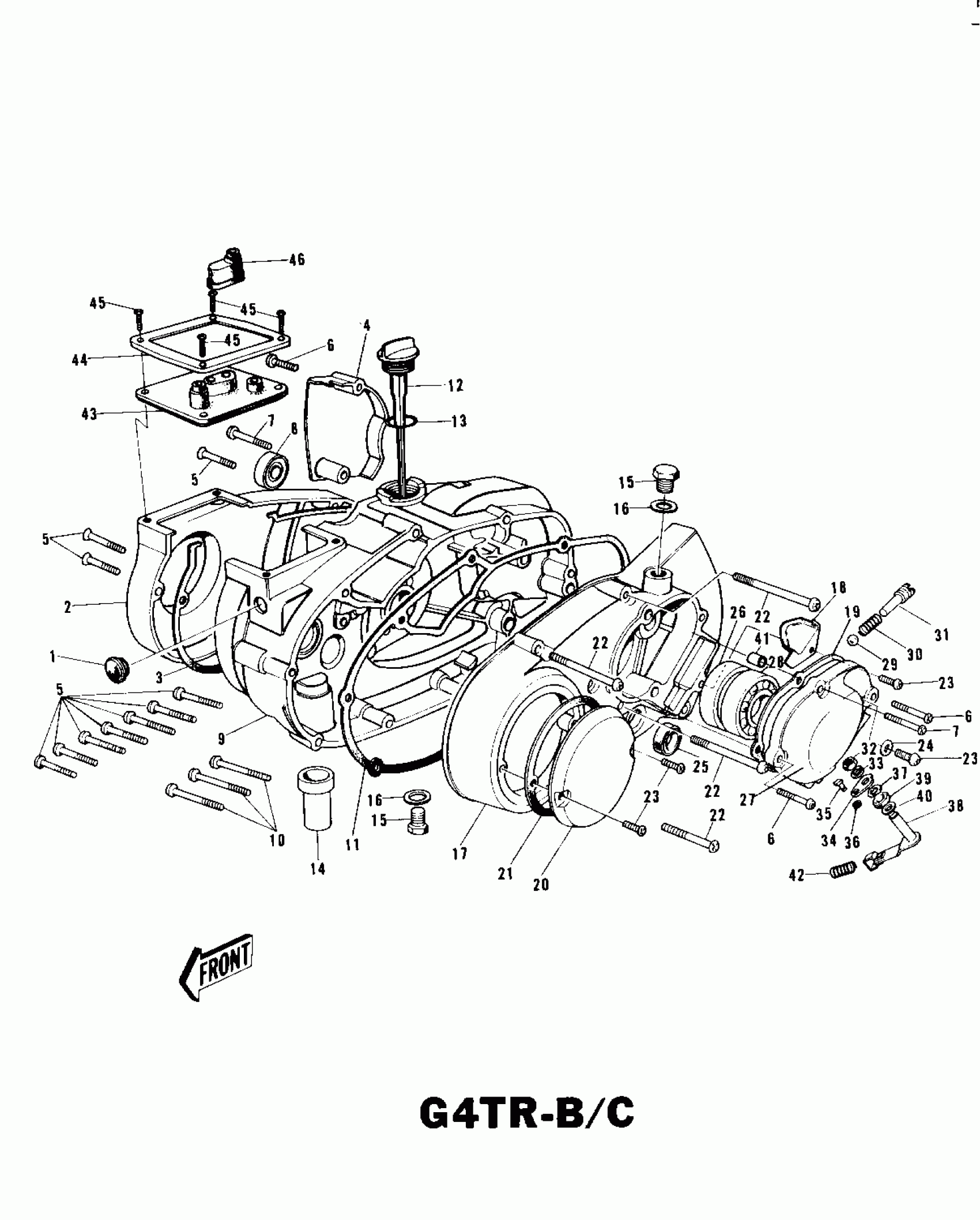

Kawasaki KV100-A7 ENGINE COVERS G4TR-B/C 1/2 ('70-'73) Diagram
#
1
CAP,RUBBER
14039-001
$4.74
2
COVER-CARBRETR,SILVER
14030-037-15
Unavailable
2
COVER-CARB,L.SILVER
14030-037-75
Unavailable
2
COVER-CARB,M.CLEAR
14030-037-36
Unavailable
2
COVER-CARBURETOR,BLK
14030-037-21
Unavailable
3
GASKET CARB COVER
14048-001
Unavailable
4
COVER OIL PUMP
14030-006
Unavailable
4
COVER OIL PUMP,F.BLK
14030-006-21
Unavailable
4
COVER-OIL PUMP SILVER
14030-006-75
Unavailable
5
SCREW PAN HEAD 6X30
220B0630
$3.41
6
SCREW PAN HEAD 6X25
220B0625
$2.60
7
SCREW PAN HEAD 6X35
220B0635
$1.63
8
OIL SEAL TB14257
653B142507
$21.16
9
COVER-R.H ENG,SILVER
14032-072-75
Unavailable
9
COVER-R.H ENGINE BLK
14032-072-21
Unavailable
10
SCREW PAN HEAD 6X45
220B0645
$1.71
11
GASKET,CLUTCH COVER
11060-1198
$26.22
12
CAP-OIL FILLER
16115-018
$10.56
13
"0" RING,OIL FIL PLUG
92055-026
$2.35
14
DRAIN FUEL
16116-002
Unavailable
15
PLUG,DRAIN,10X12
92067-001
$4.41
16
GASKET,10.5X16X1
92065-058
$3.96
17
COVER,L.H ENGINE,BUFF
14031-063-80
Unavailable
17
COVER,L.H ENGINE,BUFF
14031-063-80
Unavailable
17
COVER-L.H ENG,F.BLACK
14031-050-21
Unavailable
17
COVER,L.H ENG,BLACK
14031-063-21
Unavailable
18
CAP-L.H.ENGINE COVER
14036-004
Unavailable
19
GASKET-LH ENG COV CAP
14051-002
Unavailable
20
COVER-BRK POINT,CR
14027-007-79
Unavailable
21
GASKET BREAKER COVER
14050-002
Unavailable
22
SCREW PAN HEAD 6X65
220B0665
$4.30
23
SCREW PAN HEAD 6X12
220B0612
Unavailable
24
WASHER OIL PUMP BANJO
92022-077
$3.99
25
SEAL-OIL
92049-1249
$9.89
26
OIL SEAL SC38556
92050-012
Unavailable
27
CAP ASSY-L-H-ENG COV
14075-003
$105.41
27
CAP ASSY,ENG COV,BUFF
14075-1001
$113.84
27
CAP ASSY,ENG COV,BUFF
14075-1001
$113.84
28
BEARING-BALL,#6005C3
601B6005
$16.92
29
BALL-STEEL,1/4
600A0800
$0.62
30
SPRING
92081-075
$6.12
31
PLUG L.H ENG COV CAP
92066-015
$5.74
32
NUT 6MM
312B0600
$0.72
33
WASHER SPRING 6MM
461F0600
$0.69
34
LEVER A
13204-002
Unavailable
35
RETAINER SHIFT ROD
13197-001
Unavailable
36
CIRCLIP SELD BEM FIT
482K4000
$1.35
37
WASHER WAVE
13211-001
Unavailable
38
SHAFT ASY-SHIFT LEVER
13234-002
Unavailable
39
OIL SEAL,VC8144
92054-015
Unavailable
40
WASHER PLAIN 8MM
410B0800
$0.93
41
PIN,DOWEL,10X14
92043-1037
$0.74
42
SPRING-CHANGE CABLE
92081-099
Unavailable
43
CAP-CARBURETOR
14038-032
Unavailable
44
HOLDER-CARBURETOR CAP
14065-004
Unavailable
45
SCREW PAN HEAD 5X10
220B0510
$0.69
46
GROMMET CARB CAP
14038-006
$9.39
