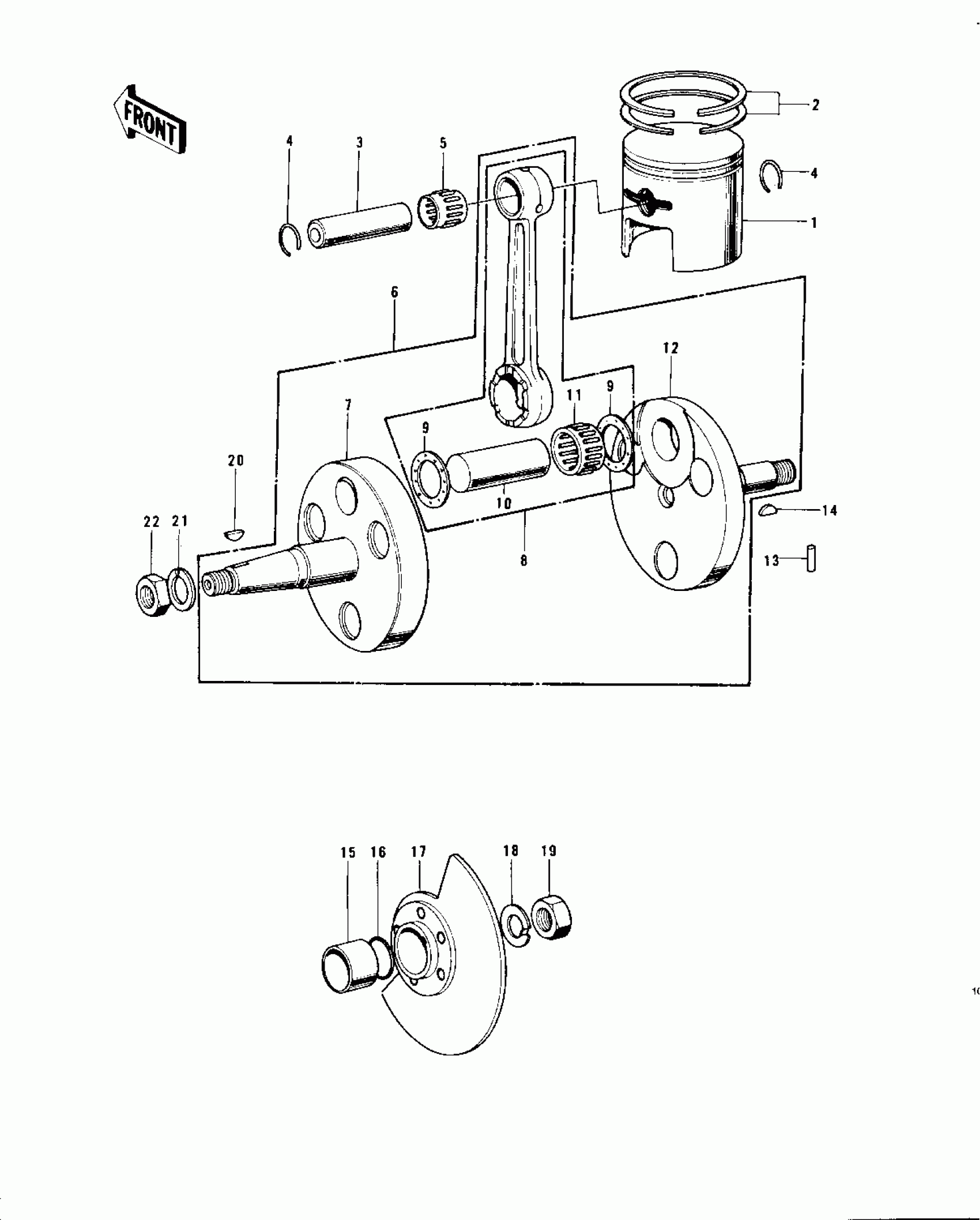

Kawasaki KV100-A7 CRANKSHAFT/PISTON/ROTARY VALVE ('70-'73) Diagram
#
Description
Price
1
PISTON STD
13001-037
Unavailable
1
PISTON 0.020' O.S
13029-036
Unavailable
1
PISTON 0.040' O.S
13027-036
Unavailable
2
RING SET STD
13008-023
Unavailable
2
RING SET 0.020' O,S
13025-026
Unavailable
2
RING SET 0.040' O,S
13024-030
Unavailable
3
PIN
13002-007
$18.23
4
RING-SNAP,PISTON PIN
92036-007
$3.89
5
BEARING-NEEDLE,72KTV030
13033-028
Unavailable
6
CRANK&CONROD ASSY
13036-034
Unavailable
6
CRANK&CONROD ASSY
13036-034
Unavailable
6
CRANK&CONROD ASSY
13036-034
Unavailable
6
CRANK&CONROD ASSY
13036-034
Unavailable
7
CRANKSHAFT L.H
13037-018
Unavailable
7
CRANKSHAFT,L.H
13037-044
Unavailable
8
CONNECTING ROD SET
13044-008
Unavailable
8
CONNECTING ROD SET
13044-019
Unavailable
9
SHIM,20X34.5X1.0
92025-005
$8.51
9
SHIM,T=1.0
92025-047
$8.18
10
CRANK PIN
13035-008
Unavailable
10
PIN-CRANK
13035-025
Unavailable
11
NEEDLE BEARING BG END
13034-018
Unavailable
11
NEEDLE BEARING-BG END
13034-025
Unavailable
12
CRANKSHAFT R.H
13038-012
Unavailable
12
CRANKSHAFT,R.H
13038-040
Unavailable
13
ROLLER,4X10
610A0410
$4.31
14
KEY,WOODRUFF
92038-003
$5.37
15
COLLAR CRANKSHAFT
92027-022
Unavailable
16
O RING,16MM
670B2016
$1.36
17
VALVE ROTARY DISC
12001-004
Unavailable
18
WASHER,CLAW,12.5X25X0.8
92024-003
$4.78
19
NUT,12MM
92015-006
$5.59
20
KEY-WOODRUFF
510A3200
$2.70
21
WASHER SPRING 10MM
461F1000
$0.67
22
NUT-HEX-FINE,10MM
314B1000
$0.67
