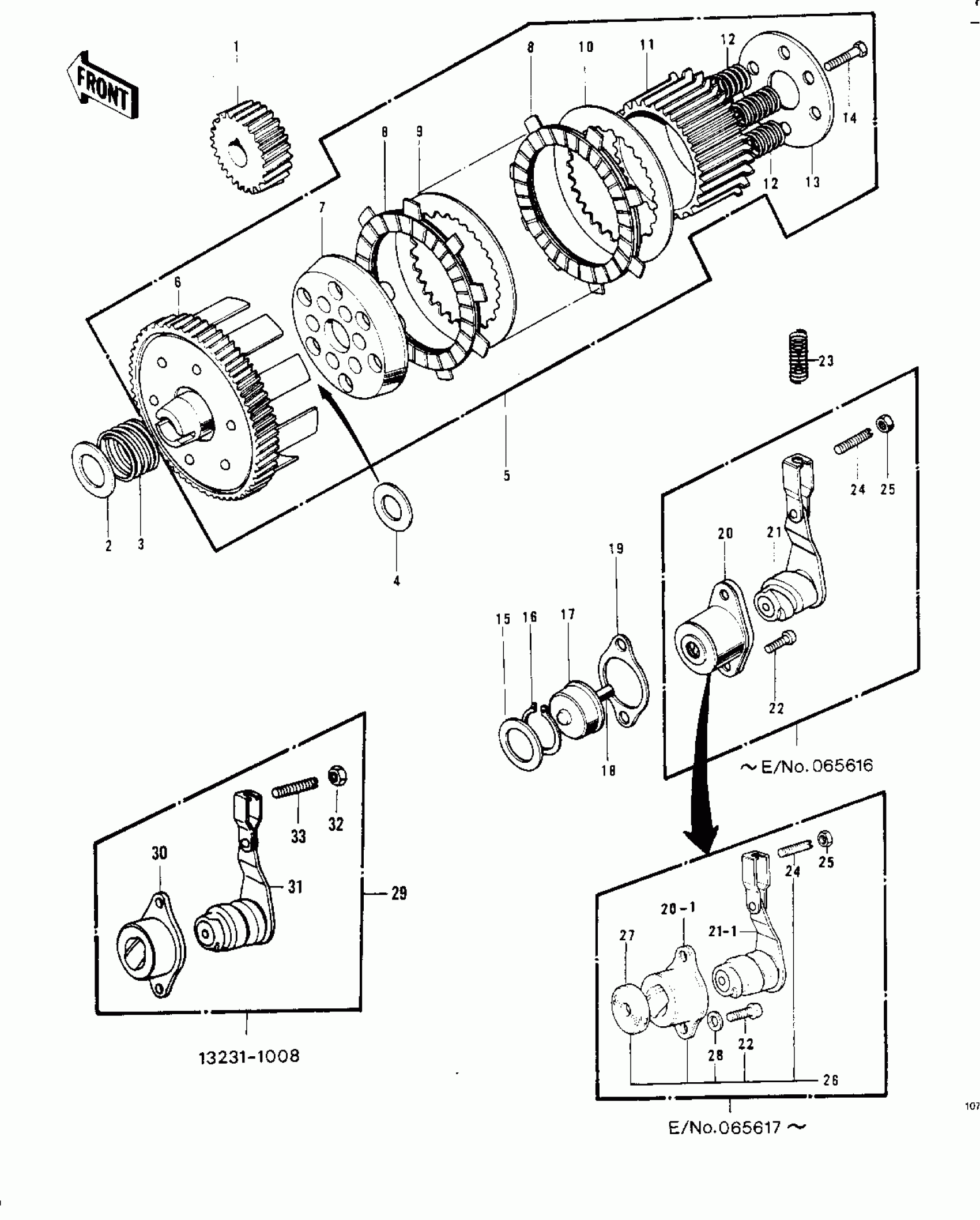

Kawasaki KV100-A7 CLUTCH ('74-'75) Diagram
#
Description
Price
1
PINION,PRIMARY
13121-032
$94.31
1
PINION,PRIMARY
13121-032
$94.31
2
WASHER,25.5X36X1
92022-057
$4.38
3
SPRING,CLUTCH DAMPER
92081-015
$6.89
4
WASHER,16.5X27X1.4
92022-054
$8.19
5
CLUTCH-ASSY
13081-028
Unavailable
6
HOUSING-COMP-CLUTCH
13095-022
Unavailable
7
WHEEL-CLUTCH
13086-1002
$44.98
8
PLATE-FRICTION
13088-1103
Unavailable
9
PLATE-CLUTCH,STEEL
13089-1009
$14.05
10
PLATE CLUTCH OUTER
13090-004
Unavailable
11
HUB-CLUTCH
13087-1011
$91.10
12
SPRING,CLUTCH
92081-012
$6.87
13
HOLDER,CLUTCH SPRING
13091-1115
$18.40
14
BOLT-UPSET
112G0516
$1.47
15
WASHER,THRUST,16.5X21X0.8
92022-053
$3.98
16
CIRCLIP-TYPE-C,16MM
480J1600
$4.31
17
PUSHER-COMP-CLUTCH
13113-003
$9.50
18
PIN DOWEL 7X10
610A0710
$4.02
18
PIN,DOWEL,7X14
610A0714
$3.59
19
GASKET,CLUTCH RELEASE
11060-1197
$6.89
20
RELEASE SET,CLUTCH
13231-013
Unavailable
20-1
RELEASE-ASSY-CLUTCH
13231-1008
Unavailable
21
RELEASE-ASSY-CLUTCH
13231-1008
Unavailable
21-1
RELEASE-ASSY-CLUTCH
13231-1008
Unavailable
22
SCREW-PAN-CROS,6X16
220B0616
$2.84
23
SPRING,CLUTCH RELEASE
92081-096
$5.54
24
SCREW SLOTTED 6X28
291Z0628
$5.46
24
SCREW SLOTTED 6X28
291Z0628
Unavailable
25
NUT 6MM
311B0600
$0.93
26
RELEASE SET,CLUTCH
13231-013
Unavailable
27
SEAL-OIL
92050-071
$10.62
28
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
29
RELEASE-ASSY-CLUTCH
13231-1008
$73.59
30
RELEASE-CLUTCH OUTER
13118-1001
$24.97
31
RELEASE-COMP-CLUTCH,INNER
13102-1016
$30.51
32
NUT 6MM
312B0600
$0.72
33
SCREW-SET,6X16
291H0616
$7.24
