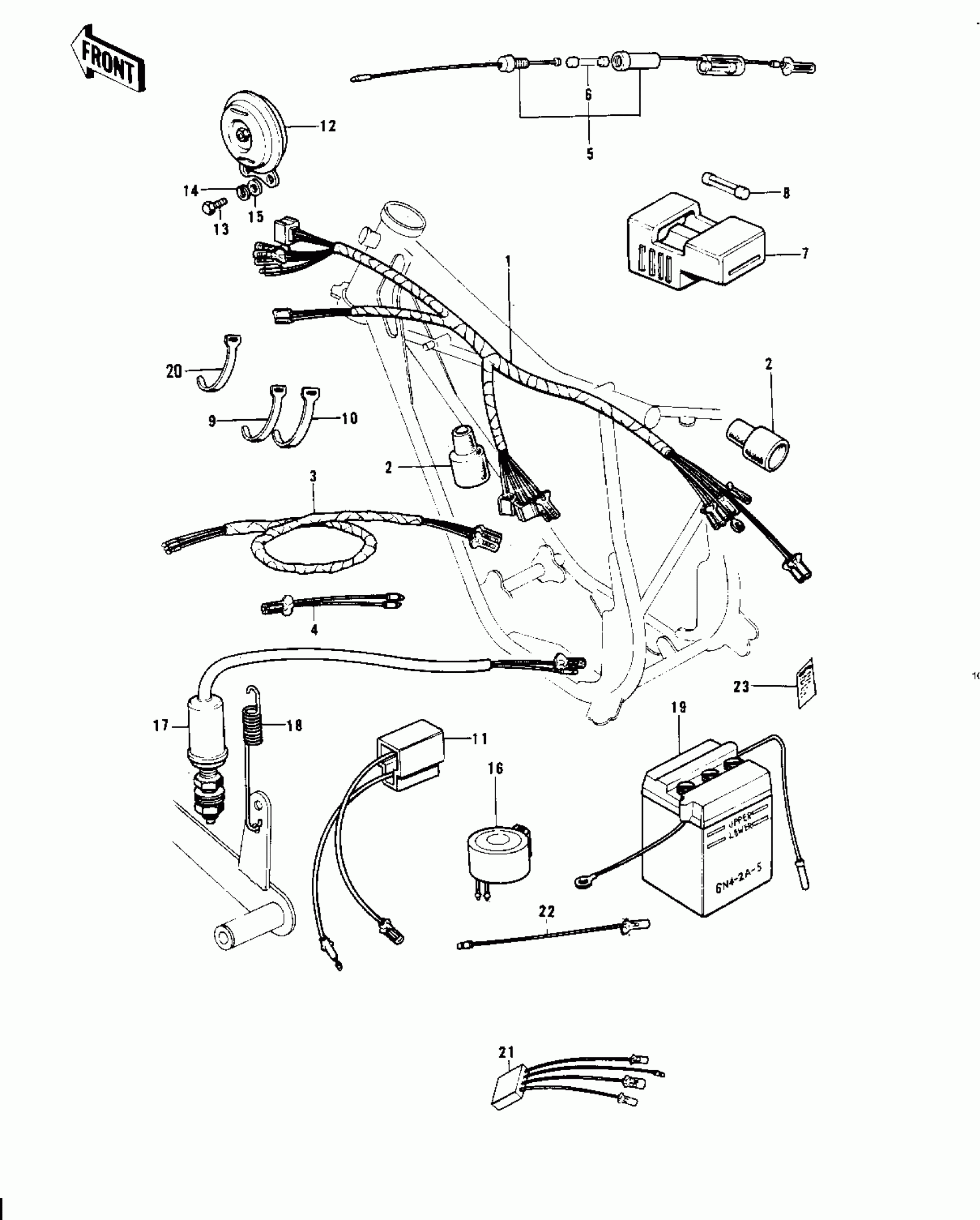

Kawasaki KV100-A7 CHASSIS ELECTRICAL EQUIPMENT ('74-'75) Diagram

#

Description
Price

1

WIRING HARNESS,MAIN

26001-105

$98.46

2

COVER WIRING HARNESS

26009-003

Unavailable

3

WIRING HARNESS-REAR

26002-037

$20.67

4

LEAD WIRE

26011-042

Unavailable

5

FUSE ASSY

26004-017

Unavailable

6

FUSE,10A,L=25

26006-003

$4.72

7

HOLDER,SPARE FUSE

26016-003

$10.29

8

FUSE,10A,L=25

26006-003

$4.72

9

BAND,L=123

92072-030

$5.00

10

BAND,L=218

92072-032

$5.00

11

WIRE,RECTIFIER LEAD

26011-074

Unavailable

12

HORN

27003-060

Unavailable

12

HORN

27003-060

Unavailable

13

SCREW-PAN-CROS,6X14

220B0614

$1.48

14

WASHER SPRING 6MM

461F0600

$0.69

15

WASHER PLAIN 6MM

411B0600

$2.84

16

RELAY-ASSY,TURN SIGNAL

27002-013

Unavailable

17

SWITCH-BRAKE LAMP

27010-020

Unavailable

17

SWITCH-BRAKE LAMP

27010-015

Unavailable

18

SPRING,BRAKE LAMP SWITCH

27011-004

$3.67

19

YUA BAT 6N4-2A-5

K26012-020

Unavailable

20

BAND,L=149

92072-031

$5.00

21

WIRING HARNESS,REAR

26002-056

Unavailable

22

WIRE,LEAD

26011-094

Unavailable

23

LABEL-WARNING,BATTERY

56040-1036

Unavailable
