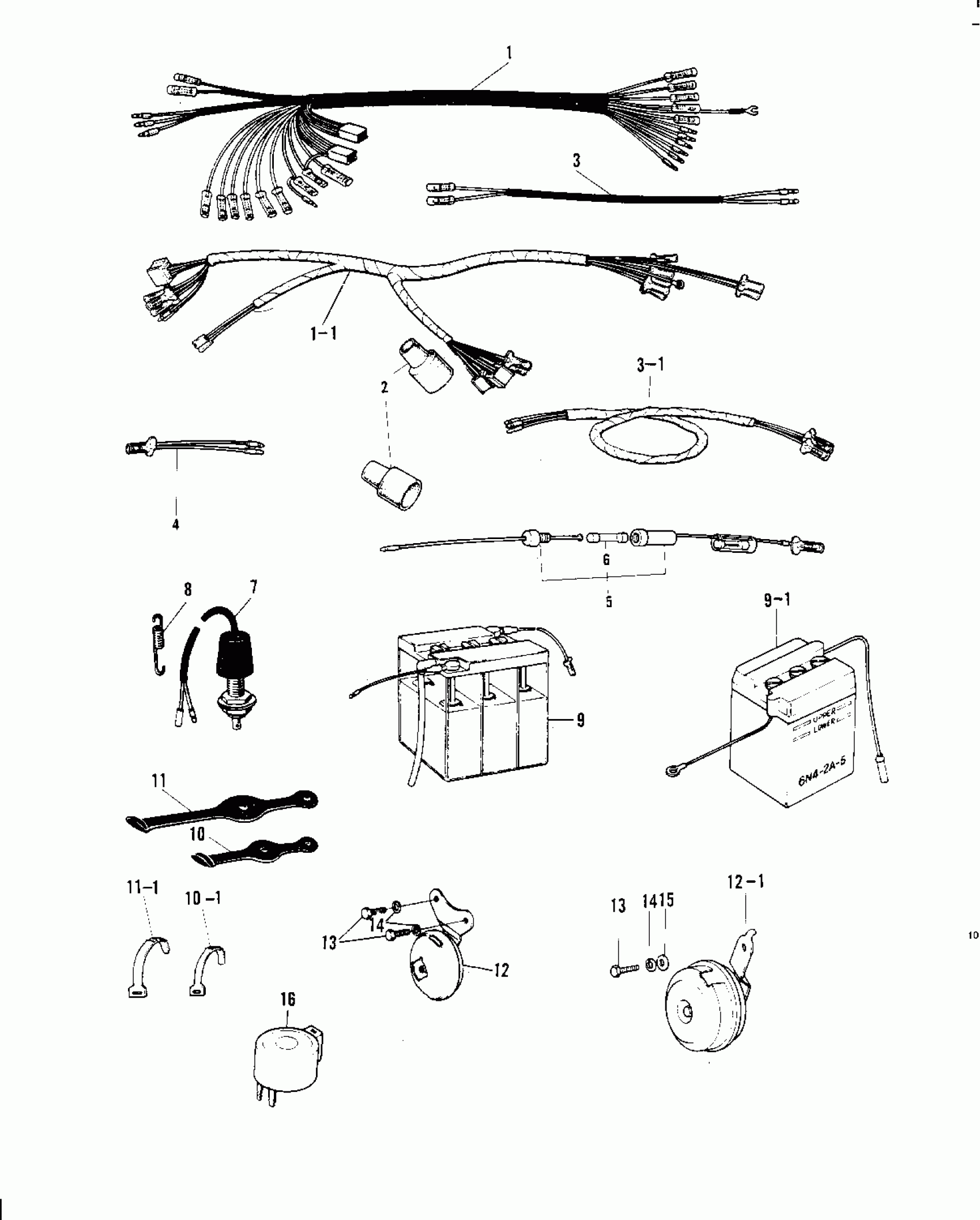

Kawasaki KV100-A7 CHASSIS ELECTRICAL EQUIPMENT ('70-'73) Diagram

#

Description
Price

1

WIRING HARNESS MAIN

26001-049

Unavailable

1-1

WIRING HARNESS-MAIN

26001-068

$77.94

1-1

WIRING HARNESS-MAIN

26001-074

$77.94

2

COVER WIRING HARNESS

26009-003

Unavailable

3

WIRING HARNWSS REAR

26002-027

$15.81

3-1

WIRING HARNESS-REAR

26002-029

Unavailable

3-1

WIRING HARNESS-REAR

26002-037

$20.67

4

LEAD WIRE

26011-042

Unavailable

5

FUES ASSY

26004-008

Unavailable

6

FUSE,10A,L=25

26006-003

$4.72

7

SWITCH BRAKE LAMP

27010-006

$52.40

7

SWITCH-BRAKE LAMP

27010-020

Unavailable

7

SWITCH-BRAKE LAMP

27010-020

Unavailable

8

SPRING,BRAKE LAMP SWITCH

27011-004

$3.67

9

YUA BAT 6N2-2A-3

K26012-019

$18.61

9-1

YUA BAT 6N4-2A-5

K26012-020

Unavailable

10

BAND RUBBER

92072-013

Unavailable

10

BAND RUBBER

92072-013

Unavailable

10-1

BAND,L=123

92072-030

$5.00

11

BAND RUBBER

92072-018

Unavailable

11

BAND RUBBER

92072-018

Unavailable

11-1

BAND,L=218

92072-032

$5.00

12

HORN

27003-063

$53.08

12

HORN

27003-063

$53.08

12-1

HORN

27003-056

$53.08

12-1

HORN

27003-056

$53.08

13

BOLT,6X10

112G0610

$0.58

13

BOLT-SMALL-UPSET,8X16

115G0816

$0.68

14

WASHER SPRING 6MM

461F0600

$0.69

14

WASHER SPRING 8MM

461F0800

$0.40

15

WASHER PLAIN 8MM

411B0800

$0.93

16

RELAY-ASSY,TURN SIGNAL

27002-013

Unavailable
