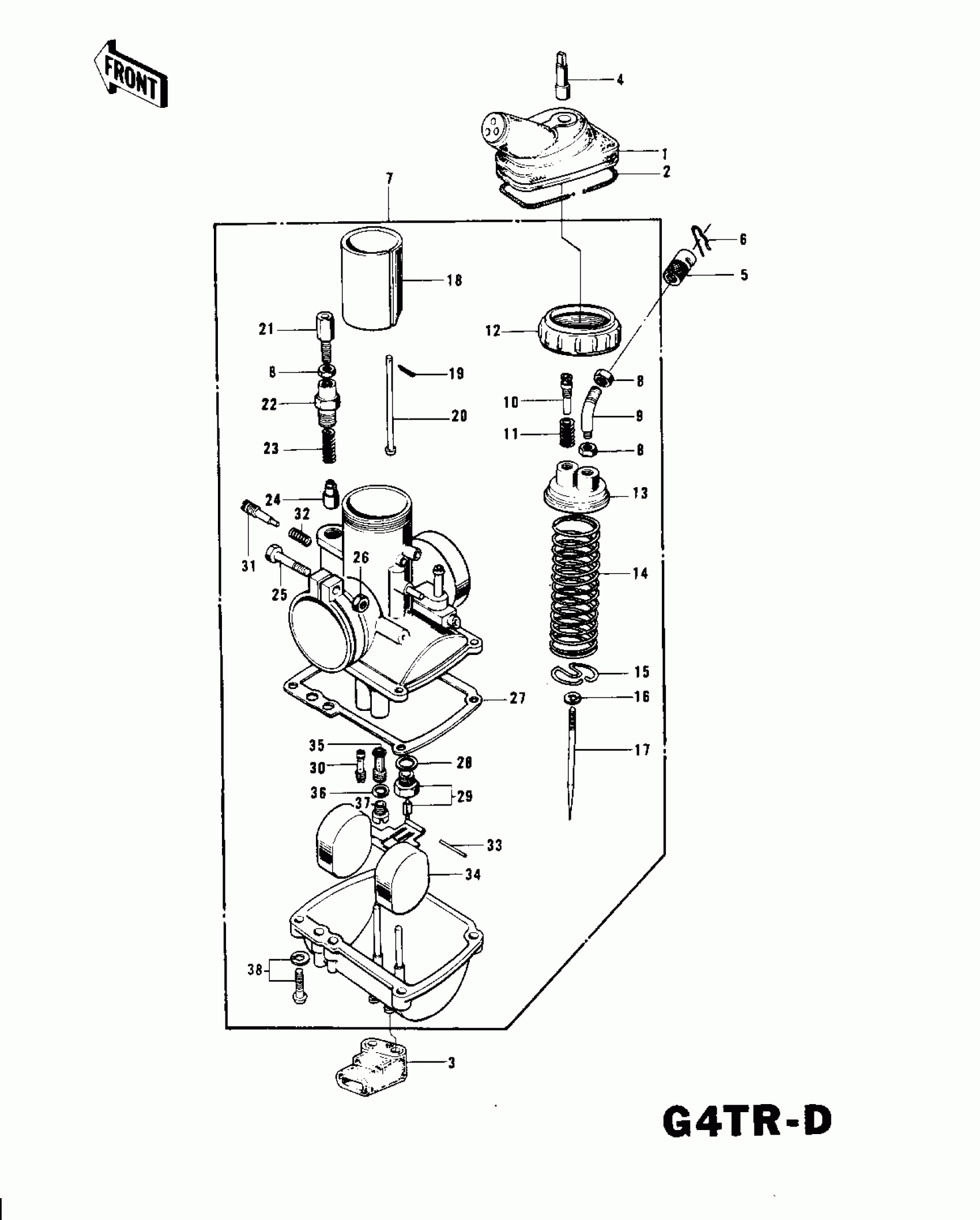

Kawasaki KV100-A7 CARBURETOR G4TR-D ('74-'75) Diagram

#

Description
Price

1

CAP,CARBURETOR

14038-033

Unavailable

2

SPRING COIL

92081-047

$11.29

3

GROMMET,OVERFLOW PIPE

16136-007

Unavailable

4

PLUG,12X40

16147-001

$5.17

5

CABLE ADJUSTER

16002-007

$11.09

6

RING-SNAP

92036-018

$3.89

7

CARBURETOR ASSY

16001-196

Unavailable

8

NUT,CABLE ADJUST LOCK

16003-004

$7.34

9

CABLE GUIDE

16077-001

$9.02

10

SCREW-THROTTLE STOP

16021-002

$18.22

11

SPRING,THROTTLE STOP SCREW

16022-005

$8.68

12

CAP-CHAMBER,MIXING

16004-010

$20.59

13

TOP-CHAMBER,MIXING

16005-005

$20.79

14

SPRING,THROTTLE VALVE

16006-013

$15.02

15

SEAT-SPRING,THROTTLE VALVE

16007-020

$10.97

16

CLAMP,E-TYPE

16008-010

$9.21

17

NEEDLE-JET,4EJ7

16009-059

$37.51

18

VALVE-THROTTLE,CA2.0

16025-057

Unavailable

19

PIN COTTER 1.2X10

550D1210

$2.65

20

ROD,THROTTLE VLV STP

16024-012

Unavailable

21

CABLE ADJUSTER

16002-002

$11.83

22

CAP STARTER PLUNGER

16012-004

$11.80

23

SPRING-PLUNGER

16013-003

$6.16

24

PLUNGER,STARTER

16016-002

$31.85

25

SCREW,CLAMP

16010-004

$5.57

26

NUT 6MM

311B0600

$0.93

27

GASKET,FLOAT CHAMBER

16019-021

$20.79

28

GASKET,FLOAT VALVE SEAT

16029-002

$4.46

29

VALVE-FLOAT,#2.0

16030-001

$56.16

30

JET-PILOT,#17.5

92064-020

Unavailable

31

SCREW-PILOT AIR

16014-002

$18.22

32

SPRING,PILOT AIR SCREW

16022-007

$8.13

33

PIN,FLOAT

16032-003

$6.57

34

FLOAT

16031-015

$56.16

35

JET-NEEDLE,O-4

16017-081

$37.97

36

WASHER,MAIN JET

16034-001

$4.31

37

JET-MAIN,#75R

92063-109

Unavailable

38

SCREW-FLOAT CHAMBER

16033-012

$1.88
