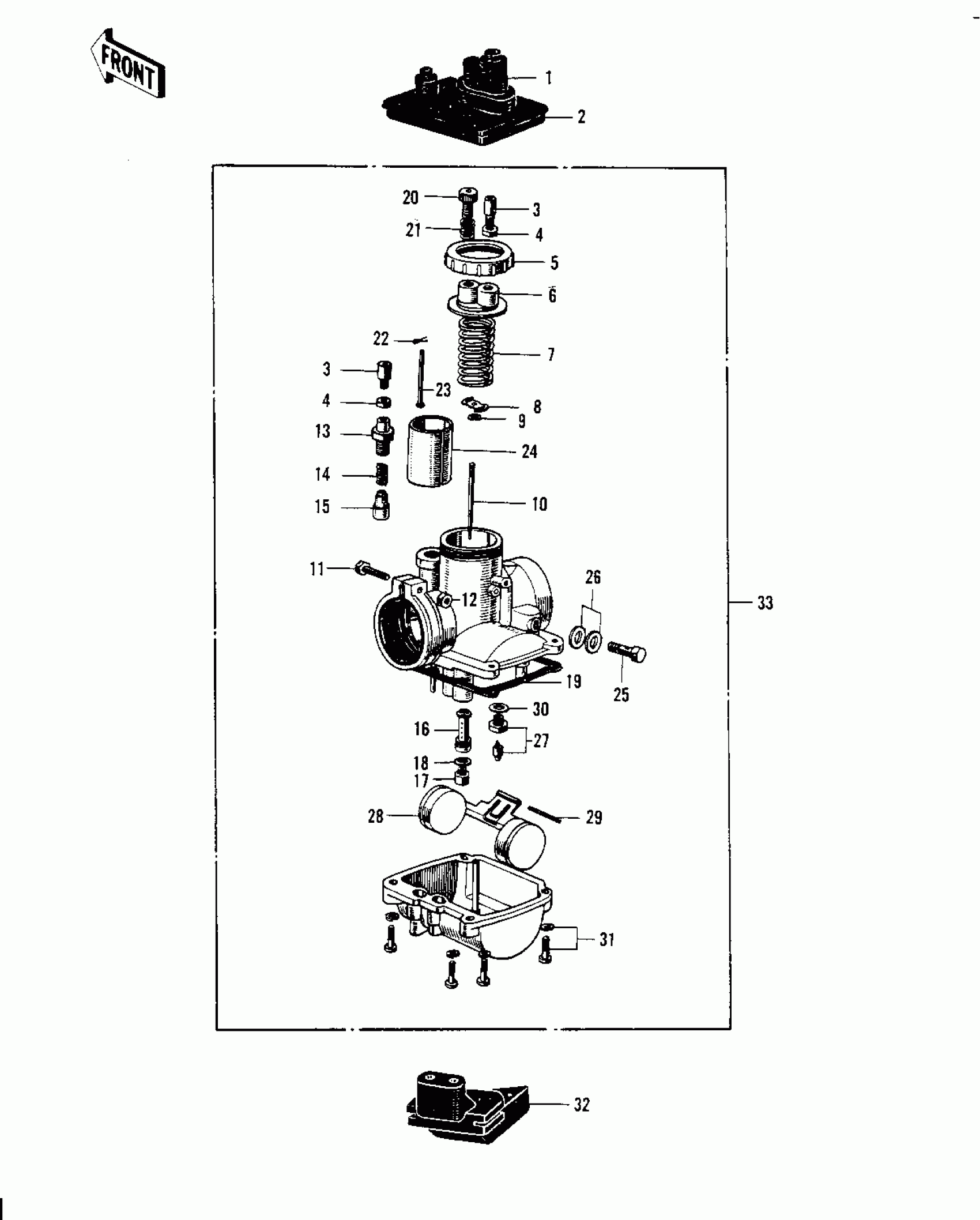

Kawasaki KV100-A7 CARBURETOR ('70-'73) Diagram
#
1
GROMMET CARB CAP
14038-006
$9.39
2
CAP CARBURETOR
14038-007
$7.39
3
ADJUSTER-CABLE
16002-017
$13.38
4
NUT,CABLE ADJUST LOCK
16003-004
$7.34
5
CAP-CHAMBER,MIXING
16004-010
$20.59
6
TOP-CHAMBER,MIXING
16005-005
$20.79
7
SPRING,THROTTLE VALVE
16006-013
$15.02
8
SPRING SEAT THRTL VL
16007-002
$13.50
9
CLAMP,E-TYPE
16008-010
$9.21
10
JET NEEDLE 5J-7
16009-026
$29.09
11
SCREW,CLAMP
16010-004
$5.57
12
NUT 6MM
311B0600
$0.93
13
CAP STARTER PLUNGER
16012-004
$11.80
14
SPRING-PLUNGER
16013-003
$6.16
15
PLUNGER,STARTER
16016-002
$31.85
16
NEEDLE JET E-6
16017-040
Unavailable
16
NEEDLE JET,E-6
16017-065
$13.08
17
MAIN JET NO 180M
92063-082
Unavailable
17
JET-MAIN NO 107.5R
92063-073
$15.74
17
MAIN JET NO 160M
92063-018
Unavailable
17
MAIN JET NO 170M
92063-081
Unavailable
17
MAIN JET NO 190M
92063-083
Unavailable
17
MAIN JET NO 200M
92063-084
$5.97
17
MAIN JET,#A102.5
92063-1028
$17.74
17
MAIN JET,#A105R
92063-1042
$15.74
17
MAIN JET,#110R
92063-1038
$16.50
17
JET-MAIN NO 112.5R
92063-075
$15.42
18
WASHER,MAIN JET
16034-001
$4.31
19
GASKET FLOAT CHAMBER
16019-012
$20.79
20
SCREW-THROTTLE STOP
16021-002
$18.22
21
SPRING,THROTTLE STOP SCREW
16022-005
$8.68
22
PIN COTTER 1.2X10
550D1210
$2.65
23
ROD,THROTTLE VLV STP
16024-012
Unavailable
24
VALVE,THROTTLE CA.2.5
16025-054
$103.97
24
VALVE,THROTTLE CA.2.5
16025-054
$103.97
25
BOLT BANJO
92001-014
Unavailable
26
GASKET 8MM
751P0800
$1.96
27
VALVE-FLOAT,#2.0
16030-001
$56.16
28
FLOAT
16031-015
$56.16
29
PIN,FLOAT
16032-003
$6.57
30
GASKET,FLOAT VALVE SEAT
16029-002
$4.46
31
SCREW-FLOAT CHAMBER
16033-012
$1.88
32
GROMMET OVERFLOW PIPE
16136-001
$3.02
33
CARBURETOR ASSY
16001-160
$129.32
33
CARBURETOR ASSY
16001-160
$129.32
