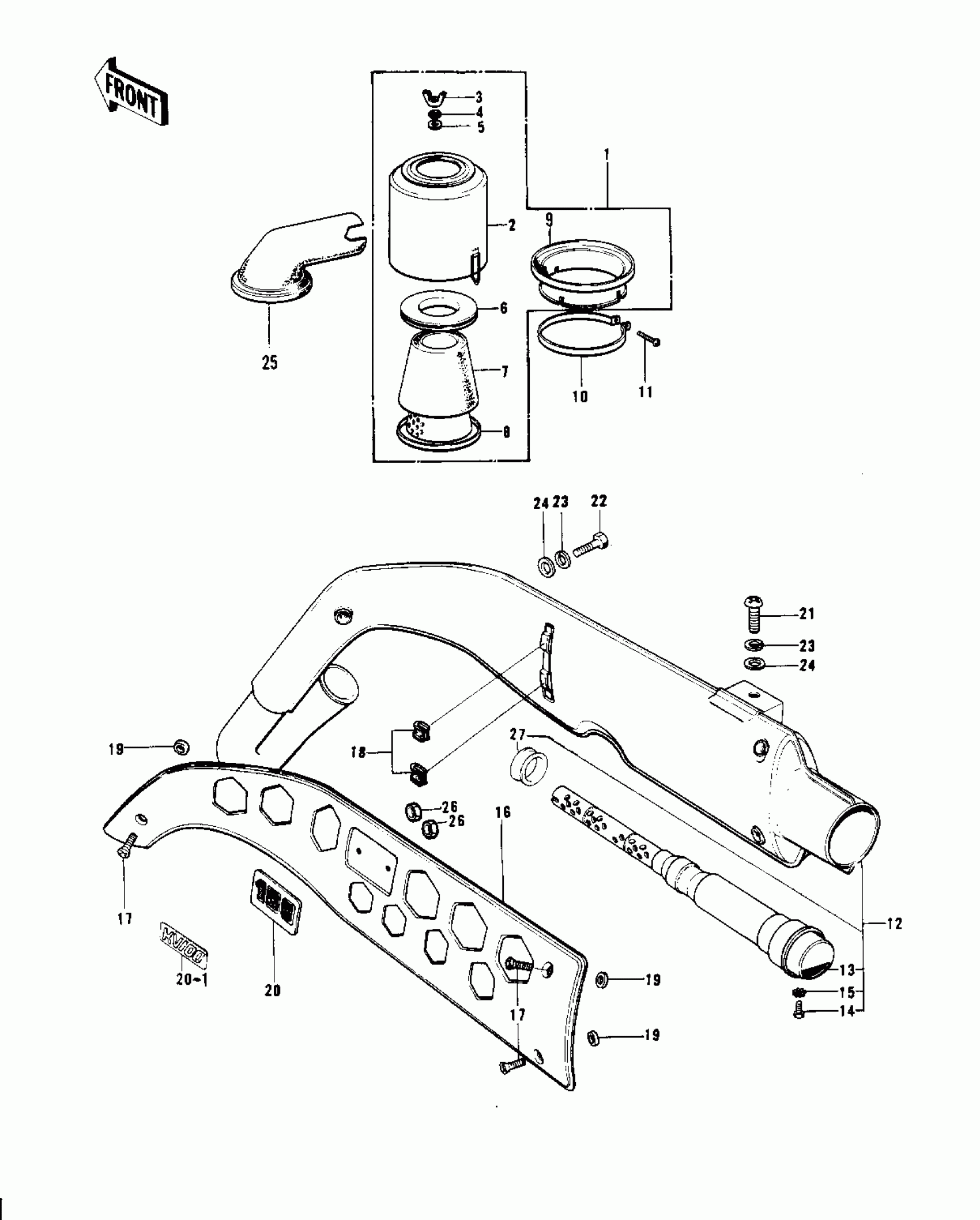

Kawasaki KV100-A7 AIR CLEANER/MUFFLER ('74-'75) Diagram
#
Description
Price
1
AIR CLEANER ASSY,CR
11010-059-79
Unavailable
2
BODY-AIR CLEANER,CR
11011-010-79
Unavailable
3
NUT-WING,6MM
92015-030
Unavailable
4
WASHER SPRING 6MM
461F0600
$0.69
5
WASHER PLAIN 6MM
411B0600
$2.84
6
CAP-AIR CLEANER
11012-031
Unavailable
7
ELEMENT,AIR,CLNR
11013-037
Unavailable
8
HOLDER-AIR CLEANER
11014-008
Unavailable
9
CAP AIR CLEANER B
11012-013
Unavailable
10
CLAMP AIR CLEANER
92037-018
Unavailable
11
SCREW PAN HEAD 6X25
220B0625
$2.60
12
MUFFLER ASSY,F.BLACK
18001-104-21
$238.77
13
BAFFLE TUBE
18033-078
Unavailable
14
BOLT,6X10
112G0610
$0.58
15
WASHER LOCK 6MM
464H0600
Unavailable
16
COVER,MUFFLER
18057-046
$51.49
16
COVER,MUFFLER
18057-046
$51.49
17
SCREW PAN HEAD 6X10
221E0610
$3.13
18
INSULATOR
18065-007
$5.59
19
INSULATOR
18065-001
Unavailable
20
EMBLEM,MUFFLER COVER
56018-161
Unavailable
20-1
MARK,OIL TANK
56018-1109
$11.06
21
SCREW-PAN HEAD,8X16
220B0816
$3.00
22
BOLT-SMALL-UPSET,8X16
115G0816
$0.68
22
BOLT-SMALL-UPSET,8X18
115G0818
$5.23
23
WASHER SPRING 8MM
461F0800
$0.40
23
WASHER SPRING 8MM
461F0800
$0.40
24
WASHER PLAIN 8MM
411B0800
$0.93
24
WASHER PLAIN 8MM
410B0800
$0.93
25
AIR DUCT
14073-003
$12.39
26
NUT,SPEED,5MM
92018-004
$4.39
27
BUSHING,RUBBER
92092-011
Unavailable
