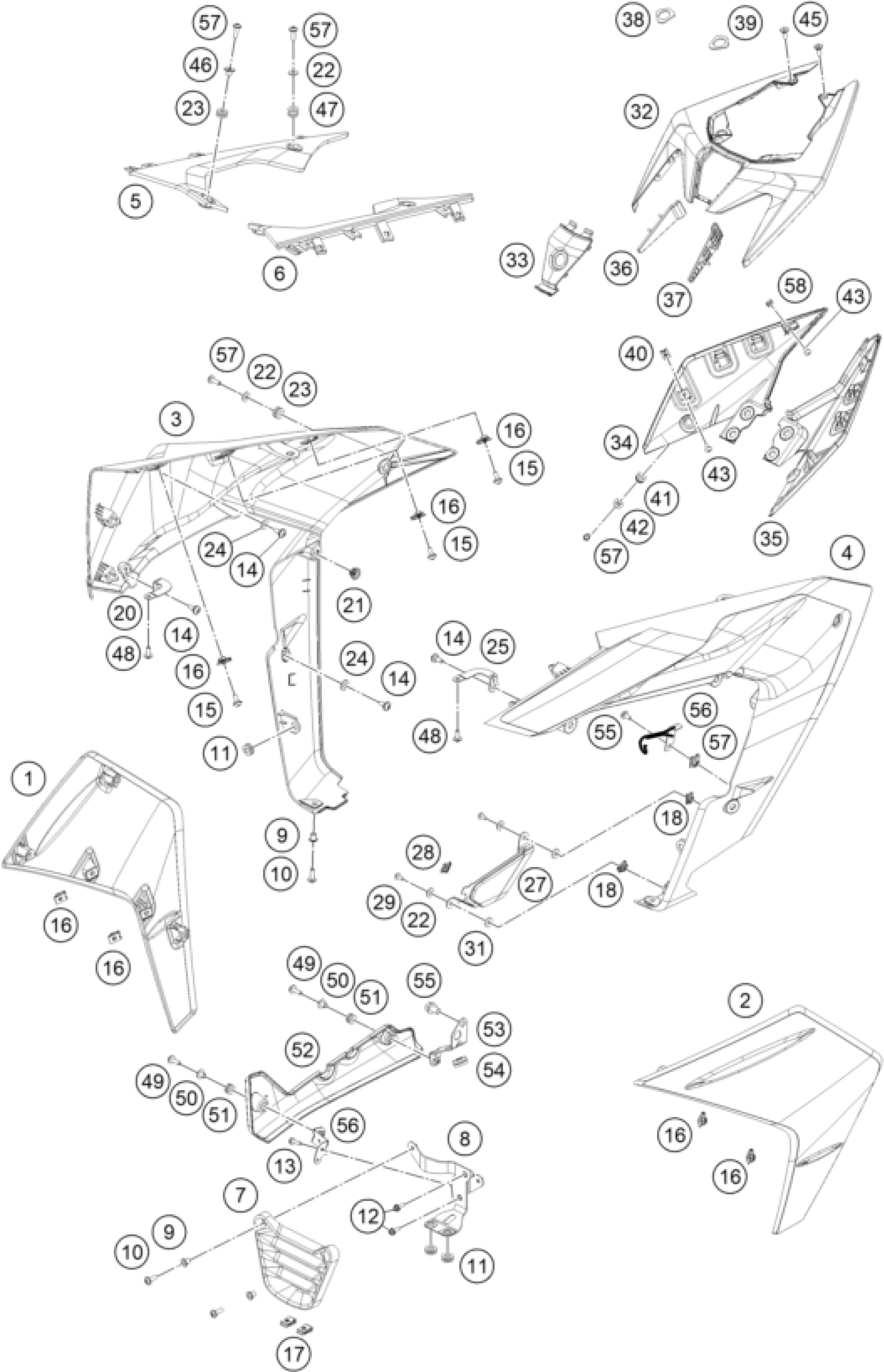

KTM KTMR2R RC 390, orange 2022 SIDE TRIM Diagram

#

Description
Price

1

RC 390 MY22 OUT SIDE FAIRING B

94508051020C1B

Unavailable

2

RC 390 MY22 OUT SIDE FAIRING B

94508041033C1B

Unavailable

3

RC 390 MY22 INR SIDE FAIRING O

94508027033EBB

Unavailable

4

RC 390 MY22 INR SIDE FAIRING O

94508026033EBB

Unavailable

5

Side fairing, inner, top, righ

94508027010

$6.72

6

Side fairing, inner, top, left

94508026010

$6.07

7

BELLY PAN MIDDLE

94508020000

$8.87

8

bracket assy belly pan middle

94808020010

$12.89

9

SLEEVE

93808027000

$2.05

10

AH SCREW M6X1X20

90508006003

$4.11

11

GROMMET BELLY PAN

93808026100

$1.49

12

Hex collar screw, M5x16

J900000501601

$1.49

13

Hex collar screw, M5x18

J900000501800

$1.49

14

Panhead screw with shoulder

J031050161

$1.49

15

Oval head screw M6x12

J900000601200

$1.49

16

clip nut

90103097000

$4.11

17

CLIP NUT M6

J910000600600

$2.52

18

CLIP NUT M5

90108050001

$2.05

20

Bracket, side fairing, right

94508048000

$1.49

21

Rubber grommet ignition lock c

93011068010

$1.49

22

washer plain-id6.5xod16xthk1xb

J125070004

$1.49

23

Rubber bushing

93014017000

$1.49

24

Washer M10

J125100009

$1.49

25

Bracket, side fairing, left

94508047000

$1.49

27

cover catalyst

94808041050

$22.81

28

Absorbing element silicone IN

27005211011

$1.49

29

Roundhead screw M5x14

J900000501403

$1.49

31

WASHER ASBESTOS

90505090050

$5.79

32

SEAT COWL TOP JY181353 EBONY B

94508018001C1

$26.26

33

Seat lock, cover

94508018050

$3.08

34

seat cowl rh RC 390 Gen 2 blac

94508018010C1A

Unavailable

35

seat cowl lh RC 390 Gen 2 blac

94508018020C1A

Unavailable

36

Frame cover right

94508018040

$1.58

37

Frame cover left

94508018030

$1.58

38

FOAM RH

94508018070

$1.49

39

FOAM LH

94508018060

$1.49

40

CLIP NUT M5

90108050001

$2.05

41

Rubber grommet

95835016000

$1.49

42

COLLAR FAIRING - K10

J800000600700

$1.49

43

Lens head screw M5X12

J031050123

$1.49

45

BOLT SOCKET STEP M6X1

J900000601403

$1.49

46

Collar head lamp holder MTG

93014018100

$1.49

47

GROMMET

J650001701300

$1.49

48

Flat-head screw M6

93006039000

$1.49

49

AH oval head screw M6x19

J900000601900

$1.49

50

collar

J800000600900

$1.49

51

DAMPER FOR MOUNTING COWLING

J650001601201

$1.49

52

belly pan rh

94805030000

$13.64

53

bracket belly pan rear rh

94805030020

$3.08

54

Rubber grommet 24x16

J650002401600

$1.49

55

BOLT FLANGED

J900001001600

$1.49

56

bracket belly pan front rh

94805030010

$2.05

57

Set screw w.hexagon socket M6x

J900000602004

Unavailable

58

Special nut

95808041020

$1.49
