- KTMR2R RC 390, blue 2022
WIRING HARNESS

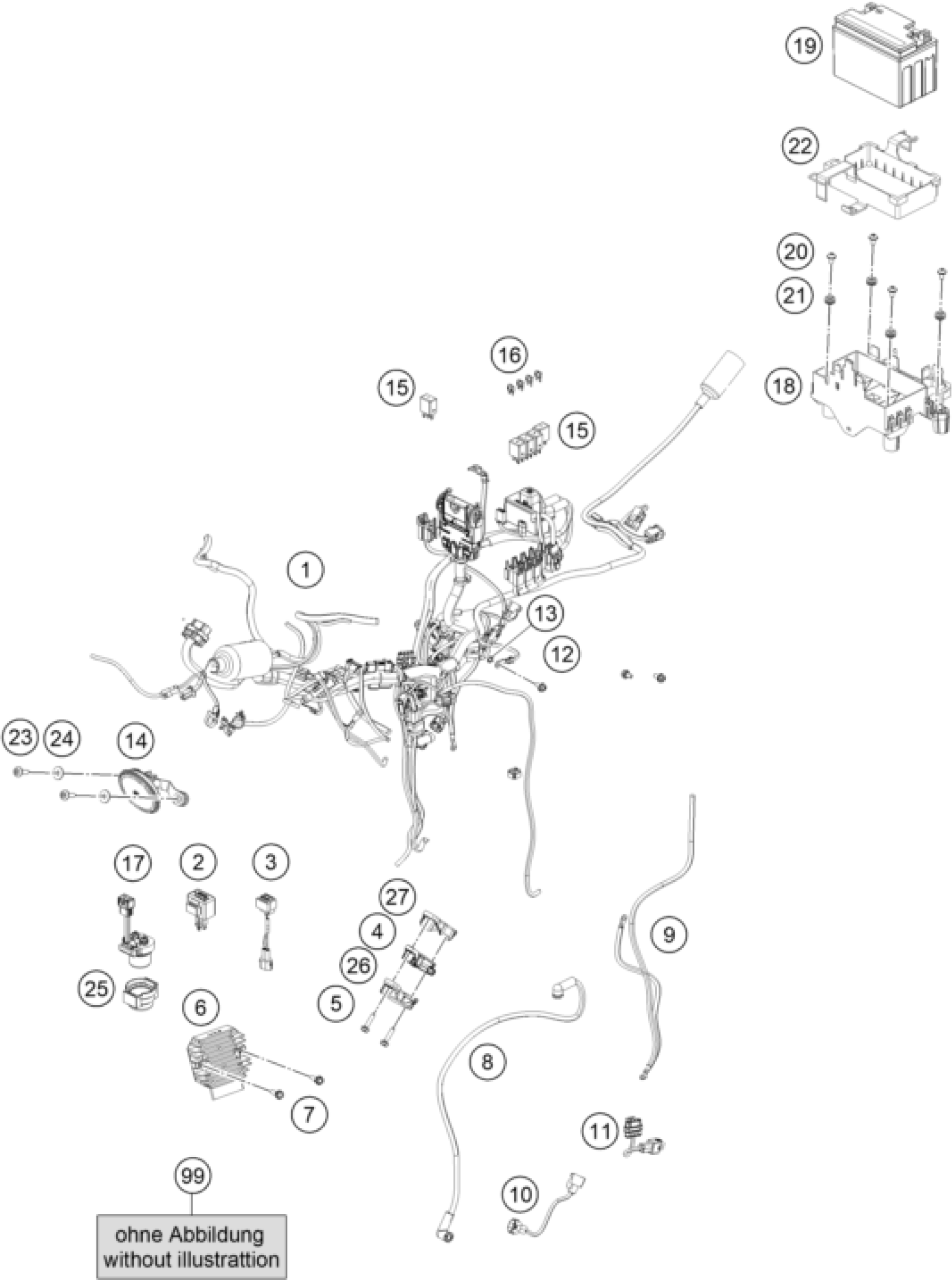

KTM KTMR2R RC 390, blue 2022 WIRING HARNESS Diagram
#
1
harness wiring
94811075000
Unavailable
2
indicator relay
90511030000
Unavailable
3
Transil unit
28111096000
Unavailable
4
SENSOR LEAN ANGLE
95842090000
Unavailable
5
bolt flanged-m6x1xl25xcl8.8xbl
J025060251
Unavailable
6
voltage regulator
90511034000
Unavailable
7
FLANGED BOLT M6X30 WS10
J025060303
Unavailable
8
cable relay-motor starter
94511059000
Unavailable
9
cable earth
94511063000
Unavailable
10
wiring harness temperatur sens
93811099000
Unavailable
11
PIGTAIL PH-3 FUEL PUMP
93511084000
Unavailable
12
Hex collar screw M6X12
J025060122
Unavailable
13
TOOTHED WASHER M6
J797060003
Unavailable
14
Horn
94511060000
Unavailable
15
relay (interlock)
90611057000
Unavailable
16
FUSE 10A 07
75011088010
Unavailable
16
FUSE 15A 07
75011088015
Unavailable
16
FUSE 30A
75011088030
Unavailable
17
Starter relais
93011058000
Unavailable
18
electric carrier
94511054000
Unavailable
19
BATTERY 12V/8AH
90611053000
Unavailable
20
SOCKET HEAD BOLT M6X12
90508006001
Unavailable
21
rubber grommet 9x11x16x8.5 mm
60006001022
Unavailable
22
battery grommet box
94511055000
Unavailable
23
BOLT SOCKET M6X1
J900000602400
Unavailable
24
washer plain
J690000600200
Unavailable
25
Rubber damper starter relay
93311058000
Unavailable
99
Pigtail oil pressure switch
90838091000
Unavailable
99
Cable earth ABS
93042033000
Unavailable
26
cover sensor lean angle upper
95842092020
Unavailable
27
cover sensor lean angle lower
95842092010
Unavailable
