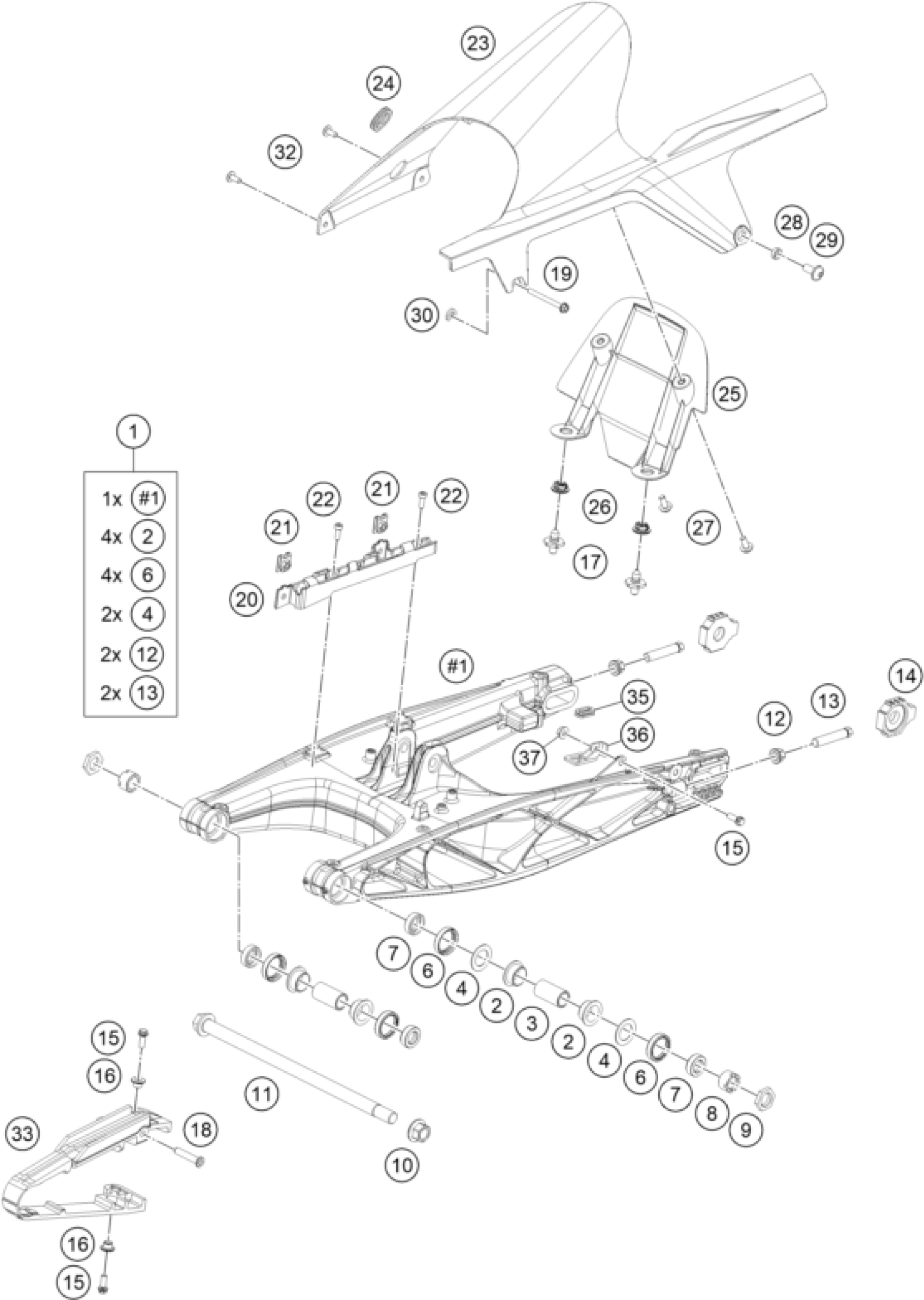

KTM KTMR2R RC 390, blue 2022 SWING ARM Diagram

#

Description
Price

1

Swing Arm Sub Assy Husqvarna 4

28104030044C1

Unavailable

2

Igus plain bearing

90104031000

Unavailable

3

sleeve bushing 15.1x20x38

90104032000

Unavailable

4

Thrust washer 22.2x31.7x1

90104036000

Unavailable

6

OIL SEAL RING 25X32X7

90104034001

Unavailable

7

cup for radial shaft seal

90104034000

Unavailable

8

swingarm adjusting ring

90104046000

Unavailable

9

hex thrust washer

90104042000

Unavailable

10

FLANGED NUT M14X1.5

90104038000

Unavailable

11

Shaft swing arm L=299mm

90104037000

Unavailable

12

BOLT HEX M10X1.25X50 WS10

90104040000

Unavailable

13

BOLT HEX M10X1.25X50 WS10

90104040000

Unavailable

14

chain tension adjuster, right

90110084000

Unavailable

15

HH COLLAR SCREW M6X16 SW8

J025060169

Unavailable

16

chain slider bushing

90604062000

Unavailable

18

SLEEVE CHAIN GUARD

90904070020

Unavailable

19

BOLT FLANGED M5X0.8XL

J025050504

Unavailable

20

Brake line guide rear

94508022000

Unavailable

21

clip nut

90103097000

Unavailable

22

bolt socket-m5x0.8xl 14xprecoa

J912050141

Unavailable

23

Chainguard

94504060000

Unavailable

24

Plug

J650003002300

Unavailable

25

FENDER HUGGER FRONT

94504060010

Unavailable

26

Rubber grommet ignition lock c

93011068010

Unavailable

27

Roundhead screw M6x16

J900000601605

Unavailable

28

SLEEVE FOR CHAIN COVER

90504060050

Unavailable

29

AH SCREW M8X20

90508008001

Unavailable

30

WASHER CHAIN SLIDING GUARD

90504067000

Unavailable

32

screw button head-m6x1xl14xbla

J900000601400

Unavailable

33

chain slider

90804066000

Unavailable

17

pin quick release

J900000600800

Unavailable

35

Rubber grommet

J650002401900

Unavailable

36

bracket cover chain

94604060020

Unavailable

37

Hexagon nut M6

J926060001

Unavailable
